Body Parts Engine Parts Piston 135.0mm For ISUZU OEM 1-12111-673-0

Body Parts Engine Parts Piston 135.0mm For ISUZU OEM 1-12111-673-0

  • Body Parts Engine Parts Piston 135.0mm For ISUZU OEM 1-12111-673-0
  • Body Parts Engine Parts Piston 135.0mm For ISUZU OEM 1-12111-673-0
  • Body Parts Engine Parts Piston 135.0mm For ISUZU OEM 1-12111-673-0
  • Body Parts Engine Parts Piston 135.0mm For ISUZU OEM 1-12111-673-0
Body Parts Engine Parts Piston 135.0mm For ISUZU OEM 1-12111-673-0
Product Details:
Place of Origin: China
Brand Name: JTP / YJL
Model Number: 6RB1
Payment & Shipping Terms:
Minimum Order Quantity: 8pcs
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with green sack for outer packing
Delivery Time: 5-10days
Payment Terms: T/T or western Union
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
OEM: 1-12111-673-0 LENGTH: 137.0mm
CYL: 6 PIN SIZE: 52x105mm
CAR MAKE: ISUZU DIA: 135.0mm
COMP: 82.3mm RING SIZE: 4.0+2.5+4.0mm
SWEPT VOLUME: 13741ccm
High Light:

icon forged pistons

,

cast iron piston

Body Parts For Auto 6RB1 Engine Piston Kit for ISUZU OEM1-12111-673-0



Specifiions:

Details For Dumper Truck 6RB1 Diesel Engine Pistons:

ISUZU
6RB1-TC
Appliion: For Industrial Machine
No. CyI: 6
Diameter: 135.0MM
Piston OEM No. Compress Height Total Length Pin Size Feature
1-12111-673-0 82.3 137.0 52x105 w/al-fin
Piston Ring OEM No. Size1 Size2
  4.5+2.5+4.0
Cylinder Liner OEM No. Size Flange
1-11261-133-0 135.0x141.0x264.0 146.7x6.0
Engine Bearing OEM No. Main Bearing Con Rod Bearing Bush
  1-11510-073 1-12271-028 1-12251-025
Engine Valve (IN) OEM No. Head Diameter Stem Diameter Total Length
1-12551-057-0 46.0 11.0 165.5
Engine Valve (EX) OEM No. Head Diameter Stem Diameter Total Length
1-12552-028-0 45.0 11.0 164.0





Production:
1) Characteristics: Advanced technique & wear proof,high temperature resistant,robust construction,corrosion resistence,etc.
2) Different Treatment: Piston roof MOS2 spraying, Piston roof anodizing, Piston with Graphite Sprayed, Tin coating piston, phosphating piston etc.
3)Guarantee 100000km.

4)Support the piston in a reliable way



Description:


A series of engine models for piston as below, there are many models not include in this sheet, pls also feel free enquiry from us.



Our Stocks for following Japanese multi-function engine parts:

Yanmar: 3TNE84, 3TNE88, 4TNE88, 4TNA94, 4TNA98, 4TNV98
Kubota: D1462-DI, F2302-DI, F2803-B, V3300-B, V3300-B. V3300-DIE, V3300-TIE
Shibaura: N844, N844L, N844T
Isuzu: 3AE1, 3KB1, 3KC1, 3KC2, 3KR1, 3KR2, 3/4LB1, 3/4LC1, 3LD1, 4FB1, 4FC1, 4FD1, 4FE1, 4FG1, 4FG1T, 4JB1, 4JG2, 4LE1, 4LE2, D201
Komatsu:

4D94, 4D94E, 4D95A, 4D95K, 4D95LE-3, 4D95LE, 4D95S, 4D95T, 4D98E, S4/6D95T, 4D105-3, 4D120, 4D130, 6D105-1, 6D105,

6D155, S6D95, S6D102, S6D105-3, S4/6D105-5, S6D108, S6D108, S6D110-2, S6D110-3, S6D110, S6D125, S6D140, S6D170, NH220, NH250

Mazda: WL B2500, S2 E2200, XA E2500, XB E2700, HA E3000, XA T2500, HA T3000, VS T3000, T3500, SL T3500, TF T4000, ZB T4100, TM T4500
Mitsubishi:

4DQ5, K3B, K3F, K3H, K3M, K4C, K4D, K4E, K4E-DI, K4F, K4H, K4M, K4N, K4Q, 4DQ7, L3C, S3E, S3L2, S4E, S4E2, S4F, S4L, S4L2,

S4L2-T, S4Q2, S4Q2-1, S4S, S6E2, S6KT, S6SD

Nissan: BD30, H20, K21, K25, SD22, SD23, SD25, TD23, TD25, TD25T, TD27, TD27T
Toyota: 1DZ-2, 1DZ, 1Z, 2H, 2J, 2Z, 2Z-N, 12Z, 13Z, 14Z

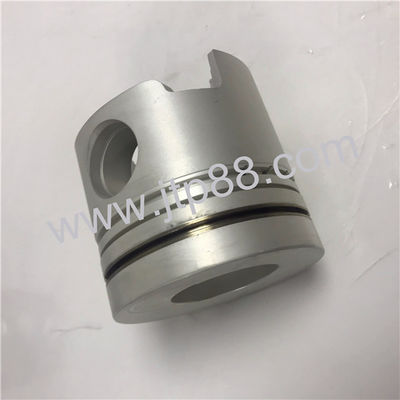

6RB1ENGINE PISTON PICTURE AS BELOW:



Body Parts Engine Parts Piston 135.0mm For ISUZU OEM 1-12111-673-0 0Body Parts Engine Parts Piston 135.0mm For ISUZU OEM 1-12111-673-0 1

Body Parts Engine Parts Piston 135.0mm For ISUZU OEM 1-12111-673-0 2



If you have any question or problem,please feel free to contact us,we will reply you as soon as possible.
