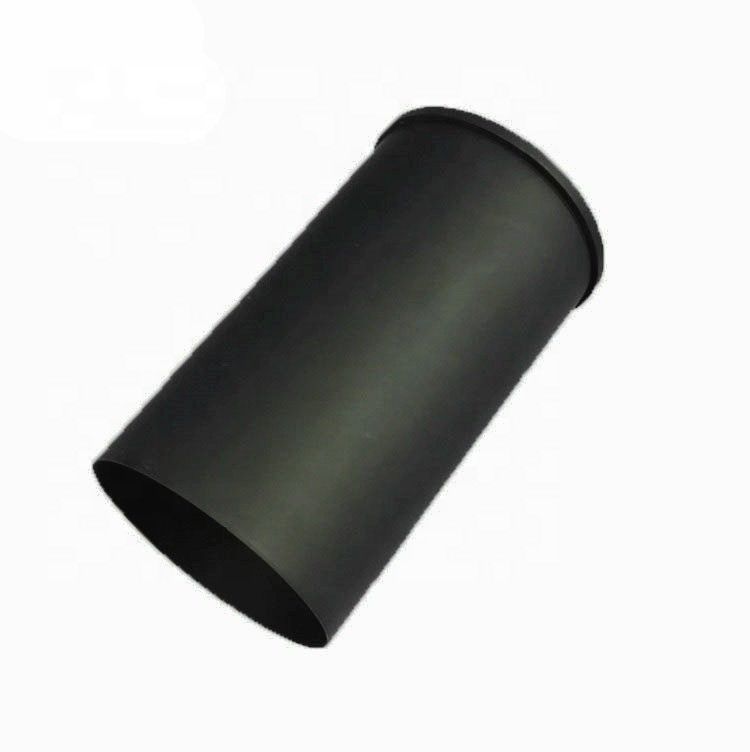

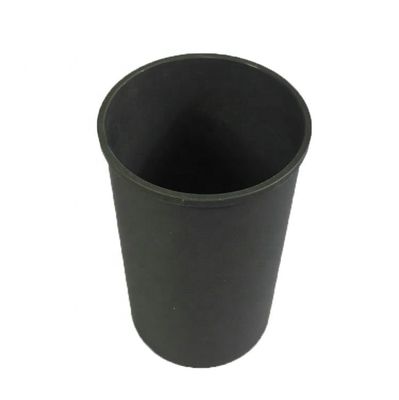

Black Engine Cylinder Liner For Nissan RH8 RH10 Motorcycle Cylinder Liner

Black Engine Cylinder Liner For Nissan RH8 RH10 Motorcycle Cylinder Liner

  • Black Engine Cylinder Liner For Nissan RH8 RH10 Motorcycle Cylinder Liner
  • Black Engine Cylinder Liner For Nissan RH8 RH10 Motorcycle Cylinder Liner
  • Black Engine Cylinder Liner For Nissan RH8 RH10 Motorcycle Cylinder Liner
  • Black Engine Cylinder Liner For Nissan RH8 RH10 Motorcycle Cylinder Liner
Black Engine Cylinder Liner For Nissan RH8 RH10 Motorcycle Cylinder Liner
Product Details:
Place of Origin: China
Brand Name: JTP
Model Number: RH8 RH10
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with green sack for outer packing
Delivery Time: Usually within one week after receive payment
Payment Terms: T/T or western Union
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Type: Dry Cylinder Liner Color: White/ Black
Diameter: 150mm (FF) Total Length: 241mm
Number Of Cylinder: 8 OEM: -
Warranty: 100000 Miles Size: STD
Car Make: Nissan Quality: High Quality
Material: Aluminum Steel Liner Size: 150.0x155.0x246.0mm
Swept Volume: 21205ccm
High Light:

cylinder liner sleeve

,

diesel engine cylinder liner

Cylinder liner for Nissan RH8 RH10 Motorcycle Cylinder Liner for High quality







SPECIFIION:



RH8.RH10
Appliion: TRUCK
No. CyI: 8
Diameter: 150.0 MM
Piston OEM No. Compress Height Total Length Pin Size Feature
12011-63787(R)
12011-97776(L)

Piston Ring OEM No. Size1 Size2
12040-97106 3.0+2.5+4.0
Cylinder Liner OEM No. Size Flange
  150.0x155.0x246.0 161.0x8.0+1.2
Engine Bearing OEM No. Main Bearing Con Rod Bearing Bush
  12213-97160 12117-97075
Engine Valve (IN) OEM No. Head Diameter Stem Diameter Total Length
13201-97010 52.0 10.0 164.4
Engine Valve (EX) OEM No. Head Diameter Stem Diameter Total Length
13202-97064 48.0 10.0 164.4
Valve Seat OEM No.

Valve Guide/Sub Parts OEM No.



ADVANTAGE:



1. High quality and competitive price.



2. Long life span, good sales-after service.



3. 100% new, strict inspection & test.



4. Standard export packing.



5. One year quality warranty.



6. Have strong stock, small order is acceptable



7. Various kinds are selectable with different car models.



8. Improve power and increase torque



9. Improve fuel economy and reduce fuel consumption



10. Reduce waste emissions and reduce environmental pollution




CYLINDER LINER TECHNOLOGY:



Black Engine Cylinder Liner For Nissan RH8 RH10 Motorcycle Cylinder Liner 0



WET CYLINDER:



The loion bores and particularly the running surfaces in the cylinder block must be cleaned carefully and they must



be undamaged. Corroded surfaces must be reworked (used flange liners and outer diameter oversize liners). As this is



done, make sure that the liners moves in easily and that they take up the correct position (the projecting length of the



liner must be in accordance with the regulations of the engine manufacture). After the liner has been installed with the



seat rings that belong to it.



(use slip agent), the cylinder diameter is to be checked particularly in the region of seal rings so as to determine whether



any deformation has been caused by pinched sealing rings. Using the wrong sealing rings (wrong diameter/ wrong



materials) can a narrowing of the cylinder which can lead to engine damage.The cooling system should be pressure



tested after the liners have been installed so as to determine whether there is any leakage before the engine is



started.



SEMI-FINISHED CYLINDER LINER:



The surface which supports the flange must be vertical to the loion bore and it must be sufficiently and evenly beveled. If the



liner flange is unevenly supported it can tear off. After the installation of the liner, which is only semi-finished in its inside



diameter, this cylinder boring is finely bored and then finished by honing until it has the specified dimensions or, in the box of

finely bored liner.It is only finished by honing (tolerance accordingly to DIN ISO H5). The surface of the liner must be flush to the



sealing surface of the cylinder block, if necessary,the block surface and the liner must be finished by surface grinding.





FINISHED CYLINDER LINER:



Before the liner is installed, the loion bore in the cylinder block must be cleaned carefully and must be checked to



ensure the accuracy of the dimensions and to determine whether any distortion has occurred. Out of center or damaged



bores can be reworked for the installation of oversize liners. It is important for this that the loing bore is cylindrical, as



this is what determines the geometrical shape of the inside of the pressed in, thin walled liner.





AIR COOLING CYLINDER LINER:



5)In accordance with the instructions from the engine manufacture, cast iron cylinders or light alloy cylinders are used.



Light alloy cylinders are separated into several groups due to the small installation clearance in the standard cylinder dimensions.







OUR EXHIBITION:



Guangzhou Teikuko Auto Parts Co., Ltd. was founded in 1997, specializes in producing cylinder liners, piston products, covering more than 30 brands, more than 300 kinds of engine type, widely used in various heavy diesel engine (such as Mitsubishi, Isuzu, Nissan, Hino, BMW, Mercedes, Cummins, etc.), Our company has an independent development department, quality control department and laboratory, has a number of highly qualified management personnel and research and development, innovation and strong, All of our products has passed ISO9001: 2000 quality system certifiion. We have now formed the production capacity of annual output value of 500 000 Cylinder / piston, more than 95 percent of products exported to Southeast Asia, Middle East, South America, Africa and other regions, is your reliable partner.





Black Engine Cylinder Liner For Nissan RH8 RH10 Motorcycle Cylinder Liner 1

Black Engine Cylinder Liner For Nissan RH8 RH10 Motorcycle Cylinder Liner 2


PRODUCTION FACILITIES:


1. IF melting furnace system


2. Insulation casting furnace system


3. Automatic casting line


4. Shot blasting machine


5. Fully automatic cutting line



Automatic casting and processing



PRODUCT DETIALS:



Packaging Details All the products adopt independent packaging cartons with detailed goods packing list on carton
Delivery Detail 3-5 days if in stock piston or 45 days for production
Shipping Detail a.by express: Fedex, UPS, DHL,TNT
b. By sea: LCL or FCL cooperating with your appointed shipping agent or our own ones





Black Engine Cylinder Liner For Nissan RH8 RH10 Motorcycle Cylinder Liner 3



DESTRIPTION:


A series of engine models for MITSUBISHI Cylinder liner as below, there are many models not include in this sheet, pls also feel free enquiry from us.



NISSAN CD17 11012-17A02 4 79.0(SF) 178
NISSAN CD17(N) 11012-16A00 4 79.0(SF) 150
NISSAN SD22/SD33 11012-76200 4/6 82.0(SF) 83.0(FF) 176
NISSAN LD20 11012-W7200 4 83.0(SF) 150
NISSAN CD20 11012-V0700 4 83.0(SF) 150
NISSAN TD23 11012-02N10 4 88.0(SF) 89.0(FF) 160.5
NISSAN SD23/SD25 11012-L2002 4 88.0(SF) 89.0(FF) 172
NISSAN K24   4 92.0(FF) 167.5
NISSAN TD25/BD25 11012-44G10 4 92.0(SF) 92.9(FF) 160.5
NISSAN TD27/TD42 11012-43G10 11012-06J10 4/6 95.0(SF) 96.0(FF) 160.5
NISSAN QD32   4 99.0(FF) 160
NISSAN FE6 11012-Z5518 4 108.0(FF) 220
NISSAN FE6(NEW) 11012-Z56024-5 6 108.0(FF) 217
KOMATSU 4D95/6D95 6207-21-2110 4/6 95.0(FF) 180 PF
KOMATSU S6D102 6736-29-2110 6 101.0(FF) 200
KOMATSU S6D110 6138-21-2210 6138-21-2220 6 110.0(FF) 225 PF
ISUZU C190 9-11261-224-1 4 86.0(FF) 163 CHROMED
ISUZU C240 9-11261-230-1 4 86.0(FF) 178 CHROMED
ISUZU C223 5-11261-015-2 4 88.0(FF) 163 CHROMED
ISUZU 4JA1 8-94462-130-0 4 93.0(FF) 156 CHROMED
ISUZU 4JB1 8-94247-861-2 4 93.0(FF) 181 CHROMED
ISUZU 4BA1 9-11261-802-2 4 98.0(FF) 180.5 CHROMED
ISUZU D500 9-11261-257-0 6 98.0(FF) 206.5 CHROMED
ISUZU 4BC1/4BC2 5-11261-014-2 4 102.0(FF) 187 CHROMED
ISUZU 6BB1/6BD1 1-11261-118-0 6 102.0(FF) 204 CHROMED
ISUZU 4BE1 5-11261-016-2 4 105.0(FF) 187 CHROMED
ISUZU 6BF1/6BG1 1-11261-119-0 6 105.0(FF) 203 CHROMED
ISUZU 6HE1 8-94396-332-0 6 110.0(FF) 210
ISUZU 4HF1 8-94389-276-3 4 112.0(FF) 180
ISUZU 6HH1 8-94393-273-1 6 115.0(FF) 209.8
ISUZU 4HG1 8-97351-558-0 4 115.0(FF) 180
ISUZU 6SA1 1-11261-065-3 6 115.0(FF) 216 PF
    1-11261-094-1
ISUZU 6SD1 1-11261-106-2 6 120.0(FF) 239.5
ISUZU 10PE1 1-11261-175-0 10 127.0(FF) 233 PF
ISUZU E120 9-11261-290-0 6 135.0(FF) 264 DCU PF
    1-11261-133-0





FAQ:



1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.

2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.

3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.

4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.

5.How to buy with you?
You can use "Chat now!" or email to us.

6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.

7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.

8.What information should I let you know if I want to get a quotation?

To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

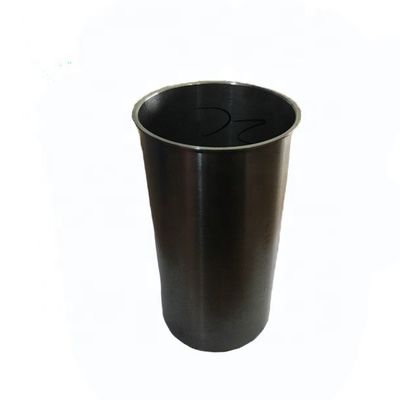

CYLINDER LINER PICTURE AS BELOW:


Black Engine Cylinder Liner For Nissan RH8 RH10 Motorcycle Cylinder Liner 4
