| Place of Origin: | China |
| Brand Name: | JTP |
| Model Number: | C240 |
| Certifiion: | ISO9001:2008;ISO/TS16949:2009 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | 5~10days |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| Surface: | Alfin, Graphite,Tinned | Condition: | 100%new |
|---|---|---|---|
| OEM: | 8-97176866-0 | Diameter: | 88.9mm |
| Length: | 84.7mm | Piston Comp: | 50.7mm |
| Piston Pin Size: | 28*73.5mm | Piston Ring Sieze: | 2.385+2.385+4.75mm |
| Car Make: | KIA | Piston Cylinder: | 4 CYL |
| Appliion: | Engineering Machinery Engine | Material: | Aluminum Alloy |
| Piston Features: | Sn-plated | ||
| High Light: | icon forged pistons,cast iron piston |
||
Glossy Pistons & Rings Set For KIA C240 Forge Diesel Engine Piston 8-97176866-0
SPECIFIIONS:
| Parts name | engine piston |
| Engine type | Diesel |
| Model | C240 |
| Place of Origin | China |
| egory Group | Engine parts |
| Equipment group | Construction equipment |
TERMS OF PAYMENT:
| Payment Term | /T, Western Union |
| Delivery Term | Container shipment, air freight, express |
| Packing | As requested |
| Delivery Time | 3-7 days (Based on order Q'ty) |
PARAMETER OF PISTON :
| CODE NO. | MH0050X | MODEL | C50 |
| CYLINDER NO. | 4 | HEAD TYPE NO. | 4 |
| TOTAL HEIGHT | 50.5 mm | COMP. HEIGHT | 24.5 mm |
| CYLINDER DIA. | 39 mm | ||
| RING | COMP. | OIL | |
| 1.2-2 mm | 2.5-1 mm | ||
| PIN | DIA. | LENGTH | |
| 13 mm | 31 mm | ||
| MOQ | 1000PCS | ||
REMARKS:
PISTON SURFACE TREATMENT
Piston with Tin coating
Tin is coated by exectroanalysis or heat dipping at thickness between 0.001 and 0.003mm. Tin is characterized as soft and oil-friendly which improves running-in efficiency of piston and liner.
Pistons with Phosphating
The phosphating is aimed to improve initial running-in performance. The phosphating layer is easy to wear off and helpful to improve running-in.
Piston roof anodizing
The piston roof is anodized by electrobath, forming thin layer of Al O . This treatment will improve heat resistance, heat conductivity and anticorrosion, it helps prevent piston roof burn-up.
Graphipe printing and spratyed at piston skirt
Graphite is characterized as good lubriing, which helps lubricant adhering to coating surface.
PRODUCT RANGE:
| OEM No. | Model | CYL DIA | OD*L |
| AA100-11-101 | TOWNER | 70 | 18 60 |
| PRIDE | 68 | 20 52 | |
| PRIDE | 71 | 20 52 | |
| OKKY1-11-SAO | PRIDE 1.3 | 71 | 20 52 |
| OK480-11-SAO | K2700 | 92 | 31.75 75 |
| OK6ZI-II-SAO | JS | 94.5 | 30 76 |
| OK4Y2-11SAO | K3600AL | 100 | 34 82 |
| K4YO-11-SAO | K3500AL | 100 | 34 82 |
| OK7Z1-11-SAO | JT3.0 | 98 | 30 79 |
| DOHC | 78 | 20 61 | |
| SOHC | 78 | 20 61 | |
| OK7ZO-11-SAO | K2400 | 92 | 28 75 |
| OEM No. | Model | CYL DIA | OD*L |
| 23410-02700 | ATOS 1.0 | 66 | 17 46.5 |
| 23410-02470 | ATOS 1.1 | 67 | 17 46.5 |
| 23410-22400 | ACCENT/G4EB | 75.5 | 18 47.5 |
| 23410-22612 | VERNA/G4EK | 75.5 | 18 47.5 |
| 1.6 | 77.5 | 20 59 | |
| 23410-26111 | ELANTRA 1.6/G4ED | 76.5 | 18 47 |
| 1.8 | 82 | 20 59 | |
| 2 | 82 | 20 59 | |
| SONATA 2.0 NEW | 86 | ||
| SONATA 2.4 NEW | 88 | ||
| SANTE FE 3CAAD | 88 | ||
| 69.6 | 69.5 | 23 57 | |
| 79.47 | 79.5 | 26 64 | |
| 23410-41200 | K1/D4AF | 104 | 34 84 |
| 23410-42703 | D4BB | 91.1 | 29 75 |
| 23410-42411 | D4BA | 91.1 | 29 75 |
| 23410-42544/42411 | D4BH | 91.1 | 29 75 |
| T1 | 91.1 | 29 74 | |
| 23410-22260 | G4EH | 71.5 | 18 47.3 |
| 23410-22511 | ACCENT 1.5 | 75.5 | 18 47 |
| 23410-2B000 | AVANTE 1.6 | 77 | 18 52 |
| VECTRA 1.6 | F16D | 79 | 18 55 |
| 23410-27924 | ACCENT/D4EA | 83 | 28 65 |
| ELANTRA 1.8 | 81 | 20 49 | |
| SONATA 2.0 | 86 | 21 60 | |
| SONATA 2.4 | 88 | 21 60 |
OUR FACTORY:
Guangzhou Teikuko Auto Parts Co., Ltd. was founded in 1997, specializes in producing cylinder liners, piston products, covering more than 30 brands, more than 300 kinds of engine type, widely used in various heavy diesel engine (such as Mitsubishi, Isuzu, Nissan, Hino, BMW, Mercedes, Cummins, etc.), Our company has an independent development department, quality control department and laboratory, has a number of highly qualified management personnel and research and development, innovation and strong, All of our products has passed ISO9001: 2000 quality system certifiion. We have now formed the production capacity of annual output value of 500 000 Cylinder / piston, more than 95 percent of products exported to Southeast Asia, Middle East, South America, Africa and other regions, is your reliable partner.
OUR SERVICE:
1.OEM Manufacturing welcome:Product,Package...
2.Sample order.
3.We will reply you for your inquiry in 24 hours.
4.After sending,we will track the products for you once every two days
5.If you have any questions about the problem,contact with us,we will offer the solve way for you.
6.More payment method for your choice
WHY CHOOSE US?
1. As the 2ND-largest Factory in China, we will help you to cut down cost.
2. More professional with more than 18 years' experience, mainly doing OEM.
3. Full piston varieties, Japanese, Korean, European, American, Chinese engine, etc.
4. Diameter of pistons from 30mm-500mm
5. Good packing and short delivery time

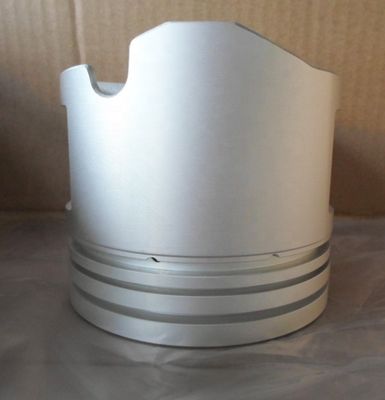

ENGINE PISTON PICTURE AS BELOW:
WELCOME YOUR ENQUIRY, WE WILL ALWAYS BE HERE SERVICE FOR YOU!
