| Brand Name: | JTP |
| Model Number: | 8M21 |
| Certifiion: | ISO9001:2008;ISO/TS16949:2009 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | One month or one week if we have stock |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| Place Of Origin: | Guangzhou, China | OEM: | ME996163 |
|---|---|---|---|
| Material: | Steel/ Ductile Cast Iron/ Alloy Cast Iron | 1st Ring: | 4.45mm |
| 2nd Ring: | 2.95mm | 3rd Ring: | 6.0mm |
| Diameter: | 145mm | RIK Set No.: | 20052 21071 |
| Cyl No.: | - | Quality: | 100% Professional Test |
| Car Make: | Mitsubishi | Type: | Piston Ring |
| High Light: | cast iron piston rings,piston rings set |
||
Mitsubishi Engine Piston Ring 8M21 Cast Iron Diesel Engine Parts Piston Ring ME996163
SPECIFIIONS:
| MITSUBISHI 8M21 Appliion: TRUCK BUS No. CyI: 8 Diameter: 146.0MM |
|||||
| Piston | OEM No. | Compress Height | Total Length | Pin Size | Feature |
| ME161300 | 82.7 | 148.0 | 50x112 | w/al-fin,oil-cooled | |
| Piston Ring | OEM No. | Size1 | Size2 | ||
| ME996167 | 3.3DK+3.0+3.0+4.0 | ||||
| Cylinder Liner | OEM No. | Size | Flange | ||
| 150.0x169.0x257.5 | 177.5x12.0+1.4 | ||||
| Engine Bearing | OEM No. | Main Bearing | Con Rod Bearing | Bush | |
| ME997681 | ME093763 | ||||
| Engine Valve (IN) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| 50.0 | 10.0 | 185.2 | |||
| Engine Valve (EX) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| 46.0 | 10.0 | 186.4 | |||
| Valve Seat | OEM No. | ||||
| Valve Guide/Sub Parts | OEM No. | ||||
ABOUT THE PISTON RING:
Piston ring helps perform incredible combustion and reduced oil consumption in the engines. To ensure high-quality and best performance, we offer a complete range of piston rings manufactured of Grey Cast Iron, Alloyed Cast iron, Spheroidal Graphite Iron and High Strength Steel.
NUMBER OF PISTON RINGS:
In order to reduce the frictional work, increase the mechanical efficiency, reduce the height of the ring zone and shorten the compression height and total height of the piston, the number of piston rings is decreasing. From the 5-6 ring groove in the 1930s to the 2~3 ring groove.
It has been found that it is not necessary to have more than one compression ring, because once the upper compression ring fails, the other compression ring can not seal the gas of the combustion chamber so that it does not leak into the crankbox, nor can it control the oil to squat up the cylinder wall. Into the combustion chamber. Therefore, instead of increasing the number of piston rings, it is better to take measures to improve the performance of the piston ring. A compression ring and two oil ring grooves are used to ensure the sealing gas and the control of the oil.
OUR PACKING :
Standard export hard cartons to assure the safety during the transformation.
Put foam bag inside to protect the products.
We can offer neutral clean box, original box or customer's special brand box.
Custom-made boxes are only avaliable for big order with large quantity.
OUR SHIPPING:
Ship by air or express for the products with small volumn or little amount. Ship by vessel for large volumn products.
Please inform your shipping methods when place an order, or we can choose the cheapest method for you from our own forwarders.
For our stock products, we can ship to you within 3 days, for the products out of stock, we will inform you advance.
Please note that the shipping charge for brand products would be much expensive than neutral products.
DESTRIPTION:
| Engine | c.c. | Vehicle Model | TEIKUKO Product Code |
| Chassis Type | TEIKUKO Series No. | ||
| 4G92 | 1597 | Lancer | TEIKUKO-AG-20118 |
| 4G67 | 1836 | Galant (sigma) | TEIKUKO-AG-20119 |
| Eterna | |||
| Eterna SAVA | |||
| 4G52 | 1995 | Galant (sigma) Sapporo | TEIKUKO-AG-20120 |
| Celeste | |||
| Jeep | |||
| A57 A78 A115 | |||
| A123 J58 | |||
| 4G63 | 1997 | Galant(sigma).Sapporo | TEIKUKO-AG-20121 |
| A163 | |||
| A164 | |||
| For Leaded Gasoline | TEIKUKO-AG-20122 | ||
| Lancer | TEIKUKO-AG-20123 | ||
| Eclipse | |||
| Chariot RVR | |||
| G63B | 1997 | For Lead-free Gasoline | TEIKUKO-AG-20124 |
| G63B T/C | Galant (sigma) | ||
| Chariot Paiero | |||
| 4G64 | 2350 | For Leaded Gasoline | TEIKUKO-AG-20125 |
| 4G53 | 2384 | Jeep Canter Rosa | TEIKUKO-AG-20126 |
| FC211 BC211 | |||
| J26 J38 J46 J56 | |||
| 4G54B | 2555 | Jeep | TEIKUKO-AG-20127 |
| Debonair | |||
| Galant (sigma)Sapporo | |||
| Dodge Challenger | |||
| 6G72 | 2972 | 3000GT | TEIKUKO-AG-20128 |
| DOHC | |||
| 6G72 | 2972 | Sigma | TEIKUKO-AG-20129 |
| 6G74 | 3500 | Debonair | TEIKUKO-AG-20130 |
| D400 | TEIKUKO-AD-60201 | ||
| K4E | 1415 | TEIKUKO-AD-60202 | |
| 4D65 | 1795 | Mirage | TEIKUKO-AD-60203 |
| 4D68NA | 1998 | Galant | TEIKUKO-AD-60204 |
| Proton | |||
| 4DQ5 | 2084 | Canter | TEIKUKO-AD-60205 |
| For Lift | |||
| FD15 | |||
| Canter | TEIKUKO-AD-60206 | ||
| 4D55T | 2346 | Galant | TEIKUKO-AD-60207 |
OUR FACTORY :
We are a professional R&D and production manufacturer in marine engine parts, manifold, piston and cylinder liners. Our products have various industrial appliions in marine engine, automotive, engineering vehicle, agricultural vehicle and locomotive. We can make most cylinder kits according to customers’ special need.
We have been certified to ISO9001:2008;ISO/TS16949:2009, continuously invests in process and quality improvement. We are always committed to improve all aspects of our business, from people, equipment to the entire production programs. Our willing is to always provide the best quality piston and cylinder liner for your high-performance engines.
PRODUCT ADVANTAGE:
1: Original material standard according OEM technical drawing
2: Premium quality standard guaranteed
3: Competitive and reasonable price
4: Long lasting and reliable working life time
5: Long exporting history
6: Positive feedback from abroad market
7: Able to produce according your specifiion with technical drawing
8: Standard packing or according your specifiion requested
9: Provide product guarantee period
10: Sample order be acceptable
FAQ:
1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.
2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.
3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.
4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.
5.How to buy with you?
You can use "Chat now!" or email to us.
6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.
7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.
8.What information should I let you know if I want to get a quotation?
To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

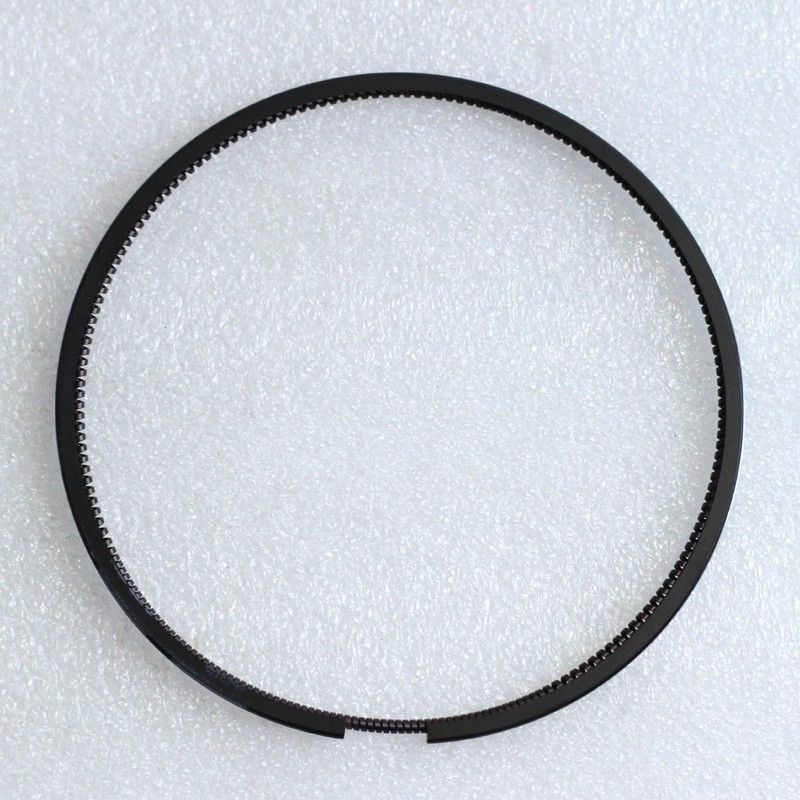

PISTON RING PICTURE AS BELOW:
