| Place of Origin: | China |
| Brand Name: | JTP |
| Model Number: | 8DC9 |
| Certifiion: | ISO9001:2008;ISO/TS16949:2009 |
| Minimum Order Quantity: | 8pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | One month or one week if we have stock |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 2000pcs per month |
| Product Name: | PISTON | Number Of Cylinder: | 8 |
|---|---|---|---|
| Bore: | 135mm | COMP.H: | 88mm |
| Length: | 153mm | Pin Size: | 50mm |
| Warranty: | 1 Year | Quality: | High Performance |
| Car Make: | Mitsubishi | Engine Type: | Diesel |
| High Light: | car engine piston,cast iron piston |
||
Specifiions:
| ENGINE PISTON | ENGINE MODEL | 8DC9 |
| Common Materials | Forged Aluminum Alloy 4032 & 2618 | |
| Characteristics | Resistance to abrasions & burn characteristics | |
| Surface Treatment | High wear resistance, perfect Storage oil and performance surface treatment |
Description:
A series of engine models for MITSUBISHI as below, there are many models not include in this sheet, pls also feel free enquiry from us.
| MITSUBISHI | 6DS7 | ME024402 | 6 | 98 | 105.3 | 61 | 32 |
| MITSUBISHI | 6D31 | ME012858 | 6 | 100 | 110.7 | 60.8 | 34 |
| MITSUBISHI | 4D31T | ME012155 | 4 | 100 | 110.7 | 60.7 | 34 |
| MITSUBISHI | 6D14 | ME032742 | 6 | 110 | 116.15 | 71 | 38 |
| MITSUBISHI | 6D14T | ME072047 | 6 | 110 | 116.15 | 71.1 | 38 |
| MITSUBISHI | 6DB1 | 30017-93101 | 6 | 110 | 152.5 | 77.5 | 40 |
| MITSUBISHI | 6DB1P | 30017-70100 | 6 | 110 | 139.5 | 77.4 | 40 |
| MITSUBISHI | 6D15 | ME032593 | 6 | 113 | 115.8 | 70.7 | 38 |
| MITSUBISHI | 6D15 | ME032870 | 6 | 113 | 116.1 | 71 | 38 |
| MITSUBISHI | 6D15T | ME072055 | 6 | 113 | 116.1 | 71 | 38 |
| MITSUBISHI | 6D16 | ME072064 | 6 | 118 | 116.1 | 71 | 38 |
| MITSUBISHI | 6D16T | ME072062 | 6 | 118 | 116 | 71 | 38 |
| MITSUBISHI | 6D16T | ME072065 | 6 | 118 | 116 | 71 | 38 |
| MITSUBISHI | 6D22 | ME052809 | 6 | 130 | 158.2 | 83.1 | 50 |
| MITSUBISHI | 6D22T | ME052902 | 6 | 130 | 158.2 | 83.1 | 50 |
| MITSUBISHI | 6D22T | ME052664 | 6 | 130 | 158.2 | 83.1 | 50 |
| MITSUBISHI | 6D22T-4MM | ME052792 | 6 | 130 | 158.2 | 83.1 | 50 |
| MITSUBISHI | 8DC81 | ME062422 | 8 | 135 | 143 | 78 | 45 |
| MITSUBISHI | 8DC90 | ME062408 | 8 | 135 | 153 | 88 | 50 |
| MITSUBISHI | 8DC91 | ME062336 | 8 | 135 | 153 | 88 | 50 |
| MITSUBISHI | 8DC91T | ME090167 | 8 | 135 | 153 | 88.1 | 50 |
| MITSUBISHI | 8DC92 | ME065579 | 8 | 135 | 153.1 | 88.1 | 50 |
| MITSUBISHI | 8DC92 | ME091048 | 8 | 135 | 153.1 | 88.1 | 50 |
| MITSUBISHI | 8DC10-4MM | ME091049 | 8 | 138 | 153.1 | 88.1 | 50 |
| MITSUBISHI | 8DC10-6MM | ME090146 | 8 | 138 | 153.1 | 88.1 | 50 |
| MITSUBISHI | 8DC11(5) | ME092922 | 8 | 142 | 153 | 88 | 50 |
| MITSUBISHI | 8DC11(4) | ME091050 | 8 | 142 | 153 | 88 | 50 |
| MITSUBISHI | 6D20 | ME052050 | 6 | 125 | 155.5 | 50 | |
| MITSUBISHI | 8DC2W | 31217-77101 | 8 | 130 | 145 | 45 | |
| MITSUBISHI | 8DC2A | 31217-50105 | 8 | 130 | 145.2 | 45 | |
| MITSUBISHI | 8DC4 | ME062273 | 8 | 130 | 145.2 | 45 | |
| MITSUBISHI | S6K | 6 | 102 | 97.7 | 34 | ||
| MITSUBISHI | 6D34 | ME014160 | 6 | 104 | 112 | 36 | |
| MITSUBISHI | 6D34T | ME220454 | 6 | 104 | 112 | 36 |
Common material:
Aluminum Alloy (lighter in weight and higher thermal conductivity);Senior Cast Iron (heavier in weight, greater strength and resistance to wear); Heat-resisting Steel, Hypereutectic Al-Si Alloy, Hypoeutectic Al-Si Alloy, Eutectic Al-Si Alloy, Multi-Cast Iron and Ductile-Cast Iron etc.
Produce process:
Casting, Forging, Melted Metal Squeezing.
Piston features:
Phosphating, Top Oxidization, Top Molybdenium Disulfide, Sn(tin)Plated on Skirt, Graphite on Skirt, Alfin, Double Alfin, None Alfin, Steel Pieces, Drilling, Oil-cooling Channel, Three or Four Ring Grooves, Ceramic Spraying and Hard Iron Plating, etc.
Treatment:
Sn Plated, Skirt Printing Graphite, Phosphating, Spray MoS2, Top Anodic Oxidation.
Competitive Advantage:
1. 100% New and quality guaranteed
2. in stock & fast delivery
3. full range items covering
4. 1 year Waranty
5. Service: most professional, efficient and reliable service
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

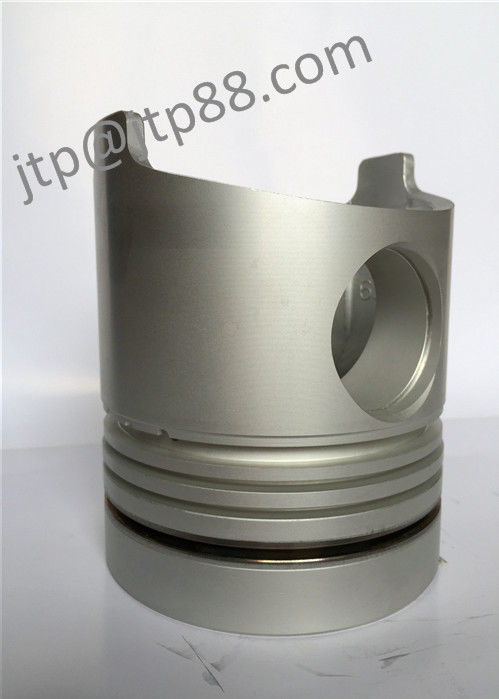

8DC9 PISTON SET PICTURE AS BELOW:
