| Place of Origin: | China |
| Brand Name: | JTP / YJL |
| Model Number: | 6WA1 |
| Certifiion: | ISO9001:2008;ISO/TS16949:2009 |
| Minimum Order Quantity: | 8pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | 5-10days |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 2000pcs per month |
| OEM: | 1-12111-907-1 | LENGTH: | 143.3mm |
|---|---|---|---|
| CYL: | 6 | PIN SIZE: | 56x104.5mm |
| RING SIZE: | 3.8DK+3.0+3.0+4.0mm | CAR MAKE: | ISUZU |
| DIA: | 132.9mm | COMP: | 93.0mm |
| High Light: | icon forged pistons,cast iron piston |
||
Details For Truck 6WA1 Diesel Engine Parts Piston 1-12111-907-1:
6WA1 Appliion: TRUCK No. CyI: 6 Diameter: 132.9MM |
|||||
| Piston | OEM No. | Compress Height | Total Length | Pin Size | Feature |
| 1-12111-907-1 | 93.0 | 143.3 | 56x104.5 | w/al-fin | |
| Piston Ring | OEM No. | Size1 | Size2 | ||
| 1-12121-139-0 | 3.8DK+3.0+3.0+4.0 | ||||
| Cylinder Liner | OEM No. | Size | Flange | ||
| 1-11261-362-1 | 132.9x137.0x266.0 | 143.7x6.0 | |||
| Engine Bearing | OEM No. | Main Bearing | Con Rod Bearing | Bush | |
| 1-11510-093 | 1-12271-072 | 1-12251-037 | |||
| Engine Valve (IN) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| 1-12551-145-0 | 43.0 | 10.0 | 187.6 | ||
| Engine Valve (EX) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| 1-12552-084-0 | 42.0 | 10.0 | 187.7 | ||
Our pistons have lower oil consumption and should be absolutely safe – and this even under extreme conditions such as hot and cold load capacity testing and continuous running under thermal shock.
Description:
A series of engine models for ISUZU piston as below, there are many models not include in this sheet, pls also feel free enquiry from us.
| ISUZU | C240PK | 4 | 86 | 84.5 | 51.5 | 27 | |
| ISUZU | 4JA1 | 8-94152712-1 | 4 | 93 | 87.6 | 47.8 | 31 |
| ISUZU | 4JB1 | 8-94152711-0 | 4 | 93 | 92 | 51.8 | 31 |
| ISUZU | 4BD1 | 8-94422975-1 | 4 | 102 | 98 | 58.9 | 35 |
| ISUZU | 4BC2 | 5-12111-230-4 | 4 | 102 | 98 | 58.9 | 35 |
| ISUZU | 6BB1 | 5-12111-013-0 | 6 | 102 | 112.3 | 62.7 | 35 |
| ISUZU | 6BD1T | 5-12111-068-2 | 6 | 102 | 104.3 | 58.7 | 35 |
| ISUZU | 4BE1 | 8-94438989-1 | 4 | 105 | 95.7 | 56.4 | 35 |
| ISUZU | 6BG1 | 1-12111-323-2 | 6 | 105 | 95 | 55.5 | 35 |
| ISUZU | 6BF1 | 1-12111-345-0 | 6 | 105 | 110 | 58.75 | 35 |
| ISUZU | 10PA1 | 1-12111-154-1 | 10 | 115 | 113.2 | 75.2 | 38 |
| ISUZU | 10PB1 | 1-12111-217-0 | 10 | 115 | 104 | 67.8 | 38 |
| ISUZU | 10PC1 | 1-12111-419-1 | 10 | 119 | 104 | 67.7 | 38 |
| ISUZU | 10PD1 | 1-12111-549-3 | 10 | 119 | 106.5 | 67.5 | 43 |
| ISUZU | DH100 | 9-12111-742-3 | 6 | 120 | 150.83 | 77.8 | 45 |
| ISUZU | 6QA1 | 1-12111-388-1 | 6 | 125 | 136 | 83 | 46 |
| ISUZU | 6RB1 | 1-12111-437-0 | 6 | 135 | 142.9 | 82.1 | 50 |
| ISUZU | 6BG1(3R) | 6 | 105 | 94.5 | 35 | ||
| ISUZU | 6BG1(4R) | 6 | 105 | 94.2 | 35 | ||
| ISUZU | 4HG1 | 8-97183666-0 | 4 | 115 | 104.4 | 36 | |
| ISUZU | 6SD1 | 1-12111-569-0 | 6 | 120 | 117 | 43 | |
| ISUZU | 6SD1 | 6 | 120 | 117 | 43 | ||
| ISUZU | DA120 | 6 | 100 | 125 | 34 | ||
| ISUZU | DA640 | 6 | 102 | 125 | 36 | ||
| ISUZU | 6HE1 | 6 | 110 | 119.8 | 40 | ||
| ISUZU | 4HF1 | 8-97095-585-1 | 4 | 112 | 94.5 | 36 | |
| ISUZU | 8-97176-655-0 | ||||||
| ISUZU | 4HF1T | 5-87813-391-0 | 4 | 112 | 94.5 | 36 | |
| ISUZU | 8-97176-656-0 |
Transportation:

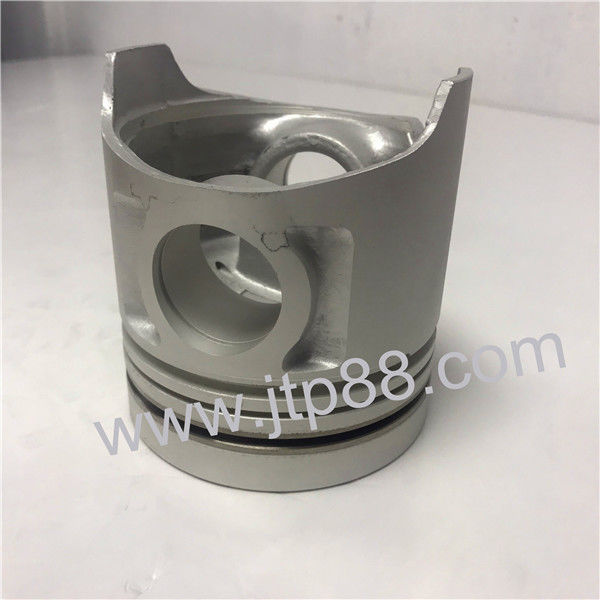

6WA1 ENGINE PISTON PICTURE AS BELOW:
