| Place of Origin: | China |
| Brand Name: | JTP |
| Model Number: | JF800 |
| Certifiion: | ISO9001:2008;ISO/TS16949:2009 |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | 5~10days |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| Material: | Brass,copper,bronze | Condition: | 100%new |
|---|---|---|---|
| Size: | Max OD 200mm | Car Made: | Diesel Engine |
| Type: | Flanged | OEM: | STD |
| Warranty: | 1year | Quality: | High Performance |
| Shape: | Customized | Process: | Machining Or Sintering |
| Equipment: | CNC,lathe | ||
| High Light: | Steel Sleeve Bushings,Bronze Flanged Bushings |
||
| Material | Brass | Bronze | Bronze | Bronze | Bronze |
| CuZn25Al6Mn4Fe3 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 | CuSn10Pb10 | |
| Density | 8 | 8.9 | 7.8 | 8.9 | 8.9 |
| Yield pointN/mm2 | >450 | >90 | >260 | >150 | >100 |
| Tensile strengthN/mm2 | >750 | >200 | >600 | >260 | >210 |
| Elongation % | >12 | >15 | >10 | >8 | >8 |
| Hardness HB | >210 | >70 | >150 | >95 | >75 |

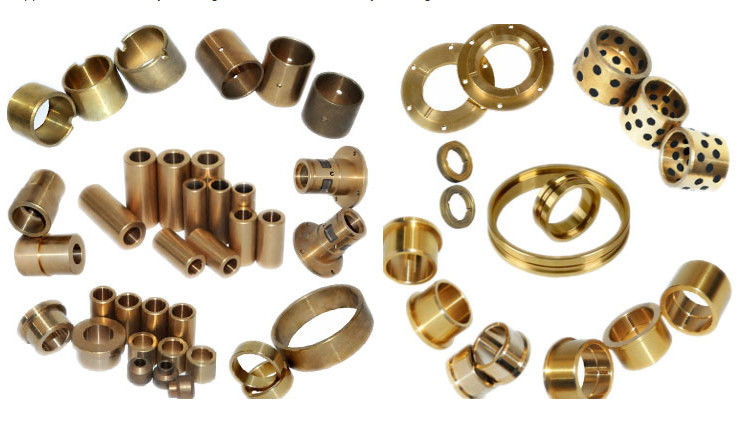

PRODUCT SHOW:
Sintered Bushing Performance:
=>Chemical Composition: CuSn6Zn6Pb3, Cu90Sn10,CuSn6Zn6Pb0,Fe,Cu-Fe
=>Working Temperature: Between -100 with +200
=>Density & Gravity: 6.4-7.5g/cm3
=>Oil Impregnation Rate: 18% - 23%
=>Graphite content Rate: 1% - 3%Max
=>Hardness: HB30-75 for Bronze ; HB 35-150 for Iron
Sintered Bushing Advantage:
1.With lower wear rate and long lifetime.
2.Provides maintenance free operation & Dry working circustmance.
3.Suited for high static and dynamic load.
4.With low and smoothly coefficient of friction and without stick-slip effects.
5.Suitable for dirty, impact and edge load.
6.Better thermal conductivity property.
Product Range:
Sleeve Bearings:
| Model No. | Min. I.D. | Min.O.D. | Max.I.D. | Max.O.D. | Max. Length |
| DU,SF-1 | 6mm | 8mm | 300mm | 305mm | 100mm |
| DX,SF-2 | 10mm | 12mm | 300mm | 305mm | 100mm |
| JF800 | 10mm | 12mm | 173mm | 180mm | 100mm |
| FB090 | 10mm | 12mm | 300mm | 305mm | 100mm |
| FB092 | 10mm | 12mm | 300mm | 305mm | 100mm |
| JDB,JCB | 8mm | 12mm | 160mm | 180mm | 150mm |
| FU | 1.5mm | 3mm | 50mm | 70mm | 70mm |
| JGB | 1.5mm | 3mm | 300mm | 320mm | 100mm |
Flange Bearings:
| Model No. | Min. I.D. | Min.O.D. | Max.I.D. | Max.O.D. | Min.F.D. | Max.F.D. | Max. Length |
| DU,SF-1 | 6mm | 8mm | 40mm | 44mm | 12mm | 53mm | 40mm |
| JF-800 | 40mm | 46mm | 95mm | 105mm | 60mm | 144mm | 127mm |
| FB090 | 25mm | 28mm | 300mm | 305mm | 35mm | 340mm | 90mm |
| FB092 | 25mm | 28mm | 300mm | 305mm | 35mm | 340mm | 90mm |
| JDB | 10mm | 14mm | 120mm | 140mm | 22mm | 170mm | 100mm |
| FU | 6mm | 12mm | 50mm | 60mm | 14mm | 70mm | 70mm |
| JGB | 6mm | 12mm | 300mm | 320mm | 35mm | 340mm | 130mm |
Our advance:
1.Profession in diesel engine parts
2.Provide the most resonable service
3.The most compeitive price&goods
4The completly engine model and parts
5.Manage to finish the client's resonable demand
| Basic type | Unit |
B-21 High Load |
B-06 Standard |
B-03 General |
B-01 Economic |
| Static load | Mpa | 240 | 240 | 240 | 150 |
| Dynamic load | Mpa | 160 | 150 | 100 | 30 |
| Density | g/cm3 | 2.0 | 2.0 | 2.0 | 2.0 |
| Max.speed | m/s | 0.20 | 0.20 | 0.20 | 0.10 |
| Max.PV | MPa*m/s | 2.0 | 2.0 | 1.8 | 1.6 |
| Coefficient of friction | - | 0.03~0.12 | 0.03~0.12 | 0.03~0.12 | 0.15~0.25 |
| Working Temp. | ℃ | ±180 | ±180 | ±180 | ±120 |
| SHORT-TIME WORK TEMPERATURE | ℃ | -180~+230 | -180~+230 | -180~+230 | -120~+140 |
| Radial compressive strength | Mpa | 550 | 550 | 550 | 200 |
| Hardness | HRM | 95 | 95 | 95 | 85 |
| Linear thermal expansion factor | Um/m℃ | 13×10-6 | 13×10-6 | 13×10-6 | 30×10-6 |
| Color | - |
Black
|
Black
|
Black
|
Black
|
OUR SHIPPING:
CONROD BUSHING PICTURE BE BELOW:
WELCOME YOUR ENQUIRY, WE WILL ALWAYS BE HERE SERVICE FOR YOU!
