| Place of Origin: | China |
| Brand Name: | JTP |
| Model Number: | K19 |
| Certifiion: | ISO9001:2008;ISO/TS16949:2009 |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | 5~10days |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| Material: | Brass,copper,bronze | Condition: | 100%new |
|---|---|---|---|
| Car Made: | Diesel Engine | Type: | Flanged |
| OEM: | 3970951 3913990 3901470 | Warranty: | 1year |
| Quality: | Guaranteed | Shape: | Customized |
| Process: | Machining Or Sintering | Packing: | Customers' Requirement |
| Size: | Standard Size | ||
| High Light: | Steel Sleeve Bushings,Bronze Flanged Bushings |
||
Diesel engine Connecting rod bushing 3913990 Brass Cooper bush for 6CT |
|||
| Part name | Connecting Rod Bushing | Part number | 3913990 |
| Brand | Original | Quality | high level |
| MOQ | one set | Engine type | Diesel |
| sample | accepted | warranty | 6 months |
| place of origin | Guangzhou | Packing | carton box,wooden box or as requested |
| shipping time | 3-7days after receiving the payment | Payment |
T/T Western Union |
| Packing | 1.OEM Genuine Packing | |
| 2. Neutral Packing | ||
| 3. According to Customer’s Request | ||
|
Shipping |
1.By Express | DHL, FedEx, UPS, TNT, ESM etc. |
| 2. By Air | We can ship to any port in China with 3 days | |
| 3. By Sea | Shanghai, Guangzhou, Qingdao, Shenzhen | |
| Delivery Time | Within 10 Working Days | |
PRODUCT SHOW:
Sintered Bushing Performance:
=>Chemical Composition: CuSn6Zn6Pb3, Cu90Sn10,CuSn6Zn6Pb0,Fe,Cu-Fe
=>Working Temperature: Between -100 with +200
=>Density & Gravity: 6.4-7.5g/cm3
=>Oil Impregnation Rate: 18% - 23%
=>Graphite content Rate: 1% - 3%Max
=>Hardness: HB30-75 for Bronze ; HB 35-150 for Iron
Sintered Bushing Advantage:
1.With lower wear rate and long lifetime.
2.Provides maintenance free operation & Dry working circustmance.
3.Suited for high static and dynamic load.
4.With low and smoothly coefficient of friction and without stick-slip effects.
5.Suitable for dirty, impact and edge load.
6.Better thermal conductivity property.
Product Range:
Sleeve Bearings:
| Model No. | Min. I.D. | Min.O.D. | Max.I.D. | Max.O.D. | Max. Length |
| DU,SF-1 | 6mm | 8mm | 300mm | 305mm | 100mm |
| DX,SF-2 | 10mm | 12mm | 300mm | 305mm | 100mm |
| JF800 | 10mm | 12mm | 173mm | 180mm | 100mm |
| FB090 | 10mm | 12mm | 300mm | 305mm | 100mm |
| FB092 | 10mm | 12mm | 300mm | 305mm | 100mm |
| JDB,JCB | 8mm | 12mm | 160mm | 180mm | 150mm |
| FU | 1.5mm | 3mm | 50mm | 70mm | 70mm |
| JGB | 1.5mm | 3mm | 300mm | 320mm | 100mm |
Flange Bearings:
| Model No. | Min. I.D. | Min.O.D. | Max.I.D. | Max.O.D. | Min.F.D. | Max.F.D. | Max. Length |
| DU,SF-1 | 6mm | 8mm | 40mm | 44mm | 12mm | 53mm | 40mm |
| JF-800 | 40mm | 46mm | 95mm | 105mm | 60mm | 144mm | 127mm |
| FB090 | 25mm | 28mm | 300mm | 305mm | 35mm | 340mm | 90mm |
| FB092 | 25mm | 28mm | 300mm | 305mm | 35mm | 340mm | 90mm |
| JDB | 10mm | 14mm | 120mm | 140mm | 22mm | 170mm | 100mm |
| FU | 6mm | 12mm | 50mm | 60mm | 14mm | 70mm | 70mm |
| JGB | 6mm | 12mm | 300mm | 320mm | 35mm | 340mm | 130mm |
Our advance:
1.Profession in diesel engine parts
2.Provide the most resonable service
3.The most compeitive price&goods
4The completly engine model and parts
5.Manage to finish the client's resonable demand
| Basic type | Unit |
B-21 High Load |
B-06 Standard |
B-03 General |
B-01 Economic |
| Static load | Mpa | 240 | 240 | 240 | 150 |
| Dynamic load | Mpa | 160 | 150 | 100 | 30 |
| Density | g/cm3 | 2.0 | 2.0 | 2.0 | 2.0 |
| Max.speed | m/s | 0.20 | 0.20 | 0.20 | 0.10 |
| Max.PV | MPa*m/s | 2.0 | 2.0 | 1.8 | 1.6 |
| Coefficient of friction | - | 0.03~0.12 | 0.03~0.12 | 0.03~0.12 | 0.15~0.25 |
| Working Temp. | ℃ | ±180 | ±180 | ±180 | ±120 |
| SHORT-TIME WORK TEMPERATURE | ℃ | -180~+230 | -180~+230 | -180~+230 | -120~+140 |
| Radial compressive strength | Mpa | 550 | 550 | 550 | 200 |
| Hardness | HRM | 95 | 95 | 95 | 85 |
| Linear thermal expansion factor | Um/m℃ | 13×10-6 | 13×10-6 | 13×10-6 | 30×10-6 |
| Color | - |
Black
|
Black
|
Black
|
Black
|
OUR SHIPPING:

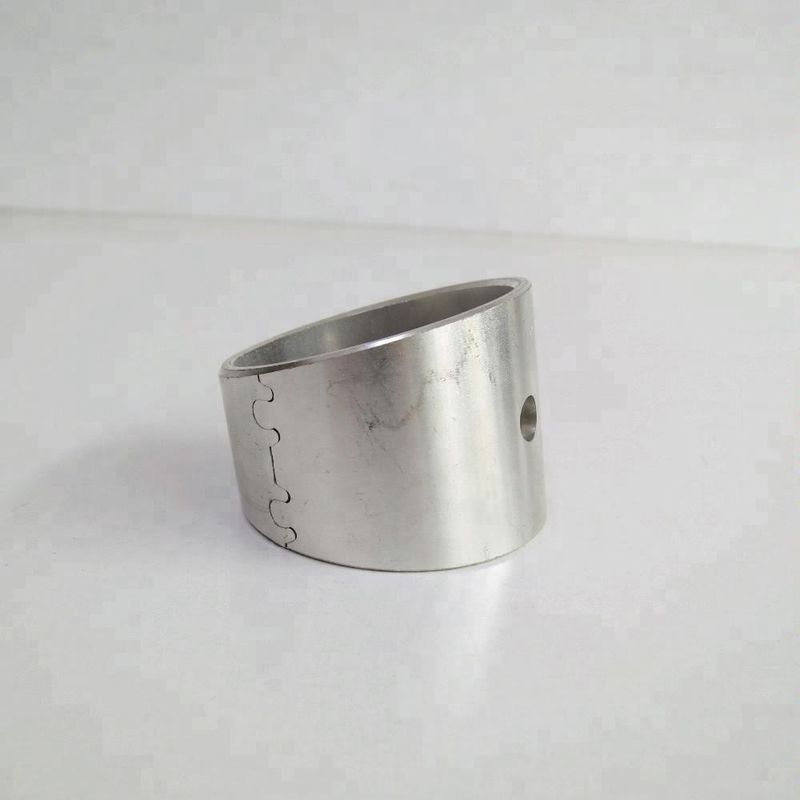

CONROD BUSHING PICTURE BE BELOW:
