| Place of Origin: | China |
| Brand Name: | JTP |
| Model Number: | F22C |
| Certifiion: | ISO9001:2008;ISO/TS16949:2009 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | 5~10days |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| Color: | As The Pictures | Material: | Aluminum Alloy |
|---|---|---|---|
| Condition: | 100%new | Cylinder Diameter: | 146mm |
| Heigh: | 138.3mm | OEM: | 132162671A 132261321A |
| Piston Comp: | 84.3mm | No.cyI: | 8 |
| Car Made: | HINO | ||
| High Light: | icon forged pistons,cast iron piston |
||
Exacvator spare parts F22C Piston and Liner rebuil kit OEM: 132162671A 132261321A
Specifiion:
| Surface treatment | Chromium plated,Phosphoric treatment,Top oxidization,Top molybdenum treatment,Tin plated on skirt,Graphite on skirt,Alfin,Oil cooling gallery etc. |
| Material | Aluminium alloy,Senior cast iron,heat-resisting steel,Mutil cast iron,ductile cast iron,hypereutectic Al-si alloy,hypoeutectic Al-si alloy and Eutectic Al-si alloy. |
| Piston process | Casting,Forging,Melted metal squeezing |
| Condition | 100%new |
| Packing | As per your request |
| Product range |
Piston / Piston Pin /Clips or Locks Piston Ring / Piston Ring Set / Piston Ring Kit / Ring Piston Cylinder Liner / Cylinder Sleeves Main Bearing / Con rod Bearing / Engine Bearing Set Cylinder Gasket / Head Gasket / Overhaul gasket kit / Gasket kit Cam Bush / Con rod Bush / Pin Bush / Thrust washer Valve / Valve seat / Valve guide / Valve seal Nozzle / Injectors / Injection nozzles / Plungers Cylinder liner kit / Piston liner kit / Liner set Liner seal / Seal kits / O-rings
|
Product Range:
| Engine Type | Cyl | Dia(mm) | Position | Ring width (mm) | Padial Thickness | Part No |
| W04D | 4 | 104.00 | 1st | 2.500 | 4.30 | 13011-1973 |
| 2nd | 2.000 | 4.30 | FX | |||
| Oil Ring | 5.000 | 3.20 | ||||
| W06D | 6 | 104.00 | 1st | 2.500 | 4.30 | 13011-1983 13011-2420 13011-2440 |
| 2nd | 2.000 | 4.30 | FX | |||
| Oil Ring | 5.000 | 3.20 | ||||
| H06C | 6 | 108.00 | 1st | 3.000 | 4.50 | 13011-2080 |
| 2nd | 2.500 | 4.50 | FX | |||
| 3rd | 2.500 | 4.50 | 15345 | |||
| Oil Ring | 5.000 | 3.20 | ||||
| H06CT | 6 | 108.00 | 1st | 2.800 | 4.50 | 13011-3281 |
| 2nd | 2.500 | 4.50 | FM | |||
| 3rd | 2.500 | 4.50 | 15345 | |||
| Oil Ring | 5.000 | 2.45 | ||||
| EH700 | 6 | 110.00 | 1st | 3.000 | 4.50 | 13011-1610 |
| 2nd | 2.500 | 4.50 | 13011-1620 | |||
| 3rd | 2.500 | 4.50 | FX | |||
| Oil Ring | 5.000 | 3.20 | ||||
| H07C | 6 | 110.00 | 1st | 3.000 | 4.50 | 13011-2070 13011-2090 |
| 2nd | 2.500 | 4.50 | FX | |||
| 3rd | 2.500 | 4.50 | ||||
| Oil Ring | 5.000 | 3.20 | ||||
| H07C-T | 6 | 110.00 | 1st | 2.806 | 4.50 | 13011-2672 13011-3510 |
| 2nd | 2.000 | 4.50 | FM | |||
| 3rd | 2.500 | 4.50 | ||||
| Oil Ring | 4.000 | 2.45 | ||||
| H07D | 6 | 110.00 | 1st | 3.000 | 4.50 | 13011-2650 13011-2651 13211-2660 |
| 2nd | 2.000 | 4.50 | FM | |||
| Oil Ring | 4.000 | 2.50 | ||||
| J07C J08C | 6 | 114.00 | 1st | 3.000 | 4.50 | 13011-2962 |
| 2nd | 2.000 | 4.50 | FM | |||
| Oil Ring | 4.000 | 2.45 |
| TYPE | ENGINE MODEL | OEM REF | NO.CYL | BORE | LENGTH |
| HINO | W06E | 13216-1791B | 6 | 104 | 106.15 |
| HINO | EH700 | 13216-1181B | 6 | 110 | 121.3 |
| HINO | H07C(1500) | 13216-2300 | 6 | 110 | 121.5 |
| HINO | H07C(2290) | 13216-2290 | 6 | 110 | 121.5 |
| HINO | H07D | 13211-2260 | 6 | 110 | 100 |
| HINO | H07D | 13211-1980 | 6 | 110 | 100 |
| HINO | EB400 | 13216-1230 | 6 | 120 | 155.45 |
| HINO | EM100 | 13216-1370 | 6 | 124 | 139.3 |
| HINO | EF300 | 13216-1241A | 8 | 132 | 145.2 |
| HINO | 13216-1011A | ||||
| HINO | EF500 | 13216-1252A | 8 | 135 | 145 |
| HINO | 13216-1140A | ||||
| HINO | EF550 | 13216-1560A | 8 | 135 | 145.25 |
| HINO | 13216-1140A | ||||
| HINO | EK100 | 13216-1224A | 6 | 137 | 145.33 |
| HINO | EK100T | 13216-1410A | 6 | 137 | 145.33 |
| HINO | EK200 | 13211-1900 | 6 | 137 | 145.5 |
| HINO | EF750 | 13216-1860A | 8 | 137 | 144.3 |
| HINO | 13216-1170A | ||||
| HINO | EF750T | 13216-1742A | 8 | 137 | 144.3 |
| HINO | 13216-1152 | ||||
| HINO | K13D | 13211-2470 | 6 | 137 | 144.2 |
| HINO | F17C | 13216-1910 | 8 | 139 | 144.3 |
| HINO | 13216-1180 | ||||
| HINO | F17E | 13216-2110B | 8 | 139 | 144.3 |
| HINO | 13226-1210B | ||||
| HINO | V22C | 13216-1842 | 10 | 139 | 144.3 |
| HINO | 13226-1162 | ||||
| HINO | F20C | 13216-2671A | 8 | 146 | 138.3 |
| HINO | 13226-1321A | ||||
| HINO | H06C | 13216-1750 | 6 | 108 | 121.5 |
| HINO | H06CT | 13216-1810 | 6 | 108 | 121.5 |
| HINO | EP100 | 13216-1450 | 6 | 120 | 144.6 |
| HINO | EL100 | 13216-1272A | 6 | 116 | 130.6 |
| HINO | K13C(12V) | 13216-2140 | 6 | 135 | 145.5 |
| HINO | K13C(24V) | 13216-2330 | 6 | 135 | 145.5 |
FAQ:
Q1. What is your terms of packing?
A: Neutral or Custom
Q2. What is your terms of payment?
A: T/T , West Union, etc
Q3. What is your terms of delivery?
A: EXW.
Q4. How about your delivery time?
A: 25 to 35 working days for Custom made parts, ( 1 or 2 working days to deliver for ready products.
Q5. Can you produce according to the samples?
A: Yes, it could be Designed and Optimized for your high performance racing cars use.
SHINPPING AND SERVICE :
| Packaging | Carcon box, wooden box, or as customers' requirements |
| Shiping way | by express, by air,by sea |
| Principle | for small order, we can only accept 100% in asvance |
| substanitial order 50% advanced payment can be accepted | |
| shipping at any port in China, depends on negotiation | |
| Production time | after receiving the payment(usually takes 3 days),we prepare the goods for you |
| Delivery time |
depends on the shipping way |

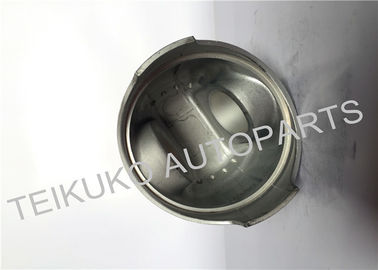

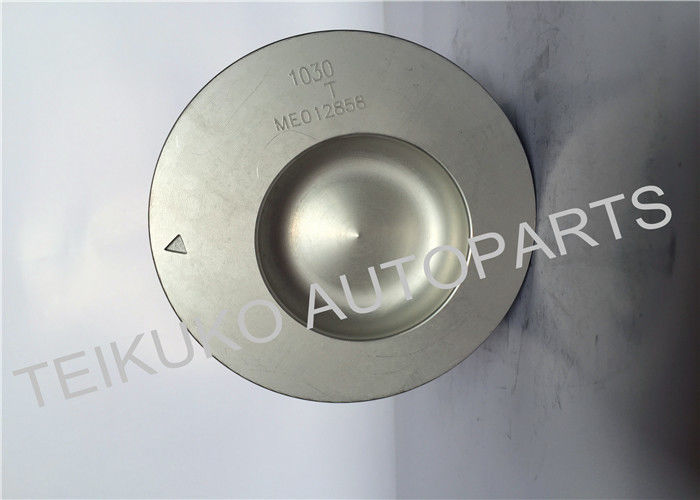

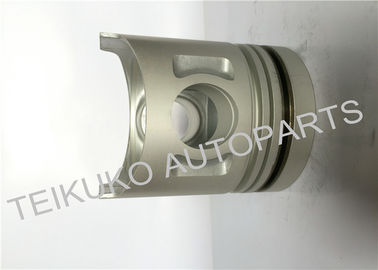

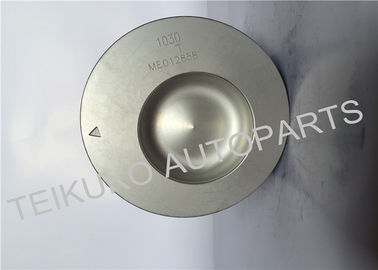

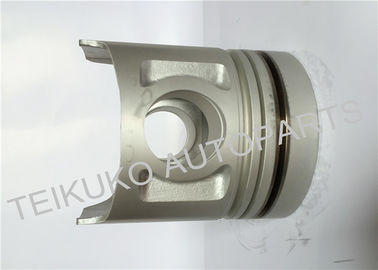

F22C ENGINE PISTON PICTURE AS BELOW:
