| Place of Origin: | China |
| Brand Name: | JTP |
| Model Number: | 8DC91T |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | 5~10days |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| OEM: | ME091312 ME091048 | Material: | Aluminum Alloy |
|---|---|---|---|
| Condition: | 100%new | Cylinder Diameter: | 135mm |
| Heigh: | 153mm | Piston Pin Size: | 50X112mm |
| Piston Ring Size: | 3.3DK 3.0 3.0 4.0mm | Piston Comp.: | 88.3mm |
| Quality: | Orignla Or New & High Performance | Custom Service: | Available |
| High Light: | car engine piston,cast iron piston |
||
Engine part with High performance 8DC91T Piston/ piston ring set OEM: ME091312 ME091048
Specifiion:
| MITSUBISHI 8DC91T Appliion: TRUCK BUS No. CyI: 8 Diameter: 135.0MM |
|||||
| Piston | OEM No. | Compress Height | Total Length | Pin Size | Feature |
| ME090166 | 88.3 | 153.1 | 50x112 | w/al-fin | |
| Piston Ring | OEM No. | Size1 | Size2 | ||
| ME090758 | 3.3DK+3.0+3.0+4.0 | ||||
| Cylinder Liner | OEM No. | Size | Flange | ||
| ME061782 | 135.0x155.0x259.3 | 163.0x11.8+1.3 | |||
| Engine Bearing | OEM No. | Main Bearing | Con Rod Bearing | Bush | |
| 31209-70020 | 31219-32010 | 31219-34300 | |||
| Engine Valve (IN) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| ME061545 | 59.0 | 12.0 | 174.7 | ||
| Engine Valve (EX) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| ME061547 | 53.0 | 12.0 | 175.0 | ||
| Valve Seat | OEM No. | ||||
| Valve Guide/Sub Parts | OEM No. | ||||
Production facilities:
Automatic casting and processing
1. IF melting furnace system
2. Insulation casting furnace system
3. Automatic casting line
4. Shot blasting machine
5. Fully automatic cutting line
Inspection facilities:
Our company introduces several sets of specialized inspection equipments
1. Roughness meter,profile and roughness tester
2. Metallurgical microscope,direct-reading spectrometer
3. Universal testing machine,rockwell hardness testeor
4.Coodinate measuring machining
Product Range:
| MITSUBISHI | 6DS7 | ME024402 | 6 | 98 | 105.3 | 61 | 32 |
| MITSUBISHI | 6D31 | ME012858 | 6 | 100 | 110.7 | 60.8 | 34 |
| MITSUBISHI | 4D31T | ME012155 | 4 | 100 | 110.7 | 60.7 | 34 |
| MITSUBISHI | 6D14 | ME032742 | 6 | 110 | 116.15 | 71 | 38 |
| MITSUBISHI | 6D14T | ME072047 | 6 | 110 | 116.15 | 71.1 | 38 |
| MITSUBISHI | 6DB1 | 30017-93101 | 6 | 110 | 152.5 | 77.5 | 40 |
| MITSUBISHI | 6DB1P | 30017-70100 | 6 | 110 | 139.5 | 77.4 | 40 |
| MITSUBISHI | 6D15 | ME032593 | 6 | 113 | 115.8 | 70.7 | 38 |
| MITSUBISHI | 6D15 | ME032870 | 6 | 113 | 116.1 | 71 | 38 |
| MITSUBISHI | 6D15T | ME072055 | 6 | 113 | 116.1 | 71 | 38 |
| MITSUBISHI | 6D16 | ME072064 | 6 | 118 | 116.1 | 71 | 38 |
| MITSUBISHI | 6D16T | ME072062 | 6 | 118 | 116 | 71 | 38 |
| MITSUBISHI | 6D16T | ME072065 | 6 | 118 | 116 | 71 | 38 |
| MITSUBISHI | 6D22 | ME052809 | 6 | 130 | 158.2 | 83.1 | 50 |
| MITSUBISHI | 6D22T | ME052902 | 6 | 130 | 158.2 | 83.1 | 50 |
| MITSUBISHI | 6D22T | ME052664 | 6 | 130 | 158.2 | 83.1 | 50 |
| MITSUBISHI | 6D22T-4MM | ME052792 | 6 | 130 | 158.2 | 83.1 | 50 |
| MITSUBISHI | 8DC81 | ME062422 | 8 | 135 | 143 | 78 | 45 |
| MITSUBISHI | 8DC90 | ME062408 | 8 | 135 | 153 | 88 | 50 |
| MITSUBISHI | 8DC91 | ME062336 | 8 | 135 | 153 | 88 | 50 |
| MITSUBISHI | 8DC91T | ME090167 | 8 | 135 | 153 | 88.1 | 50 |
| MITSUBISHI | 8DC92 | ME065579 | 8 | 135 | 153.1 | 88.1 | 50 |
| MITSUBISHI | 8DC92 | ME091048 | 8 | 135 | 153.1 | 88.1 | 50 |
| MITSUBISHI | 8DC10-4MM | ME091049 | 8 | 138 | 153.1 | 88.1 | 50 |
| MITSUBISHI | 8DC10-6MM | ME090146 | 8 | 138 | 153.1 | 88.1 | 50 |
| MITSUBISHI | 8DC11(5) | ME092922 | 8 | 142 | 153 | 88 | 50 |
| MITSUBISHI | 8DC11(4) | ME091050 | 8 | 142 | 153 | 88 | 50 |
| MITSUBISHI | 6D20 | ME052050 | 6 | 125 | 155.5 | 50 | |
| MITSUBISHI | 8DC2W | 31217-77101 | 8 | 130 | 145 | 45 | |
| MITSUBISHI | 8DC2A | 31217-50105 | 8 | 130 | 145.2 | 45 | |
| MITSUBISHI | 8DC4 | ME062273 | 8 | 130 | 145.2 | 45 | |
| MITSUBISHI | S6K | 6 | 102 | 97.7 | 34 | ||
| MITSUBISHI | 6D34 | ME014160 | 6 | 104 | 112 | 36 | |
| MITSUBISHI | 6D34T | ME220454 | 6 | 104 | 112 | 36 |
Our Stocks for following Japanese multi-function engine parts:
| Yanmar: | 3TNE84, 3TNE88, 4TNE88, 4TNA94, 4TNA98, 4TNV98 |
| Kubota: | D1462-DI, F2302-DI, F2803-B, V3300-B, V3300-B. V3300-DIE, V3300-TIE |
| Shibaura: | N844, N844L, N844T |
| Isuzu: | 3AE1, 3KB1, 3KC1, 3KC2, 3KR1, 3KR2, 3/4LB1, 3/4LC1, 3LD1, 4FB1, 4FC1, 4FD1, 4FE1, 4FG1, 4FG1T, 4JB1, 4JG2, 4LE1, 4LE2, D201 |
| Komatsu: |
4D94, 4D94E, 4D95A, 4D95K, 4D95LE-3, 4D95LE, 4D95S, 4D95T, 4D98E, S4/6D95T, 4D105-3, 4D120, 4D130, 6D105-1, 6D105, 6D155, S6D95, S6D102, S6D105-3, S4/6D105-5, S6D108, S6D108, S6D110-2, S6D110-3, S6D110, S6D125, S6D140, S6D170, NH220, NH250 |
| Mazda: | WL B2500, S2 E2200, XA E2500, XB E2700, HA E3000, XA T2500, HA T3000, VS T3000, T3500, SL T3500, TF T4000, ZB T4100, TM T4500 |
| Mitsubishi: |
4DQ5, K3B, K3F, K3H, K3M, K4C, K4D, K4E, K4E-DI, K4F, K4H, K4M, K4N, K4Q, 4DQ7, L3C, S3E, S3L2, S4E, S4E2, S4F, S4L, S4L2, S4L2-T, S4Q2, S4Q2-1, S4S, S6E2, S6KT, S6SD |
| Nissan: | BD30, H20, K21, K25, SD22, SD23, SD25, TD23, TD25, TD25T, TD27, TD27T |
| Toyota: | 1DZ-2, 1DZ, 1Z, 2H, 2J, 2Z, 2Z-N, 12Z, 13Z, 14Z |
FAQ:
Q1. What is your terms of packing?
A: Neutral or Custom
Q2. What is your terms of payment?
A: T/T , West Union, etc
Q3. What is your terms of delivery?
A: EXW.
Q4. How about your delivery time?
A: 25 to 35 working days for Custom made parts, ( 1 or 2 working days to deliver for ready products.
Q5. Can you produce according to the samples?
A: Yes, it could be Designed and Optimized for your high performance racing cars use.
SHINPPING AND SERVICE :
| Packaging | Carcon box, wooden box, or as customers' requirements |
| Shiping way | by express, by air,by sea |
| Principle | for small order, we can only accept 100% in asvance |
| substanitial order 50% advanced payment can be accepted | |
| shipping at any port in China, depends on negotiation | |
| Production time | after receiving the payment(usually takes 3 days),we prepare the goods for you |
| Delivery time |
depends on the shipping way |

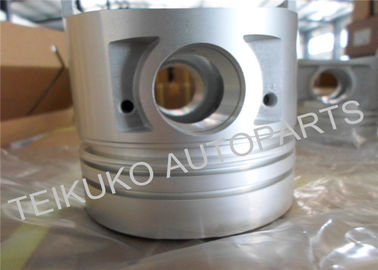

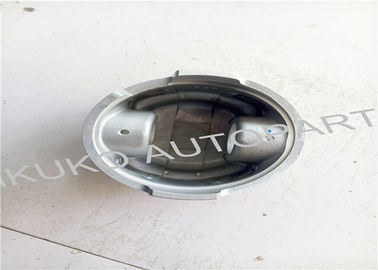

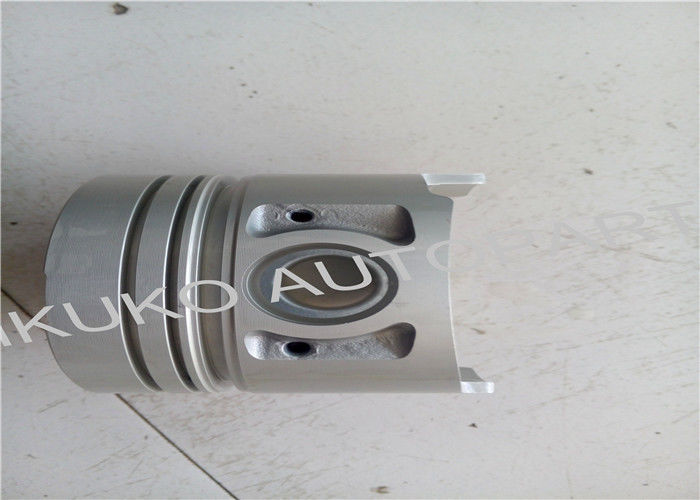

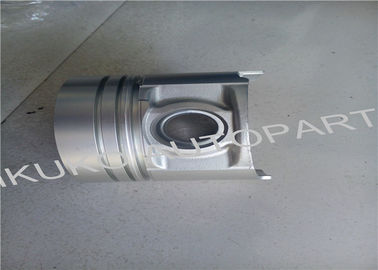

8DC91 ENGINE PISTON PICTURE AS BELOW:
