Single Cylinder Diesel Engine Piston PF6T 12011-96504 High Performance

Product Details:

Place of Origin:	China
Brand Name:	JTP
Model Number:	PF6T

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with green sack for outer packing
Delivery Time:	5~10days
Payment Terms:	T/T or western Union
Supply Ability:	5000pcs per month

Contact Now

All Products

Engine Cylinder Liner (292)

Diesel Engine Piston (532)

Engine Piston Rings (304)

Engine Gasket Kit (62)

Cylinder Liner Kit (39)

Engine Head Gasket (110)

Diesel Engine Crankshaft (250)

Engine Turbocharger Parts (64)

Diesel Engine Valve (121)

Diesel Engine Bearings (188)

Connecting Rod Bushings (64)

Fuel Injector Nozzle (40)

Injection Pump Plunger (38)

Oil Cooler Cover (23)

Oil Cooler Core (10)

Engine Connecting Rod (42)

Detailed Product Description

OEM:	12011-96504	Diameter:	133mm
Length:	136mm	Material:	Aluminum
Car Made:	Isuzu	Piston Pin Size:	50x113mm
Piston Ring Size:	2.5K+2.0+4.0mm	Piston Comp.:	86.3mm
Swept Volume:	12503ccm
Highlight:	car engine piston , cast iron piston

Single Cylinder Diesel engine part Piston PF6T Auto piston OEM: 12011-96504

Remarks:
1, Advanced technology, superb quality, reliability and honesty, satisfactory service
2, Reasonable price
3, Considerate after-sales service
4, Safe and fair cooperation with us.
5, We strictly adhere to OEM quality. Same quality and service in domestic and overseas markets.

For Nissan engine, we can offer the following models:
Z24 CD20 TD25-2 TD27T BD30 TD24T BD30 SD22 SD15 SD23 TD23 TD25 TD27 TD42 ED30 ED6 FD6 FD6T FD6T ED33 ED35 FD35 FD35T FE6T FE6 ND6 ND6T NE6 PD6 PD6T PDT PE6 PE6T PF6 RD8 RD10 RD8T RE8 RE10 RF8 RG8 RH8 RH10

Specifiion:

Engine Model	PF6T
OEM Nmuber	12011-96960
Cylinder Diameter	133
Cylinder Number	6
Piston Height	136
Compression Distance	86.1-29.5
Compression Rings	2.5HK 2.5
Oil Ring	4
Pin Diameter	50
Pin Length	112
Combustion Chamber Diameter	71
Remarks	alfin+anodized

Send your message to this supplier

Product Range:

TYPE	ENGINE MODEL	OEM REF	NO.CYL	BORE	LENGTH
ISUZU	C240PK		4	86	84.5
ISUZU	4JA1	8-94152712-1	4	93	87.6
ISUZU	4JB1	8-94152711-0	4	93	92
ISUZU	4BD1	8-94422975-1	4	102	98
ISUZU	4BC2	5-12111-230-4	4	102	98
ISUZU	6BB1	5-12111-013-0	6	102	112.3
ISUZU	6BD1T	5-12111-068-2	6	102	104.3
ISUZU	4BE1	8-94438989-1	4	105	95.7
ISUZU	6BG1	1-12111-323-2	6	105	95
ISUZU	6BF1	1-12111-345-0	6	105	110
ISUZU	10PA1	1-12111-154-1	10	115	113.2
ISUZU	10PB1	1-12111-217-0	10	115	104
ISUZU	10PC1	1-12111-419-1	10	119	104
ISUZU	10PD1	1-12111-549-3	10	119	106.5
ISUZU	DH100	9-12111-742-3	6	120	150.83
ISUZU	6QA1	1-12111-388-1	6	125	136
ISUZU	6RB1	1-12111-437-0	6	135	142.9
ISUZU	6BG1(3R)		6	105	94.5
ISUZU	6BG1(4R)		6	105	94.2
ISUZU	4HG1	8-97183666-0	4	115	104.4
ISUZU	6SD1	1-12111-569-0	6	120	117
ISUZU	6SD1		6	120	117
ISUZU	DA120		6	100	125
ISUZU	DA640		6	102	125

Our Advantage:

1.Professional manufacturer: many parts are provide for different types of excavtor.

2.Term of payment: safe,flexible.

3.Delivery: so fast, bacause we have large stock

4.We can provide our clients with high quality products and efficiant service.

Our shipping and delivery:

1.Sea transportation

2.land transportation

3.Express

4.Air transportation

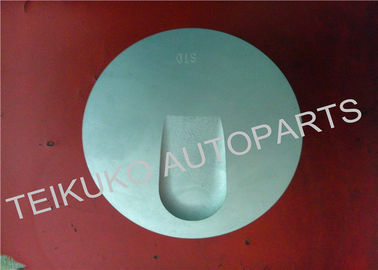

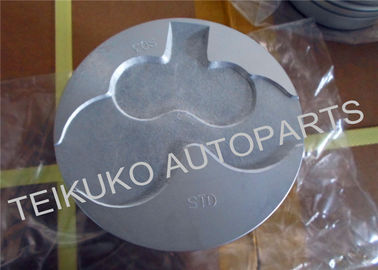

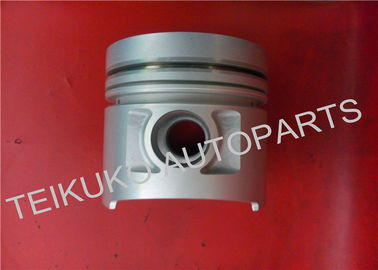

PF6T PISTON PICTURE AS BELOW:

Single Cylinder Diesel Engine Piston PF6T 12011-96504 High Performance 0
