| Place of Origin: | China |
| Brand Name: | JTP |
| Model Number: | 6D34T |
| Certifiion: | ISO9001:2008;ISO/TS16949:2009 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | 5~10days |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| Material: | Aluminium Alloy , Alloy Cast Iron | Condition: | 100%new |
|---|---|---|---|
| OEM: | ME220454 | Diameter: | 104mm |
| Length: | 112mm | Packing: | Neutral, OEM |
| Original: | Guangdong, China (Mainland) | Piston Comp: | 90.3mm |
| Engine Type: | Diesel | Appliion: | Engineering Machinery Engine |
| Car Make: | Mitsubishi | ||
| High Light: | icon forged pistons,cast iron piston |
||
Excavator spare part 6D34T Aluminium alloy/ Alloy cast iron Piston set ME220454
Specifiion:
| Part Name | Piston | Part Number | ME220454 |
| Engine Type | 6D34 4D34 | Brand | Genuine / OEM |
| Packing | Original / Neutral / Customized | Warranty | 6 Months |
| MOQ | 1 Piece | Payment Term | T/T, Western Union, |
| Delivery way | DHL/FEDEX/UPS/TNT,By Air, By Sea | FOB Port | Guangzhou, China |
Piston types
Piston skirt and crown
Consist of a steel piston head and an aluminium piston skirt which have a moveable connection to each other via the piston pin. Due to great strength and low wear and tear, it is possible to achieve low exhaust emission values for diesel engines that are subjected to particularly high loads.
Piston comes with bushes
In order to make it possible to increase the loads to which the pin boss can be subjected, this piston has pin boss bushes that are made of a special material
Alfin Pistons
Alfin is inserted within the ring grooves when casting. Alfin is made of special austenitic cast iron. It is tightly bonded metallically to piston body and counteracts the wear in the top or second ring groove.
Cooling channel piston
Cooling channel piston effectively reduce piston body working and groove land temperature under high temperature working condition.
PISTON SURFACE TREATMENT
Piston with Tin coating
Tin is coated by exectroanalysis or heat dipping at thickness between 0.001 and 0.003mm. Tin is characterized as soft and oil-friendly which improves running-in efficiency of piston and liner.
Pistons with Phosphating
The phosphating is aimed to improve initial running-in performance. The phosphating layer is easy to wear off and helpful to improve running-in.
Piston roof anodizing
The piston roof is anodized by electrobath, forming thin layer of Al O . This treatment will improve heat resistance, heat conductivity and anticorrosion, it helps prevent piston roof burn-up.
Graphipe printing and spratyed at piston skirt
Graphite is characterized as good lubriing, which helps lubricant adhering to coating surface.
Remarks:
1. Advanced technology, superb quality, reliability and honesty, satisfactory service
2. Reasonable price
3. Considerate after-sales service
4. Safe and fair cooperation with us.
5. We strictly adhere to OEM quality. Same quality and service in domestic and overseas markets.
We also have other brands:
Mazda, Nissan, Mitsubishi, Hino, Isuzu, Toyota, Komatsu
Our main products: Piston, piston ring, cylinder liner
Material:
Piston: ZL109 Aluminum Alloy, Alloy cast iron
Piston Ring: Cast iron, Alloy, Steel
Cylinder Liner Material: Boron-containing Alloy Cast Iron
Product Range:
| MITSUBISHI | 6DS7 | ME024402 | 6 | 98 | 105.3 |
| MITSUBISHI | 6D31 | ME012858 | 6 | 100 | 110.7 |
| MITSUBISHI | 4D31T | ME012155 | 4 | 100 | 110.7 |
| MITSUBISHI | 6D14 | ME032742 | 6 | 110 | 116.15 |
| MITSUBISHI | 6D14T | ME072047 | 6 | 110 | 116.15 |
| MITSUBISHI | 6DB1 | 30017-93101 | 6 | 110 | 152.5 |
| MITSUBISHI | 6DB1P | 30017-70100 | 6 | 110 | 139.5 |
| MITSUBISHI | 6D15 | ME032593 | 6 | 113 | 115.8 |
| MITSUBISHI | 6D15 | ME032870 | 6 | 113 | 116.1 |
| MITSUBISHI | 6D15T | ME072055 | 6 | 113 | 116.1 |
| MITSUBISHI | 6D16 | ME072064 | 6 | 118 | 116.1 |
| MITSUBISHI | 6D16T | ME072062 | 6 | 118 | 116 |
| MITSUBISHI | 6D16T | ME072065 | 6 | 118 | 116 |
| MITSUBISHI | 6D22 | ME052809 | 6 | 130 | 158.2 |
| MITSUBISHI | 6D22T | ME052902 | 6 | 130 | 158.2 |
| MITSUBISHI | 6D22T | ME052664 | 6 | 130 | 158.2 |
| MITSUBISHI | 6D22T-4MM | ME052792 | 6 | 130 | 158.2 |
| MITSUBISHI | 8DC81 | ME062422 | 8 | 135 | 143 |
| MITSUBISHI | 8DC90 | ME062408 | 8 | 135 | 153 |
| MITSUBISHI | 8DC91 | ME062336 | 8 | 135 | 153 |
| MITSUBISHI | 8DC91T | ME090167 | 8 | 135 | 153 |
| MITSUBISHI | 8DC92 | ME065579 | 8 | 135 | 153.1 |
| MITSUBISHI | 8DC92 | ME091048 | 8 | 135 | 153.1 |
| MITSUBISHI | 8DC10-4MM | ME091049 | 8 | 138 | 153.1 |
| MITSUBISHI | 8DC10-6MM | ME090146 | 8 | 138 | 153.1 |
| MITSUBISHI | 8DC11(5) | ME092922 | 8 | 142 | 153 |
| MITSUBISHI | 8DC11(4) | ME091050 | 8 | 142 | 153 |
| MITSUBISHI | 6D20 | ME052050 | 6 | 125 | 155.5 |
| MITSUBISHI | 8DC2W | 31217-77101 | 8 | 130 | 145 |
| MITSUBISHI | 8DC2A | 31217-50105 | 8 | 130 | 145.2 |
| MITSUBISHI | 8DC4 | ME062273 | 8 | 130 | 145.2 |
| MITSUBISHI | S6K | 6 | 102 | 97.7 | |
| MITSUBISHI | 6D34 | ME014160 | 6 | 104 | 112 |
| MITSUBISHI | 6D34T | ME220454 | 6 | 104 | 112 |
SHINPPING AND SERVICE :
| Packaging | Carcon box, wooden box, or as customers' requirements |
| Shiping way | by express, by air,by sea |
| Principle | for small order, we can only accept 100% in asvance |
| substanitial order 50% advanced payment can be accepted | |
| shipping at any port in China, depends on negotiation | |
| Production time | after receiving the payment(usually takes 3 days),we prepare the goods for you |
| Delivery time |
depends on the shipping way |
Other relative products:
excavator engine parts
engine piston
piston ring
cylinder liner/sleeves
engine piston liner kit
engine bearing
engine valve&seat&guide
cylinder block
cylinder head
gasket kit/engine overhaul kit
gasket head
connecting rod/con-rod
crankshaft/camshaft
oil cooler/oil cooler cover
turbocharger
fan cooling
coupling set
engine assy
FAQ:
1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.
2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.
3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.
4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.
5.How to buy with you?
You can use "Chat now!" or email to us.
6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.
7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.
8.What information should I let you know if I want to get a quotation?
To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.
OUR COMPANY & FACTORY:

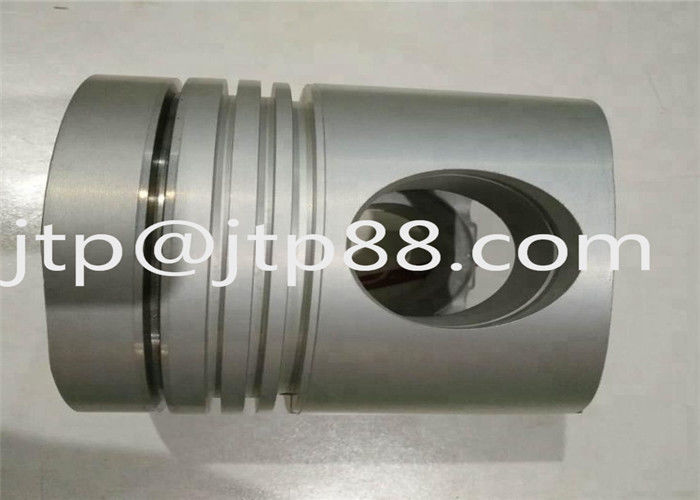

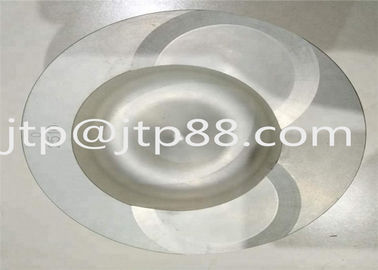

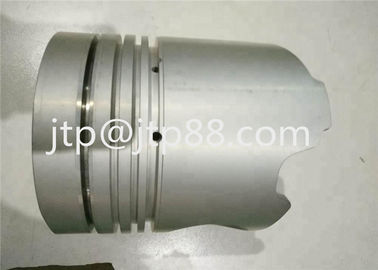

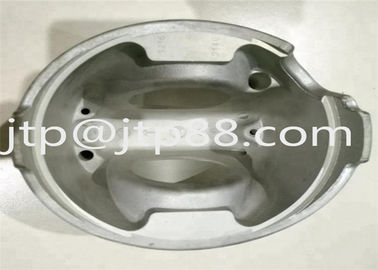

ENGINE PISTON PICTURE AS BELOW:
