| Place of Origin: | China |
| Brand Name: | JTP |
| Model Number: | T3500 |
| Certifiion: | ISO9001:2008;ISO/TS16949:2009 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | 5~10days |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| Material: | Alfin, Tin-coated | Condition: | 100%new |
|---|---|---|---|
| OEM: | SL07-23-200B | Diameter: | 100mm |
| Length: | 105.00mm | Packing: | 2.50+2.00+4.50mm |
| Piston Pin Size: | 34*82mm | Warranty: | 1 Year |
| Original: | China | Piston Comp: | 58mm |
| Car Make: | Mazda | Quality: | High Quality |
| Surface: | Alfin, Anoziding, Bush, Coating | Piston Features: | Sn-plated |
| High Light: | icon forged pistons,cast iron piston |
||
Forklift engine parts For Mazda T3500 Diesel Engine Parts Piston SL07-23-200B
SPECIFIIONS:
| MAZDA T3500 Korea Appliion: TRUCK Number of Cylinders 4 Cylinder dia. 100.0 MM Swept volume 3455 ccm |
|||||
| Piston | OEM No. | Compress Height | Total Length | Pin Size | Feature |
| SLA1-11-SAO | 58.0 | 105.0 | 34x82 | w/al-fin, oil-cooled | |
| Piston Ring | OEM No. | Size1 | Size2 | ||
| SL07-23-206 | 2.5+2.0+4.5 | ||||
| Cylinder Liner | OEM No. | Size | Flange | ||
| SL01-23-311 | 100.0x103.5x193.5 | 108.0*2.5+0.8 | |||
| Engine Bearing | OEM No. | Main Bearing | Con Rod Bearing | Bush | |
| SL01-23-110 | SL01-23-105 | SL01-11-213 | |||
| Engine Valve (IN) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| SE01-12-111 | 45.5 | 9.0 | 114.5 | ||
| Engine Valve (EX) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| SE01-12-121 | 38.0 | 9.0 | 114.5 | ||
| Valve Seat | OEM No. | ||||
| Valve Guide/Sub Parts | OEM No. | ||||
OUR ADVANTAGE:
1. High quality and competitive price.
2. Long life span, good sales-after service.
3. 100% new, strict inspection & test.
4. Standard export packing.
5. One year quality warranty.
6. Have strong stock, small order is acceptable
7. Various kinds are selectable with different car models.
8. Improve power and increase torque
9. Improve fuel economy and reduce fuel consumption
10. Reduce waste emissions and reduce environmental pollution
SHIPPINGA AND SERVICE :
| Packaging | Carcon box, wooden box, or as customers' requirements |
| Shiping way | by express, by air,by sea |
| Principle | for small order, we can only accept 100% in asvance |
| substanitial order 50% advanced payment can be accepted | |
| shipping at any port in China, depends on negotiation | |
| Production time | after receiving the payment(usually takes 3 days),we prepare the goods for you |
| Delivery time |
depends on the shipping way |
ALSO BUSINESS ENGINE PARTS AS FOLLOW:
1.Piston/piston ring/piston pin/Cylinder Liner
2.Engine bearing/valve/guide/seat/thrust/gasket set
3.Gasket head/ cylinder head/ cylinder block/ cylinder liner
4.Crankshaft/camshaft/con rod/
5.Fuel pump/ oil pump/water pump
6.Starter/ generator/alternator
7.Injector/turbocharger
PRODUCT RANGE:
| S6K | 6 | 102 | 97.7 | ||
| IW6757 | 6 | 120.6 | 130 | ||
| XIW6757-8N3102 | 8N3102 | 6 | 120.6 | 130 | |
| 8N3182 | 6 | 120.6 | 130 | ||
| 68C | 9Y7212 | 6 | 137 | 136.9 | |
| 68E | 9Y4004 | 6 | 137 | 136.9 | |
| DEUTZ | FL413 | 8 | 125 | 138.58 | |
| DEUTZ | 1013ECP | 6 | |||
| MAZAD | K2400 | 4 | |||
| MAZAD | K2700 | 4 | |||
| MAZAD | SL-BD17B | 4 | |||
| HUUNDIA | 4D55 | 91.1 | 76 | ||
| HUUNDIA | 4D56 | 91.1 | 88.5 | ||
| HUUNDIA | 4D32 | 23411-41210 | 4 | 104 | 110.8 |
| HUUNDIA | 4D31T | 23411-41410 | 4 | 100 | 110.5 |
| HUUNDIA | 6D16 | 23411-93400 | 6 | 118 | 116.3 |
| HUUNDIA | 6D16T | 23422-93400 | 6 | 118 | 116.3 |
| DAEWOO | DB58 | 6 | 102 | 98.1 | |
| DAEWOO | DB58T | 6 | 102 | 98.1 | |
| DAEWOO | D1146 | 6 | 111 | 121.3 | |
| DAEWOO | D1146T | 6 | 111 | 121.3 | |
| DAEWOO | D2366 | 6 | 123 | 136 | |
| DAEWOO | D2366T | 6 | 123 | 136 |
OUR ADVANTAGE:
1. High quality and competitive price.
2. Long life span, good sales-after service.
3. 100% new, strict inspection & test.
4. Standard export packing.
5. One year quality warranty.
6. Have strong stock, small order is acceptable
7. Various kinds are selectable with different car models.
8. Improve power and increase torque
9. Improve fuel economy and reduce fuel consumption
10. Reduce waste emissions and reduce environmental pollution
OUR FACTORY :
FAQ:
1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.
2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.
3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.
4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.
5.How to buy with you?
You can use "Chat now!" or email to us.
6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.
7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.
8.What information should I let you know if I want to get a quotation?
To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

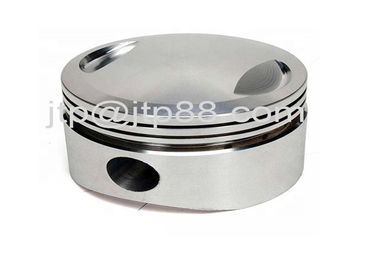

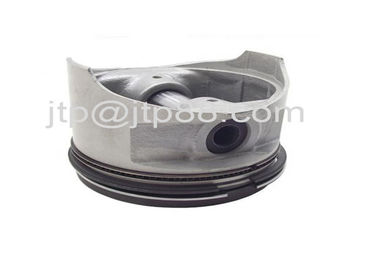

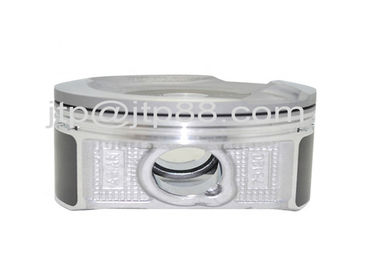

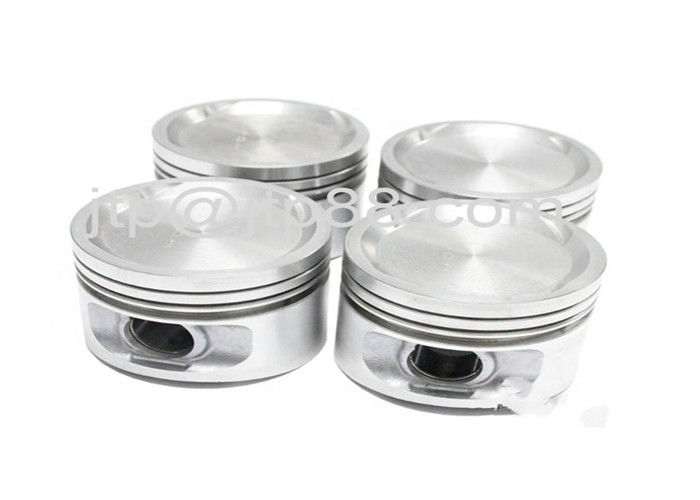

ENGINE PISTON PICTURE AS BELOW:
