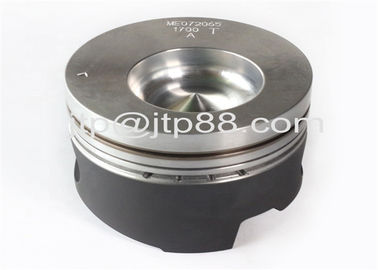

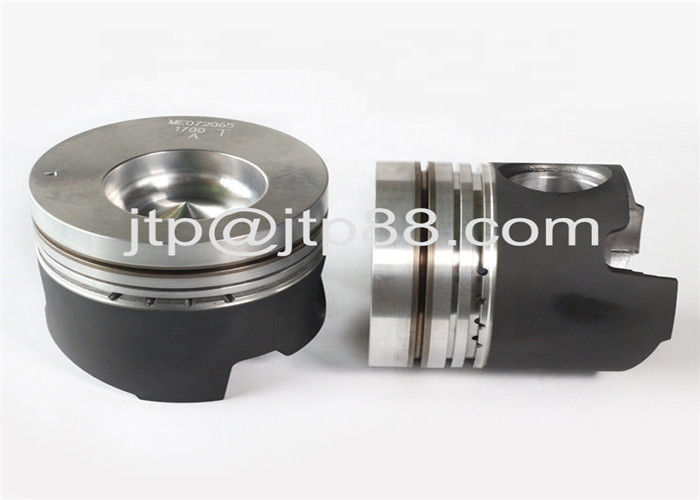

102mm Diameter Diesel Engine Piston For Truck / Excavator 3B Engine Piston Size 130101-58011

102mm Diameter Diesel Engine Piston For Truck / Excavator 3B Engine Piston Size 130101-58011

  • 102mm Diameter Diesel Engine Piston For Truck / Excavator 3B Engine Piston Size 130101-58011
  • 102mm Diameter Diesel Engine Piston For Truck / Excavator 3B Engine Piston Size 130101-58011
  • 102mm Diameter Diesel Engine Piston For Truck / Excavator 3B Engine Piston Size 130101-58011
  • 102mm Diameter Diesel Engine Piston For Truck / Excavator 3B Engine Piston Size 130101-58011
102mm Diameter Diesel Engine Piston For Truck / Excavator 3B Engine Piston Size 130101-58011
Product Details:
Place of Origin: China
Brand Name: JTP
Model Number: 3B
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with green sack for outer packing
Delivery Time: 5~10days
Payment Terms: T/T or western Union
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Material: Alfin, Tin-coated Condition: 100%new
OEM: 130101-58011 Diameter: 102mm
Length: 101.2mm Packing: 2.5+2.5+4.5mm
Piston Pin Size: 32*84mm Warranty: 1 Year
Original: China Piston Comp: 52.25mm
Car Make: Toyota Quality: High Quality
Surface: Alfin, Anoziding, Bush, Coating Piston Features: Sn-plated
High Light:

icon forged pistons

,

cast iron piston

Piston for Truck/ Excavator 3B Engine Piston Factory Engine Piston Size 130101-58011






SPECIFIIONS:



3B Engine Piston Factory Engine Piston Size
Car make For TOYOTA
OE NO. 13101-58011
Size Same as OEM
Shipping terms Fedex, DHL, EMS, TNT and so on
Packing details Neut ral packaging




SHIPPINGA AND SERVICE :



Packaging Carcon box, wooden box, or as customers' requirements
Shiping way by express, by air,by sea
Principle for small order, we can only accept 100% in asvance
substanitial order 50% advanced payment can be accepted
shipping at any port in China, depends on negotiation
Production time after receiving the payment(usually takes 3 days),we prepare the goods for you
Delivery time

depends on the shipping way







REMARKS:

1, Advanced technology, superb quality, reliability and honesty, satisfactory service

2, Reasonable price.

3, Considerate after-sales service.

4, Safe and fair cooperation with us.

5, We strictly adhere to OEM quality. Same quality and service in domestic and overseas markets.


PISTON TYPES



Piston skirt and crown

Consist of a steel piston head and an aluminium piston skirt which have a moveable connection to each other via the piston pin. Due to great strength and low wear and tear, it is possible to achieve low exhaust emission values for diesel engines that are subjected to particularly high loads.



Piston comes with bushes
In order to make it possible to increase the loads to which the pin boss can be subjected, this piston has pin boss bushes that are made of a special material



Alfin Pistons
Alfin is inserted within the ring grooves when casting. Alfin is made of special austenitic cast iron. It is tightly bonded metallically to piston body and counteracts the wear in the top or second ring groove.



Cooling channel piston
Cooling channel piston effectively reduce piston body working and groove land temperature under high temperature working condition.



PISTON SURFACE TREATMENT



Piston with Tin coating
Tin is coated by exectroanalysis or heat dipping at thickness between 0.001 and 0.003mm. Tin is characterized as soft and oil-friendly which improves running-in efficiency of piston and liner.



Pistons with Phosphating
The phosphating is aimed to improve initial running-in performance. The phosphating layer is easy to wear off and helpful to improve running-in.



Piston roof anodizing
The piston roof is anodized by electrobath, forming thin layer of Al O . This treatment will improve heat resistance, heat conductivity and anticorrosion, it helps prevent piston roof burn-up.



Graphipe printing and spratyed at piston skirt
Graphite is characterized as good lubriing, which helps lubricant adhering to coating surface.

Related Products

102mm Diameter Diesel Engine Piston For Truck / Excavator 3B Engine Piston Size 130101-58011 0


MATERIAL:

Piston: ZL109 Aluminum Alloy, Alloy cast iron, ZL108 Aluminum Alloy

Piston Ring: Cast iron, Alloy, Steel

Cylinder Liner Material: Boron-containing Alloy Cast Iron, steel



102mm Diameter Diesel Engine Piston For Truck / Excavator 3B Engine Piston Size 130101-58011 1





ALSO BUSINESS ENGINE PARTS AS FOLLOW:


1.Piston/piston ring/piston pin/Cylinder Liner


2.Engine bearing/valve/guide/seat/thrust/gasket set


3.Gasket head/ cylinder head/ cylinder block/ cylinder liner


4.Crankshaft/camshaft/con rod/


5.Fuel pump/ oil pump/water pump


6.Starter/ generator/alternator


7.Injector/turbocharger




PRODUCT RANGE:


OEM No. Model CYL DIA OD*L
13101-10033 1E 70.5 18 60
13101-11050 2E 73 18 60
13101-11081 3E 73 18 60
13101-11101 4E 74 18 59
13101-11160 5E 74 18 59
13101-15020 3A 77.5 18 61
13101-16010 4A 81 18 61
13101-15040 5AF 78.7 20 60
  8A 78.7 20 60
13101-14050 8AFE 78.7 20 59
13101-16090 4AF 81 18 61
13101-16160 4AFE 81 20 61
13101-72010 2Y 86 22 66
13101-73010 3Y 86 22 66
13101-73030 4Y 91 22 66
13101-44011 5R 88 22 75
  5A/5AFE 87.8 18 60
13101-24011 3K 75 18 61
13101-13030 5K 80.5 18 61
13101-31020 12R 80.5 20 66
13101-35010 22R 92 22 75
13101-35032 22RE 92 22 75
13101-74130
13101-03030
5S 87 22 66
  COROLLA 84.8 21 60
13101-22020 1ZZFE 79 20 50
13101-78201 1DZ 86 27 68
13101-75010 1RZ 86 24 61
13101-75050 2RZ 95 24 70
13101-64120
13101-64122
2C 86 27 58
13101-54010 L OLD 90 27 74
13101-54090 2LT 92 29 74
13101-54060 2L 92 27 74
13101-54070 2L NEW 92 27 70
13101-54100 3L 96 29 74
13101-54101 3L-AL 96 29 74
13101-54170 5L 99.5 29 74
13101-58021 13B 102 34 84
1310-58040 14B 102 32 72
13103-30020 1KD 96
13101-30031
13101-30030
2KD 92 34 65
  2KD NEW
  1TR
  2TR
  1HZ 94 26 66
13101-37071 2ZR-FE 80.5 20 50
13101-61010 2F 96
13101-61030 3F 94
13101-64090 2C 86
13101-22020 1ZZFE 79 18 54
13101-21040 2NZ 75
13101-BZ100 BZ100 72 18 54
13101-BZ030 BZ030 72 18 54
13101-06040 7K 80.5 20 56
13101-06050 7K-2 80.5 20 56
13105-56030 B NEW 95 29 79

13101-66020 1FZ-FE 100





OUR ADVANTAGE:





1. High quality and competitive price.



2. Long life span, good sales-after service.



3. 100% new, strict inspection & test.



4. Standard export packing.



5. One year quality warranty.



6. Have strong stock, small order is acceptable



7. Various kinds are selectable with different car models.



8. Improve power and increase torque



9. Improve fuel economy and reduce fuel consumption



10. Reduce waste emissions and reduce environmental pollution





OUR FACTORY :





102mm Diameter Diesel Engine Piston For Truck / Excavator 3B Engine Piston Size 130101-58011 2







OUR PISTON SPECIFIION



Common

Materials

Aluminum Alloy (lighter in weight and higher thermal conductivity); Senior Cast Iron (heavier in weight, greater strength and resistance to wear); Heat-resisting Steel, Hypereutectic Al-Si Alloy, Hypoeutectic Al-Si Alloy, Eutectic Al-Si Alloy, Multi-Cast Iron and Ductile-Cast Iron etc;



Piston Process



Casting, Forging, Melted Metal Squeezing;



Characteristics



Germany, advanced technique & wear proof & high temperature resistant etc.
Piston Types



Solid Skirt Pistons, Shim Type Pistons, Strut Type Pistons, Ring Carrier Pistons, Strut with Ring Carrier Type Pistons, Keystone Groove Pistons, Oil Cooled Pistons;



Different Treatment



Phosphating, Top Oxidization, Top Molybdenium Disulfide, Sn(tin)Plated on Skirt, Graphite on Skirt, Alfin, Double Alfin, None Alfin, Steel Pieces, Drilling, Oil-cooling Channel, Three or Four Ring Grooves, Ceramic Spraying and Hard Iron Plating etc;

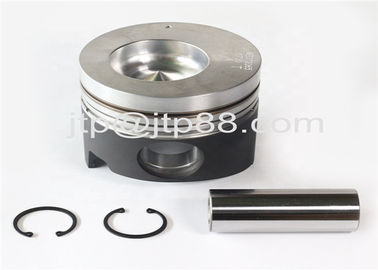

ENGINE PISTON PICTURE AS BELOW:



102mm Diameter Diesel Engine Piston For Truck / Excavator 3B Engine Piston Size 130101-58011 3
