| Place of Origin: | China |
| Brand Name: | JTP |
| Model Number: | D2366 D2366T |
| Certifiion: | ISO9001:2008;ISO/TS16949:2009 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | 5~10days |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| Surface: | Alfin, Anoziding, Bush, Coating | Condition: | 100%new |
|---|---|---|---|
| OEM: | 65-02501-01640887 | Diameter: | 123.0mm |
| Length: | 136.0mm | Packing: | 3.30+3.00+4.00mm |
| Piston Pin Size: | 45*102mm | Piston Comp: | 81.5mm |
| Car Make: | Daewoo | Piston Features: | Sn-plated |
| Appliion: | Engineering Machinery Engine | Size: | Standard Size |
| Shipping: | DHL/TNT/FEDEX/UPS/EMS | ||
| High Light: | icon forged pistons,cast iron piston |
||
High Temperature Resistant Engine Piston D2366 D2366T Piston Kit Sets for Daewoo
SPECIFIIONS:
| DAEWOO D2366 Appliion: No. CyI: 6 Diameter: 123MM |
|||||
| Piston | OEM No. | Compress Height | Total Length | Pin Size | Feature |
| 65.02501-0031 | 81.5 | 136 | 45x107 | ||
| Piston Ring | OEM No. | Size1 | Size2 | ||
| 3.34+3.0+4.0 | |||||
| Cylinder Liner | OEM No. | Size | Flange | ||
| 65.01201-0051A | 123.0x275 | ||||
| Engine Bearing | OEM No. | Main Bearing | Con Rod Bearing | Bush | |
| 6150-21-8000 | 6150-31-3040 | 6150-31-3130 | |||
| Engine Valve (IN) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| 6150-41-4111 | 45.0 | 9.0 | 169.5 | ||
| Engine Valve (EX) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| 6150-42-4210 | 44.0 | 9.0 | 169.5 | ||
| Valve Seat | OEM No. | ||||
| Valve Guide/Sub Parts | OEM No. | ||||
REMARKS:
PISTON TYPES
Piston skirt and crown
Consist of a steel piston head and an aluminium piston skirt which have a moveable connection to each other via the piston pin. Due to great strength and low wear and tear, it is possible to achieve low exhaust emission values for diesel engines that are subjected to particularly high loads.
Piston comes with bushes
In order to make it possible to increase the loads to which the pin boss can be subjected, this piston has pin boss bushes that are made of a special material
Alfin Pistons
Alfin is inserted within the ring grooves when casting. Alfin is made of special austenitic cast iron. It is tightly bonded metallically to piston body and counteracts the wear in the top or second ring groove.
Cooling channel piston
Cooling channel piston effectively reduce piston body working and groove land temperature under high temperature working condition.
PISTON SURFACE TREATMENT
Piston with Tin coating
Tin is coated by exectroanalysis or heat dipping at thickness between 0.001 and 0.003mm. Tin is characterized as soft and oil-friendly which improves running-in efficiency of piston and liner.
Pistons with Phosphating
The phosphating is aimed to improve initial running-in performance. The phosphating layer is easy to wear off and helpful to improve running-in.
Piston roof anodizing
The piston roof is anodized by electrobath, forming thin layer of Al O . This treatment will improve heat resistance, heat conductivity and anticorrosion, it helps prevent piston roof burn-up.
Graphipe printing and spratyed at piston skirt
Graphite is characterized as good lubriing, which helps lubricant adhering to coating surface.
PRODUCT RANGE:
| KOMASU | S6D102 | 6735-31-2110 | 6 | 102 | 105.3 |
| KOMASU | 6D105 | 6137-31-2111 | 6 | 105 | 107.6 |
| KOMASU | S6D105 | 6136-31-2111 | 6 | 105 | 107.6 |
| KOMASU | S6D108 | 6222-31-2116 | 6 | 108 | 113.8 |
| KOMASU | S6D110 | 6 | 110 | 116.2 | |
| KOMASU | S6D125 | 6150-31-2112 | 6 | 125 | 131.1 |
| KOMASU | S6D125(T) | 6151-31-2171 | 6 | 125 | 131.1 |
| KOMASU | NH220 | 6620-31-2010 | 6 | 130 | 158.7 |
| KOMASU | 4D120 | 6113-31-2110 | 4 | 120 | 135 |
| KOMASU | 4D130 | 6114-31-2111 | 4 | 130 | 135 |
| CUMMINS | 6BT145 | 6 | 102 | 105.3 | |
| CUMMINS | 6BT153 | 6 | 102 | 105.3 | |
| CUMMINS | 6BTA | 3907156 | 6 | 102 | 105.3 |
| CUMMINS | 6BTAA-7790 | 6 | 102 | 105.3 | |
| CUMMINS | 6BTAA-P2304*4 | 6 | 102 | 105.3 | |
| CUMMINS | 6CT210 | 3923163 | 6 | 114 | 120.4 |
| CUMMINS | 6CT240 | 3923164 | 6 | 114 | 120.4 |
| CUMMINS | 6CT-3917707 | 3917707 | 6 | 114 | 120.4 |
| CUMMINS | 6CT-3925878 | 3925878 | 6 | 114 | 120.4 |
| CUMMINS | NT855 | 3048650 | 6 | 140 | 159.4 |
| CUMMINS | NT855 | 3017349 | 6 | 140 | 159 |
| CUMMINS | NT855 | 3017348 | 6 | 140 | 159.1 |
| CUMMINS | NT855 | 3048808 | 6 | 140 | 159.7 |
| CUMMINS | NT855 | 3253953 | 6 | 140 | 159.5 |
| CUMMINS | NT855 | 3051557 | 6 | 140 | 159.7 |
| CUMMINS | NT855 | 3095739 | 6 | 140 | 159.5 |
| S6K | 6 | 102 | 97.7 | ||
| IW6757 | 6 | 120.6 | 130 | ||
| XIW6757-8N3102 | 8N3102 | 6 | 120.6 | 130 | |
| 8N3182 | 6 | 120.6 | 130 | ||
| 68C | 9Y7212 | 6 | 137 | 136.9 | |
| 68E | 9Y4004 | 6 | 137 | 136.9 | |
| DEUTZ | FL413 | 8 | 125 | 138.58 | |
| DEUTZ | 1013ECP | 6 | |||
| MAZAD | K2400 | 4 | |||
| MAZAD | K2700 | 4 | |||
| MAZAD | SL-BD17B | 4 | |||
| HUUNDIA | 4D55 | 91.1 | 76 | ||
| HUUNDIA | 4D56 | 91.1 | 88.5 | ||
| HUUNDIA | 4D32 | 23411-41210 | 4 | 104 | 110.8 |
| HUUNDIA | 4D31T | 23411-41410 | 4 | 100 | 110.5 |
| HUUNDIA | 6D16 | 23411-93400 | 6 | 118 | 116.3 |
| HUUNDIA | 6D16T | 23422-93400 | 6 | 118 | 116.3 |
| DAEWOO | DB58 | 6 | 102 | 98.1 | |
| DAEWOO | DB58T | 6 | 102 | 98.1 | |
| DAEWOO | D1146 | 6 | 111 | 121.3 | |
| DAEWOO | D1146T | 6 | 111 | 121.3 | |
| DAEWOO | D2366 | 6 | 123 | 136 | |
| DAEWOO | D2366T | 6 | 123 | 136 |
PISTON PACKING AND SHIPPING:
OUR ADVANTAGE:
1. High quality and competitive price.
2. Long life span, good sales-after service.
3. 100% new, strict inspection & test.
4. Standard export packing.
5. One year quality warranty.
6. Have strong stock, small order is acceptable
7. Various kinds are selectable with different car models.
8. Improve power and increase torque
9. Improve fuel economy and reduce fuel consumption
10. Reduce waste emissions and reduce environmental pollution
FAQ:
1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.
2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.
3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.
4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.
5.How to buy with you?
You can use "Chat now!" or email to us.
6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.
7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.
8.What information should I let you know if I want to get a quotation?
To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

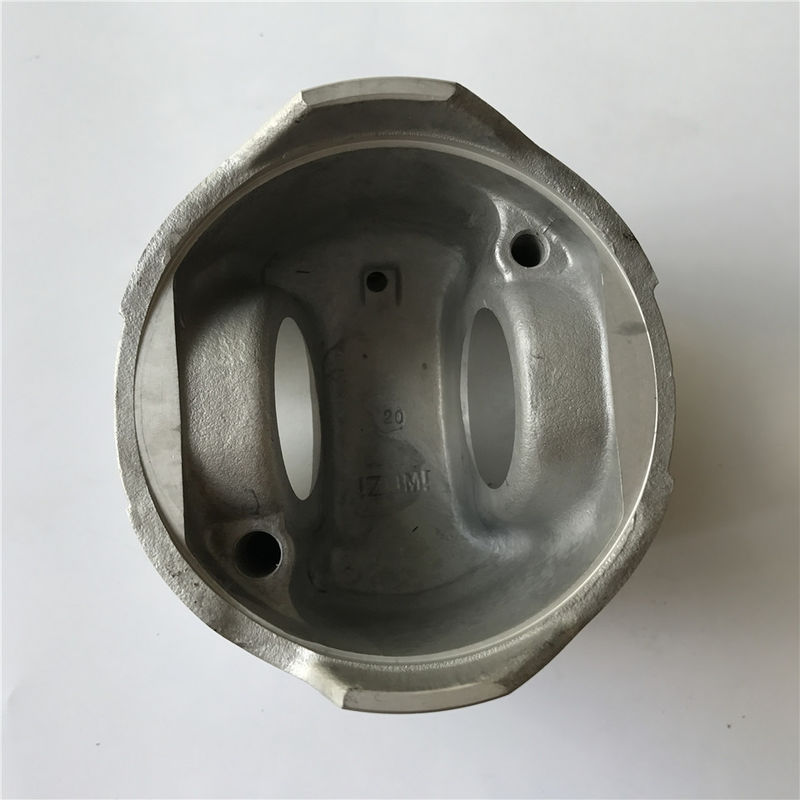

ENGINE PISTON PICTURE AS BELOW:
