| Place of Origin: | China |
| Brand Name: | JTP |
| Model Number: | 2848T |
| Certifiion: | ISO9001:2008;ISO/TS16949:2009 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | 5~10days |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| Surface: | Alfin, Anoziding, Bush, Coating | Condition: | 100%new |
|---|---|---|---|
| OEM: | - | Diameter: | 128.0mm |
| Length: | 128.2mm | Packing: | 3.30+3.00+4.00mm |
| Piston Pin Size: | 46*102mm | Piston Comp: | 81.3mm |
| Car Make: | Daewoo | Piston Features: | Sn-plated |
| Appliion: | Engineering Machinery Engine | Size: | Standard Size |
| Shipping: | DHL/TNT/FEDEX/UPS/EMS | ||
| High Light: | icon forged pistons,cast iron piston |
||
Machinery Engine Parts Piston 2848T Engine Piston Cylinder Liner Kit 128.0mm
SPECIFIIONS:
| Iteam Name | Piston |
| Engine Type | Diesel Engine |
| Engine Model | 2848T |
| Cylinder Diameter | 128MM |
| Total Length | 128.2MM |
| Piston Features | Graphite,alfin |
| OEM | / |
| CYL. NO | 8 |
| Working life | 1 Year |
REMARKS:
PISTON SURFACE TREATMENT
Piston with Tin coating
Tin is coated by exectroanalysis or heat dipping at thickness between 0.001 and 0.003mm. Tin is characterized as soft and oil-friendly which improves running-in efficiency of piston and liner.
Pistons with Phosphating
The phosphating is aimed to improve initial running-in performance. The phosphating layer is easy to wear off and helpful to improve running-in.
Piston roof anodizing
The piston roof is anodized by electrobath, forming thin layer of Al O . This treatment will improve heat resistance, heat conductivity and anticorrosion, it helps prevent piston roof burn-up.
Graphipe printing and spratyed at piston skirt
Graphite is characterized as good lubriing, which helps lubricant adhering to coating surface.
PRODUCT RANGE:
| KOMASU | S6D102 | 6735-31-2110 | 6 | 102 | 105.3 |
| KOMASU | 6D105 | 6137-31-2111 | 6 | 105 | 107.6 |
| KOMASU | S6D105 | 6136-31-2111 | 6 | 105 | 107.6 |
| KOMASU | S6D108 | 6222-31-2116 | 6 | 108 | 113.8 |
| KOMASU | S6D110 | 6 | 110 | 116.2 | |
| KOMASU | S6D125 | 6150-31-2112 | 6 | 125 | 131.1 |
| KOMASU | S6D125(T) | 6151-31-2171 | 6 | 125 | 131.1 |
| KOMASU | NH220 | 6620-31-2010 | 6 | 130 | 158.7 |
| KOMASU | 4D120 | 6113-31-2110 | 4 | 120 | 135 |
| KOMASU | 4D130 | 6114-31-2111 | 4 | 130 | 135 |
| CUMMINS | 6BT145 | 6 | 102 | 105.3 | |
| CUMMINS | 6BT153 | 6 | 102 | 105.3 | |
| CUMMINS | 6BTA | 3907156 | 6 | 102 | 105.3 |
| CUMMINS | 6BTAA-7790 | 6 | 102 | 105.3 | |
| CUMMINS | 6BTAA-P2304*4 | 6 | 102 | 105.3 | |
| CUMMINS | 6CT210 | 3923163 | 6 | 114 | 120.4 |
| CUMMINS | 6CT240 | 3923164 | 6 | 114 | 120.4 |
| CUMMINS | 6CT-3917707 | 3917707 | 6 | 114 | 120.4 |
| CUMMINS | 6CT-3925878 | 3925878 | 6 | 114 | 120.4 |
| CUMMINS | NT855 | 3048650 | 6 | 140 | 159.4 |
| CUMMINS | NT855 | 3017349 | 6 | 140 | 159 |
| CUMMINS | NT855 | 3017348 | 6 | 140 | 159.1 |
| CUMMINS | NT855 | 3048808 | 6 | 140 | 159.7 |
| CUMMINS | NT855 | 3253953 | 6 | 140 | 159.5 |
| CUMMINS | NT855 | 3051557 | 6 | 140 | 159.7 |
| CUMMINS | NT855 | 3095739 | 6 | 140 | 159.5 |
| S6K | 6 | 102 | 97.7 | ||
| IW6757 | 6 | 120.6 | 130 | ||
| XIW6757-8N3102 | 8N3102 | 6 | 120.6 | 130 | |
| 8N3182 | 6 | 120.6 | 130 | ||
| 68C | 9Y7212 | 6 | 137 | 136.9 | |
| 68E | 9Y4004 | 6 | 137 | 136.9 | |
| DEUTZ | FL413 | 8 | 125 | 138.58 | |
| DEUTZ | 1013ECP | 6 | |||
| MAZAD | K2400 | 4 | |||
| MAZAD | K2700 | 4 | |||
| MAZAD | SL-BD17B | 4 | |||
| HUUNDIA | 4D55 | 91.1 | 76 | ||
| HUUNDIA | 4D56 | 91.1 | 88.5 | ||
| HUUNDIA | 4D32 | 23411-41210 | 4 | 104 | 110.8 |
| HUUNDIA | 4D31T | 23411-41410 | 4 | 100 | 110.5 |
| HUUNDIA | 6D16 | 23411-93400 | 6 | 118 | 116.3 |
| HUUNDIA | 6D16T | 23422-93400 | 6 | 118 | 116.3 |
| DAEWOO | DB58 | 6 | 102 | 98.1 | |
| DAEWOO | DB58T | 6 | 102 | 98.1 | |
| DAEWOO | D1146 | 6 | 111 | 121.3 | |
| DAEWOO | D1146T | 6 | 111 | 121.3 | |
| DAEWOO | D2366 | 6 | 123 | 136 | |
| DAEWOO | D2366T | 6 | 123 | 136 |
PISTON PACKING AND SHIPPING:
OUR ADVANTAGE:
1. High quality and competitive price.
2. Long life span, good sales-after service.
3. 100% new, strict inspection & test.
4. Standard export packing.
5. One year quality warranty.
6. Have strong stock, small order is acceptable
7. Various kinds are selectable with different car models.
8. Improve power and increase torque
9. Improve fuel economy and reduce fuel consumption
10. Reduce waste emissions and reduce environmental pollution
FAQ:
1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.
2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.
3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.
4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.
5.How to buy with you?
You can use "Chat now!" or email to us.
6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.
7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.
8.What information should I let you know if I want to get a quotation?
To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

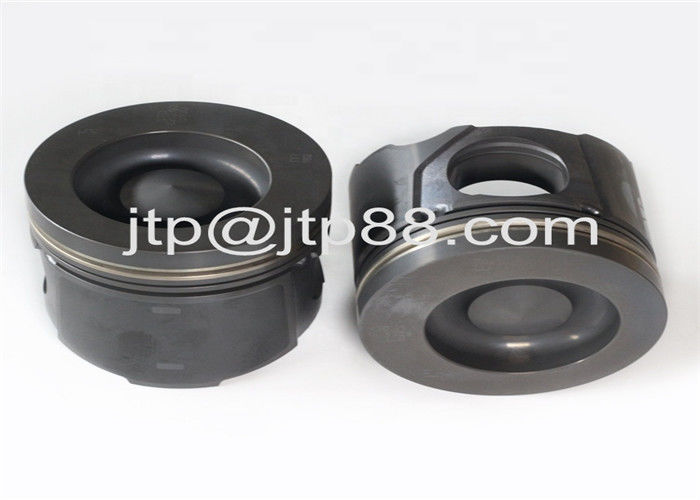

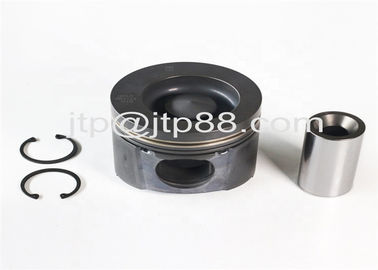

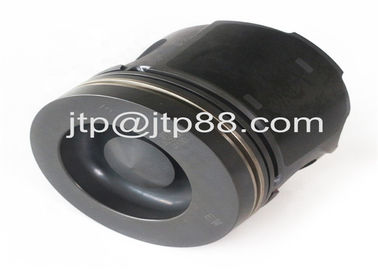

ENGINE PISTON PICTURE AS BELOW:
