| Place of Origin: | China |
| Brand Name: | JTP |
| Model Number: | 4D32(K1) |
| Certifiion: | ISO9001:2008;ISO/TS16949:2009 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | 5~10days |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| Surface: | Alfin, Graphite,Tinned | Condition: | 100%new |
|---|---|---|---|
| OEM: | ME012174 ME018274 | Diameter: | 104.0mm |
| Length: | 110.9mm | Piston Comp: | 60.7mm |
| Piston Pin Size: | 34*84mm | Piston Ring Sieze: | 3.0+2.0+4.0mm |
| Car Make: | Mitsubishi Hyundai | Piston Features: | Sn-plated |
| Appliion: | Engineering Machinery Engine | Material: | Aluminum Alloy |
| High Light: | icon forged pistons,cast iron piston |
||
Diesel engin Piston for Mitsubishi 4D32(K1) Vehicle H3A Liner Kit ME012174 ME018274
SPECIFIIONS:
| Item Name | Piston |
| Engine Type | Diesel Engine |
| Engine Model | 4D32 |
| Cylinder Diameter | 104.00MM |
| Total Length | 110.70MM |
Piston Features |
tinned,alfin |
| OEM | ME012174 |
CYL. NO |
4 |
Working life |
1 Years |
PARAMETER OF PISTON :
| CODE NO. | MH0050X | MODEL | C50 |
| CYLINDER NO. | 4 | HEAD TYPE NO. | 4 |
| TOTAL HEIGHT | 50.5 mm | COMP. HEIGHT | 24.5 mm |
| CYLINDER DIA. | 39 mm | ||
| RING | COMP. | OIL | |
| 1.2-2 mm | 2.5-1 mm | ||
| PIN | DIA. | LENGTH | |
| 13 mm | 31 mm | ||
| MOQ |
1000PCS |
||
REMARKS:
PISTON SURFACE TREATMENT
Piston with Tin coating
Tin is coated by exectroanalysis or heat dipping at thickness between 0.001 and 0.003mm. Tin is characterized as soft and oil-friendly which improves running-in efficiency of piston and liner.
Pistons with Phosphating
The phosphating is aimed to improve initial running-in performance. The phosphating layer is easy to wear off and helpful to improve running-in.
Piston roof anodizing
The piston roof is anodized by electrobath, forming thin layer of Al O . This treatment will improve heat resistance, heat conductivity and anticorrosion, it helps prevent piston roof burn-up.
Graphipe printing and spratyed at piston skirt
Graphite is characterized as good lubriing, which helps lubricant adhering to coating surface.
PAYMENT ATTENTION PLEASE:
One set for one engine repairing .
Your goods will be sent out in 1- 3 days after we received your payment ,
Your goods will be packed into the neutral paper carton , any requirement on packing ,please leave us message
Please fill in your detailed address and phone number for international express when you placing the order
More photos and detals , welcome to chat with us online
PRODUCT RANGE:
| OEM No. | Model | CYL DIA | OD*L |
| AA100-11-101 | TOWNER | 70 | 18 60 |
| PRIDE | 68 | 20 52 | |
| PRIDE | 71 | 20 52 | |
| OKKY1-11-SAO | PRIDE 1.3 | 71 | 20 52 |
| OK480-11-SAO | K2700 | 92 | 31.75 75 |
| OK6ZI-II-SAO | JS | 94.5 | 30 76 |
| OK4Y2-11SAO | K3600AL | 100 | 34 82 |
| K4YO-11-SAO | K3500AL | 100 | 34 82 |
| OK7Z1-11-SAO | JT3.0 | 98 | 30 79 |
| DOHC | 78 | 20 61 | |
| SOHC | 78 | 20 61 | |
| OK7ZO-11-SAO | K2400 | 92 | 28 75 |
| OEM No. | Model | CYL DIA | OD*L |
| 23410-02700 | ATOS 1.0 | 66 | 17 46.5 |
| 23410-02470 | ATOS 1.1 | 67 | 17 46.5 |
| 23410-22400 | ACCENT/G4EB | 75.5 | 18 47.5 |
| 23410-22612 | VERNA/G4EK | 75.5 | 18 47.5 |
| 1.6 | 77.5 | 20 59 | |
| 23410-26111 | ELANTRA 1.6/G4ED | 76.5 | 18 47 |
| 1.8 | 82 | 20 59 | |
| 2 | 82 | 20 59 | |
| SONATA 2.0 NEW | 86 | ||
| SONATA 2.4 NEW | 88 | ||
| SANTE FE 3CAAD | 88 | ||
| 69.6 | 69.5 | 23 57 | |
| 79.47 | 79.5 | 26 64 | |
| 23410-41200 | K1/D4AF | 104 | 34 84 |
| 23410-42703 | D4BB | 91.1 | 29 75 |
| 23410-42411 | D4BA | 91.1 | 29 75 |
| 23410-42544/42411 | D4BH | 91.1 | 29 75 |
| T1 | 91.1 | 29 74 | |
| 23410-22260 | G4EH | 71.5 | 18 47.3 |
| 23410-22511 | ACCENT 1.5 | 75.5 | 18 47 |
| 23410-2B000 | AVANTE 1.6 | 77 | 18 52 |
| VECTRA 1.6 | F16D | 79 | 18 55 |
| 23410-27924 | ACCENT/D4EA | 83 | 28 65 |
| ELANTRA 1.8 | 81 | 20 49 | |
| SONATA 2.0 | 86 | 21 60 | |
| SONATA 2.4 | 88 | 21 60 |
OUR FACTORY:
Guangzhou Teikuko Auto Parts Co., Ltd. was founded in 1997, specializes in producing cylinder liners, piston products, covering more than 30 brands, more than 300 kinds of engine type, widely used in various heavy diesel engine (such as Mitsubishi, Isuzu, Nissan, Hino, BMW, Mercedes, Cummins, etc.), Our company has an independent development department, quality control department and laboratory, has a number of highly qualified management personnel and research and development, innovation and strong, All of our products has passed ISO9001: 2000 quality system certifiion. We have now formed the production capacity of annual output value of 500 000 Cylinder / piston, more than 95 percent of products exported to Southeast Asia, Middle East, South America, Africa and other regions, is your reliable partner.
FAQ:
1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.
2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.
3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.
4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.
5.How to buy with you?
You can use "Chat now!" or email to us.
6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.
7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.
8.What information should I let you know if I want to get a quotation?
To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

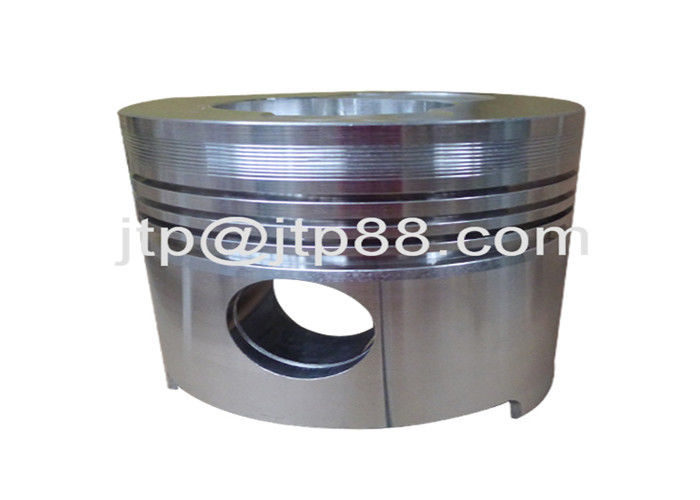

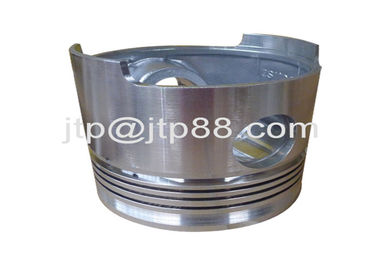

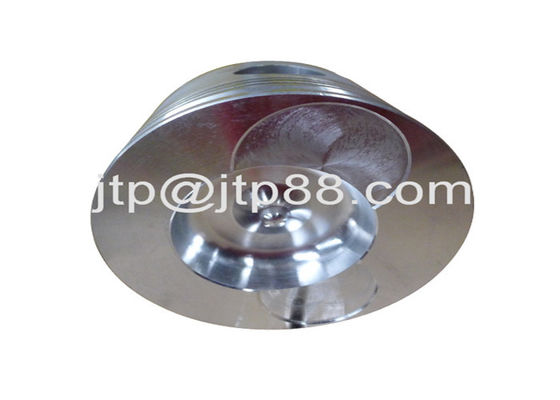

ENGINE PISTON PICTURE AS BELOW:
