6DH135 12DH Engineering Machinery Parts Engine Piston Rings 32317-03002 32017-03001

6DH135 12DH Engineering Machinery Parts Engine Piston Rings 32317-03002 32017-03001

  • 6DH135 12DH Engineering Machinery Parts Engine Piston Rings 32317-03002 32017-03001
  • 6DH135 12DH Engineering Machinery Parts Engine Piston Rings 32317-03002 32017-03001
  • 6DH135 12DH Engineering Machinery Parts Engine Piston Rings 32317-03002 32017-03001
  • 6DH135 12DH Engineering Machinery Parts Engine Piston Rings 32317-03002 32017-03001
6DH135 12DH Engineering Machinery Parts Engine Piston Rings 32317-03002 32017-03001
Product Details:
Place of Origin: China
Brand Name: JTP
Certification: ISO9001:2008;ISO/TS16949:2009
Model Number: 6DH135 12DH
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with green sack for outer packing
Delivery Time: One month or one week if we have stock
Payment Terms: T/T or western Union
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
OEM: 32317-03002 32017-03001 Material: Steel/ Ductile Cast Iron/ Alloy Cast Iron
1st Ring: 4.0mm 2nd Ring: 2.5mm
3rd Ring: 6.0mm Diameter: 135mm
RIK Set No.: 20045 21510 20090 Cyl No.: 6
Quality: 100% Professional Test Car Make: Mitsubishi
Type: Piston Ring Place Of Origin: Guangzhou, China
High Light:

cast iron piston rings

,

piston rings set

6DH135 12DH Engineering machinery parts engine Piston Ring 32317-03002 32017-03001






SPECIFICATIONS:





Engine type
Diesel Engine Piston Ring
Car model 6DH135 12DH
Size
STD
Model number
Use for MITSUBISHI 6DH135 12DH
Gas control ring



914 CR+/911 IW CR

Warranty
100000 Miles
Oil control ring 947 EX CR





TYPES OF PISTON RING:





6DH135 12DH Engineering Machinery Parts Engine Piston Rings 32317-03002 32017-03001 0



CAST IRON RINGS :



These rings are made from graded Prelatic Cast Iron alloy. Machined to close tolerances as recommended by O.E. (Original Equipment)



STEEL RING CHROME PLATED :



These rings are made of high Tensile special steel machined to proper sizes with Chrome plating from 100 to 200 microns as required by the buyers. This is used in Heavy Duty Diesel Engines.



SG IRON CASTED RINGS :



These rings are made of SG Iron castings and recommended for Heavy Duty Diesel Engines, specially 3 ring design Piston.





PISTON RING FUCTION:



Piston ring functions include sealing, adjusting oil (oil control), heat conduction (heat transfer),

and guiding (supporting). Sealing: It means sealing the gas, preventing the gas in the combustion chamber from leaking to the crankcase, keeping the leakage of the gas to a minimum and improving the thermal efficiency. Air leakage not only reduces the power of the engine, but also degrades the oil. This is the main task of the air ring.



Adjusting the oil (oil control): scraping off the excess oil on the cylinder wall while making the cylinder wall thin The thin oil film ensures normal lubrication of the cylinder and piston and ring, which is the main task of the oil ring. In modern high-speed engines, special attention is paid to the role of the piston ring to control the oil film; heat conduction: the heat of the piston is transmitted to the cylinder liner through the piston ring, that is, cooling. According to reliable data, 70-80% of the heat received by the piston crown in the non-cooling piston is dissipated through the piston ring to the cylinder wall. 30-40% of the cooling piston is transmitted to the cylinder through the piston ring. Supported by: the piston ring keeps the piston in the cylinder, preventing the piston from directly contacting the cylinder wall, ensuring smooth movement of the piston, reducing frictional resistance, and preventing the piston from knocking on the cylinder. The piston of a general gasoline engine uses two gas rings and one oil ring, while the diesel engine usually uses two gas rings and one oil ring.





OUR FACTORY :



We are a professional R&D and production manufacturer in marine engine parts, manifold, piston and cylinder liners. Our products have various industrial applications in marine engine, automotive, engineering vehicle, agricultural vehicle and locomotive. We can make most cylinder kits according to customers’ special need.


We have been certified to ISO9001:2008;ISO/TS16949:2009, continuously invests in process and quality improvement. We are always committed to improve all aspects of our business, from people, equipment to the entire production programs. Our willing is to always provide the best quality piston and cylinder liner for your high-performance engines.



6DH135 12DH Engineering Machinery Parts Engine Piston Rings 32317-03002 32017-03001 1



OUR PACKING :





Standard export hard cartons to assure the safety during the transformation.



Put foam bag inside to protect the products.



We can offer neutral clean box, original box or customer's special brand box.



Custom-made boxes are only avaliable for big order with large quantity.





OUR SHIPPING:



Ship by air or express for the products with small volumn or little amount. Ship by vessel for large volumn products.



Please inform your shipping methods when place an order, or we can choose the cheapest method for you from our own forwarders.



For our stock products, we can ship to you within 3 days, for the products out of stock, we will inform you advance.



Please note that the shipping charge for brand products would be much expensive than neutral products.



6DH135 12DH Engineering Machinery Parts Engine Piston Rings 32317-03002 32017-03001 2



DESTRIPTION:





Engine c.c. Vehicle Model TEIKUKO Product Code

Chassis Type TEIKUKO Series No.
4G92 1597 Lancer TEIKUKO-AG-20118


4G67 1836 Galant (sigma) TEIKUKO-AG-20119
    Eterna
    Eterna SAVA
4G52 1995 Galant (sigma) Sapporo TEIKUKO-AG-20120
    Celeste
    Jeep
    A57 A78 A115
    A123 J58
4G63 1997 Galant(sigma).Sapporo TEIKUKO-AG-20121
    A163
    A164
    For Leaded Gasoline TEIKUKO-AG-20122


    Lancer TEIKUKO-AG-20123
    Eclipse
    Chariot RVR
G63B 1997 For Lead-free Gasoline TEIKUKO-AG-20124
G63B T/C   Galant (sigma)
    Chariot Paiero
4G64 2350 For Leaded Gasoline TEIKUKO-AG-20125


4G53 2384 Jeep Canter Rosa TEIKUKO-AG-20126
    FC211 BC211
    J26 J38 J46 J56
4G54B 2555 Jeep TEIKUKO-AG-20127
    Debonair
    Galant (sigma)Sapporo
    Dodge Challenger
6G72 2972 3000GT TEIKUKO-AG-20128
DOHC

6G72 2972 Sigma TEIKUKO-AG-20129


6G74 3500 Debonair TEIKUKO-AG-20130


D400     TEIKUKO-AD-60201



K4E 1415   TEIKUKO-AD-60202


4D65 1795 Mirage TEIKUKO-AD-60203


4D68NA 1998 Galant TEIKUKO-AD-60204
    Proton

4DQ5 2084 Canter TEIKUKO-AD-60205
    For Lift
    FD15
    Canter TEIKUKO-AD-60206


4D55T 2346 Galant TEIKUKO-AD-60207









PRODUCT ADVANTAGE:




1: Original material standard according OEM technical drawing



2: Premium quality standard guaranteed



3: Competitive and reasonable price



4: Long lasting and reliable working life time



5: Long exporting history



6: Positive feedback from abroad market



7: Able to produce according your specification with technical drawing



8: Standard packing or according your specification requested



9: Provide product guarantee period



10: Sample order be acceptable





6DH135 12DH Engineering Machinery Parts Engine Piston Rings 32317-03002 32017-03001 3

FAQ:





1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.

2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.

3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.

4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.

5.How to buy with you?
You can use "Chat now!" or email to us.

6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.

7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.

8.What information should I let you know if I want to get a quotation?

To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

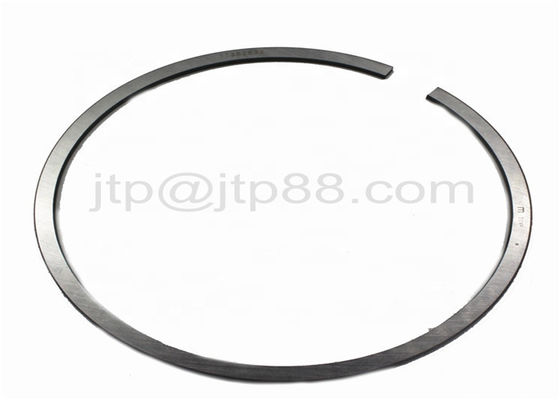

PISTON RING PICTURE AS BELOW:


 6DH135 12DH Engineering Machinery Parts Engine Piston Rings 32317-03002 32017-03001 4
