| Place of Origin: | China |
| Brand Name: | JTP/YJL |
| Model Number: | 4DQ5 |
| Certifiion: | ISO9001:2008;ISO/TS16949:2009 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | 5~10days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs per month |
| Cylinder Liner OEM: | 30607-50301 | Piston OEM: | 30617-57105 |
|---|---|---|---|
| Material: | Aluminium Alloy | Car Make: | Mitsubishi |
| Size: | STD & Oversize | Piston Diameter: | 84.0mm |
| Piston Length: | 92.3mm | Pin Size: | 25x72.5mm |
| Liner Length: | 83.0mm(SF) 84.0mm9FF) | Piston Ring Size: | 2.5 2.0 4.5mm |
| Warranty: | 1 Year | Condition: | Liner Kit/ Rubuild Kit |
| Appliion: | Engineering Machinery Engine | Packing: | Neutral Packing |
| High Light: | engine liner kit,cylinder liner replacement |
||
Diesel auto part Piston Liner Kit 4DQ5 Rebuild Kit With Piston ring 30607-50301 30617-57105
SPECIFIION:
| MITSUBISHI 4DQ5 Appliion: FORK LIFT No. CyI: 4 Diameter: 84.0MM |
|||||
| Piston | OEM No. | Compress Height | Total Length | Pin Size | Feature |
| 30617-57105 | 45.3 | 92.3 | 25x72.5 | ||
| Piston Ring | OEM No. | Size1 | Size2 | ||
| 30615-51011 | 2.5+2.0+4.5 | ||||
| Cylinder Liner | OEM No. | Size | Flange | ||
| 30607-50301 | 84x87x162 | ||||
| Engine Bearing | OEM No. | Main Bearing | Con Rod Bearing | Bush | |
| 30609-11011 | 30619-22102 | ||||
| Engine Valve (IN) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| 30604-00102 | 40.0 | 8.0 | 118.0 | ||
| Engine Valve (EX) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| 30604-01101 | 31.0 | 8.0 | 118.0 | ||
| Valve Seat | OEM No. | ||||
| Valve Guide/Sub Parts | OEM No. | ||||
ABOUT THE CYLINDER LINER:
Name of Material |
C | S | Si | P | Mn | Cr | B | Cu | Ni | V+Ti | Mo | Mechanical Properties |
| Boron Cast Iron | 2.8~3.6 | <=0.12 | 2.0~2.7 | <=0.5 | 0.7~1.2 | 0.3~0.5 | 0.04~0.08 | Brinell Hardness>210HB, σb>=200Mpa |
||||
| Boron Copper Gray Cast Iron | 2.8~3.6 | <0.2 | 2.0~2.7 | <=0.5 | 0.7~1.2 | 0.2~0.5 | 0.04~0.08 | Right amount | Brinell Hardness>210HB, σb>=240Mpa |
|||
| Vanadium, Titanium Gray Cast Iron | 3.0~3.6 | <0.2 | 2.0~2.7 | <=0.5 | 0.6~1.2 | 0.2~0.5 | >=0.3 | Brinell Hardness>210HB, σb>200Mpa |
||||
| Molybdenum Nickel Copper Gray Cast Iron | 2.8~3.6 | <0.2 | 1.8~2.4 | <=0.3 | 0.5~1.0 | 0.2~0.5 | 0.3~0.6 | Right amount | Right amount | Brinell Hardness>210HB, σb>235Mpa |
||
| Bainite Gray Cast Iron | 2.7~3.3 | <0.10 | 1.7~2.5 | <=0.3 | 0.3~0.7 | 0.~0.5 | Right amount | Right amount | Right amount | Brinell Hardness270~330HB, σb>350Mpa |
||
| Nickel Copper Gray Cast Iron | 2.8~3.7 | <0.12 | 1.8~2.7 | <=0.3 | 0.5~1.2 | 0.15~0.5 | Right amount | Right amount | Brinell Hardness>200HB, σb>196Mpa |
PISTON TYPES:
Since the piston of the internal combustion engine works under the conditions of high temperature, high pressure and high load, the requirement for the piston is relatively high, so the classifiion of the piston of the internal combustion engine is mainly discussed.
1. According to the fuel used, it can be divided into gasoline engine piston, diesel engine piston and natural gas piston.
2. According to the material of the manufacturing piston, it can be divided into cast iron piston, steel piston, aluminum alloy piston and combined piston.
3. According to the process of manufacturing the piston blank, it can be divided into gravity casting piston, squeeze casting piston and forging piston.
4. According to the working condition of the piston, it can be divided into two egories: non-boost piston and booster piston.
5. According to the purpose of the piston, it can be divided into car piston, truck piston, motorcycle piston, marine piston, tank piston, tractor piston, lawn mower piston and so on.
CYLINDER LINER :
The engine piston, piston ring, piston pin, cylinder sleeve and connecting rod copper sleeve, circlip, cylinder sleeve water blocking ring are called cylinder liner components (commonly known as four matching, six matching, seven matching). It is the moving component of the engine. It cooperates with the fuel system and the valve train to complete the engine intake, compression, combustion work and exhaust stroke, and converts the chemical energy into mechanical energy to output the power. Because it is subject to strong mechanical and thermal loads, it is the most important and most vulnerable component of the engine.
DESTRIPTION:
| W04D | 13216-1460 | W06D | 13216-1470 |
| W04D-B | WO4D | 13216-1460 | |
| W04D | 13216-2220 | WO4D W06E | 13211-2070 13216-1670 |
| W04D-TK | 13216-3250 | W04D-NEW | 13216-2220 13211-2390 |
| W06D | 13216-1470 | W04C-T | 13211-1981 |
| W06E | 13211-2070 | W04D-TK | 13216-3250 S130B-E0E00 |
| W06E | 13216-1720 | EH100 | 13211-1170 |
| EH700 | 13216-1181 | H06C | 13216-1540 |
| EH700T | 13211-1740 | H06C-T | 13216-2120 13211-2120 13216-1750 |
| H07C | 13216-2300 | EH700 | 13216-1181 13211-1471 |
| H07CT | 13211-2740 | 13216-1390 | |
| H07CT | 13211-2760 | H07C-MA | 13216-2300 13211-2161 |
| HO7D | 13211-1980 | HO7C-LA | 13216-2290 13211-2580 |
| JO8E(BUSH) | 13306-1080 | 13216-1771G | |
| JO8C(BUSH) | 13306-1060 | H07C | 13216-1500 13211-1581 |
| JO8C(BUSH) | 13306-1200 | H07C | 13216-1500 |
| EL100 | 13216-1272 | H07D | 13216-1980 |
| EP100 | 13216-1450 | H07D | 13211-237X 13216-1980 |
| EP100 | 13216-1450 | H07D-NEW | 13216-2260 |
| EM100 | 13216-1370 | H07C-T | 13211-2152 13216-2152 |
| M10C | 13216-2320 | H07C | 13211-1471 |
| EF550 | 13211-1140 | J08CT | S1301-E0020/ A130A-E0030 |
| EF750 | 13221-1150 | JC8C | 13306-1200 |
| EF750T | J08CT | 13306-1200 | |
| EK100 | 13216-1220A | JC8C | 13306-1060 |
| EK200 | 13211-1900 | J08CT | 13306-1012G |
| F17C | 13226-1800C | J08C-T | 13306-1012G |
| F17C-R | 13226-1180 13221-1201 | J08C | 13216-2631 |
| F17E-L | 13216-2110 | JO8C-CNG | |
| F17E-R | 13226-1210 | J05C | 13218-78011 13216-2922 |
| V22C-L | 13216-1842 | EL100 | 13211-1563 |
| V22C-R | 13226-1162 | XZU | 13216-E0010 |
| F20C-B/V25C-L | 13216-2323 | EP100-1 | 13216-2080 |
| F20C-B/V25C-R | 13226-1263 | EP100T | 13216-1450 |
| F20C-L | 13216-2671 | P09C | 13216-2080 |
| F20C-R | 13226-1321 | P09C | 13211-2061 13216-2460 |
| EK100 | 13211-1036 13216-1224 | EM100 | 13216-1370 13211-1700 |
| EK200 | 13216-1530 13211-1900 | M10C | 13216-2411 13211-2320 |
| F17D-L | 13216-2050 | EF550-L | 13216-1560 |
| F17D-R | 13221-1221 | EF550-R | 13226-1140 |
| K13D | 13216-2470 13211-2100 | K13C | 13211-3260 13216-2140 |
| F17C-L | 13216-1910 13211-2281 | K13C 24V | 13216-2140 |
| EF750-R | 13226-1170 13226-1152 | EF750-L | 13216-1860 13216-1742 |
PACKAGE AND SHIPPING:
1. Carton box
2. Neutral packing or our own packing
3. According to customer's requirement
4. Shipping: by sea or by ship (DHL, TNT, UPS, FEDEX, EMS)
| Packaging Details | All the products adopt independent packaging cartons with detailed goods packing list on carton |
| Delivery Detail | 3-5 days if in stock piston or 45 days for production |
| Shipping Detail | a.by express: Fedex, UPS, DHL,TNT b. By sea: LCL or FCL cooperating with your appointed shipping agent or our own ones |
ADVANTAGE:
1. High quality and competitive price.
2. Long life span, good sales-after service.
3. 100% new, strict inspection & test.
4. Standard export packing.
5. One year quality warranty.
6. Have strong stock, small order is acceptable
7. Various kinds are selectable with different car models.
8. Improve power and increase torque
9. Improve fuel economy and reduce fuel consumption
10. Reduce waste emissions and reduce environmental pollution.
FAQ:
1. Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.
2. Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.
3. How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.
4. Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.
5. How to buy with you?
You can use "Chat now!" or email to us.
6. What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.
7. If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.
8. What information should I let you know if I want to get a quotation?
To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

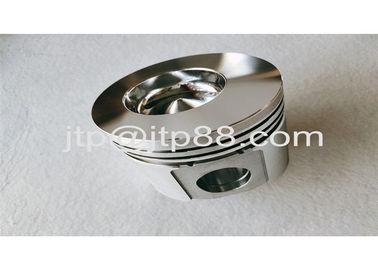

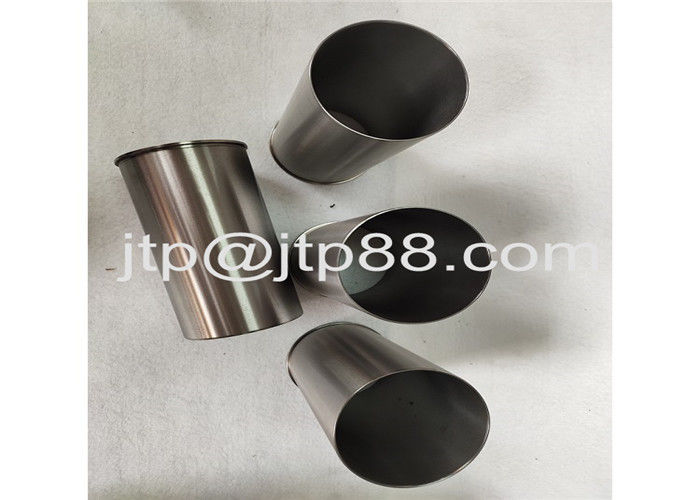

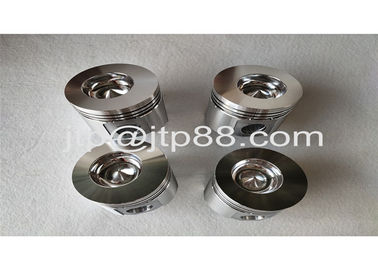

LINER KIT PICTURE AS BELOW:
