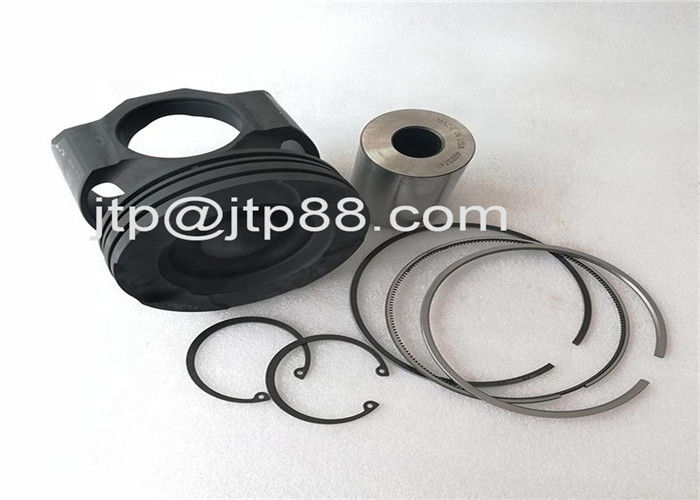

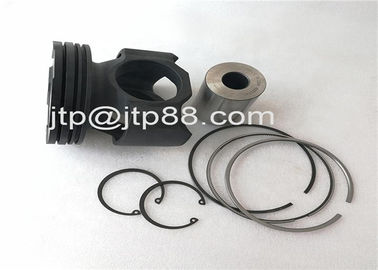

Full Cylinder Liner Kit 4D56T Machine Parts Liner Repair Sets MD103308 MD050011

Full Cylinder Liner Kit 4D56T Machine Parts Liner Repair Sets MD103308 MD050011

  • Full Cylinder Liner Kit 4D56T Machine Parts Liner Repair Sets MD103308 MD050011
  • Full Cylinder Liner Kit 4D56T Machine Parts Liner Repair Sets MD103308 MD050011
  • Full Cylinder Liner Kit 4D56T Machine Parts Liner Repair Sets MD103308 MD050011
  • Full Cylinder Liner Kit 4D56T Machine Parts Liner Repair Sets MD103308 MD050011
Full Cylinder Liner Kit 4D56T Machine Parts Liner Repair Sets MD103308 MD050011
Product Details:
Place of Origin: China
Brand Name: JTP/YJL
Model Number: 4D56T
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with green sack for outer packing
Delivery Time: 5~10days
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Cylinder Liner OEM: A4858/C9115/C195010 Piston OEM: MD103308 MD050011
Material: Aluminium Alloy Car Make: Mitsubishi
Size: STD & Oversize Piston Diameter: 91.1mm
Piston Length: 88.7mm Pin Size: 29*75mm
Liner Length: 90.1mm(SF) 91.1mm9FF) Piston Ring Size: 2.5+2.0+4.0mm
Warranty: 1 Year Condition: Liner Kit/ Rubuild Kit
Appliion: Engineering Machinery Engine Packing: Neutral Packing
High Light:

engine liner kit

,

cylinder liner replacement

Full Cylinder liner kits 4D56T Machine Parts Liner Repair Kits MD103308 MD050011







SPECIFIION:





Product Name: Liner kit OE No.:

A4858/C9115/C195010

MD103308 MD050011

Material: Shiny alfin, head anodized Cylinder Dia.: 91.1mm
Engine Code: - Car Model: Mitsubishi
Color: Metallic color Packing: Neutral Packing or Customized





ABOUT THE CYLINDER LINER:






Name of Material
C S Si P Mn Cr B Cu Ni V+Ti Mo Mechanical Properties
Boron Cast Iron 2.8~3.6 <=0.12 2.0~2.7 <=0.5 0.7~1.2 0.3~0.5 0.04~0.08         Brinell Hardness>210HB,
σb>=200Mpa
Boron Copper Gray Cast Iron 2.8~3.6 <0.2 2.0~2.7 <=0.5 0.7~1.2 0.2~0.5 0.04~0.08 Right amount       Brinell Hardness>210HB,
σb>=240Mpa
Vanadium, Titanium Gray Cast Iron 3.0~3.6 <0.2 2.0~2.7 <=0.5 0.6~1.2 0.2~0.5       >=0.3   Brinell Hardness>210HB,
σb>200Mpa
Molybdenum Nickel Copper Gray Cast Iron 2.8~3.6 <0.2 1.8~2.4 <=0.3 0.5~1.0 0.2~0.5   0.3~0.6 Right amount   Right amount Brinell Hardness>210HB,
σb>235Mpa
Bainite Gray Cast Iron 2.7~3.3 <0.10 1.7~2.5 <=0.3 0.3~0.7 0.~0.5   Right amount Right amount   Right amount Brinell Hardness270~330HB,
σb>350Mpa
Nickel Copper Gray Cast Iron 2.8~3.7 <0.12 1.8~2.7 <=0.3 0.5~1.2 0.15~0.5   Right amount Right amount     Brinell Hardness>200HB,
σb>196Mpa



PISTON TYPES:



Full Cylinder Liner Kit 4D56T Machine Parts Liner Repair Sets MD103308 MD050011 0





Since the piston of the internal combustion engine works under the conditions of high temperature, high pressure and high load, the requirement for the piston is relatively high, so the classifiion of the piston of the internal combustion engine is mainly discussed.


1. According to the fuel used, it can be divided into gasoline engine piston, diesel engine piston and natural gas piston.


2. According to the material of the manufacturing piston, it can be divided into cast iron piston, steel piston, aluminum alloy piston and combined piston.


3. According to the process of manufacturing the piston blank, it can be divided into gravity casting piston, squeeze casting piston and forging piston.


4. According to the working condition of the piston, it can be divided into two egories: non-boost piston and booster piston.


5. According to the purpose of the piston, it can be divided into car piston, truck piston, motorcycle piston, marine piston, tank piston, tractor piston, lawn mower piston and so on.





CYLINDER LINER :



Full Cylinder Liner Kit 4D56T Machine Parts Liner Repair Sets MD103308 MD050011 1



The engine piston, piston ring, piston pin, cylinder sleeve and connecting rod copper sleeve, circlip, cylinder sleeve water blocking ring are called cylinder liner components (commonly known as four matching, six matching, seven matching). It is the moving component of the engine. It cooperates with the fuel system and the valve train to complete the engine intake, compression, combustion work and exhaust stroke, and converts the chemical energy into mechanical energy to output the power. Because it is subject to strong mechanical and thermal loads, it is the most important and most vulnerable component of the engine.





DESTRIPTION:





MITSUBISHI 6DS7 ME024402 6 98 105.3
MITSUBISHI 6D31 ME012858 6 100 110.7
MITSUBISHI 4D31T ME012155 4 100 110.7
MITSUBISHI 6D14 ME032742 6 110 116.15
MITSUBISHI 6D14T ME072047 6 110 116.15
MITSUBISHI 6DB1 30017-93101 6 110 152.5
MITSUBISHI 6DB1P 30017-70100 6 110 139.5
MITSUBISHI 6D15 ME032593 6 113 115.8
MITSUBISHI 6D15 ME032870 6 113 116.1
MITSUBISHI 6D15T ME072055 6 113 116.1
MITSUBISHI 6D16 ME072064 6 118 116.1
MITSUBISHI 6D16T ME072062 6 118 116
MITSUBISHI 6D16T ME072065 6 118 116
MITSUBISHI 6D22 ME052809 6 130 158.2
MITSUBISHI 6D22T ME052902 6 130 158.2
MITSUBISHI 6D22T ME052664 6 130 158.2
MITSUBISHI 6D22T-4MM ME052792 6 130 158.2
MITSUBISHI 8DC81 ME062422 8 135 143
MITSUBISHI 8DC90 ME062408 8 135 153
MITSUBISHI 8DC91 ME062336 8 135 153
MITSUBISHI 8DC91T ME090167 8 135 153
MITSUBISHI 8DC92 ME065579 8 135 153.1
MITSUBISHI 8DC92 ME091048 8 135 153.1
MITSUBISHI 8DC10-4MM ME091049 8 138 153.1
MITSUBISHI 8DC10-6MM ME090146 8 138 153.1
MITSUBISHI 8DC11(5) ME092922 8 142 153
MITSUBISHI 8DC11(4) ME091050 8 142 153
MITSUBISHI 6D20 ME052050 6 125 155.5
MITSUBISHI 8DC2W 31217-77101 8 130 145
MITSUBISHI 8DC2A 31217-50105 8 130 145.2
MITSUBISHI 8DC4 ME062273 8 130 145.2
MITSUBISHI S6K   6 102 97.7
MITSUBISHI 6D34 ME014160 6 104 112
MITSUBISHI 6D34T ME220454 6 104 112




PACKAGE AND SHIPPING:


1. Carton box


2. Neutral packing or our own packing


3. According to customer's requirement


4. Shipping: by sea or by ship (DHL, TNT, UPS, FEDEX, EMS)



OUR COMPANY:



Full Cylinder Liner Kit 4D56T Machine Parts Liner Repair Sets MD103308 MD050011 2





ADVANTAGE:



1. High quality and competitive price.



2. Long life span, good sales-after service.



3. 100% new, strict inspection & test.



4. Standard export packing.



5. One year quality warranty.



6. Have strong stock, small order is acceptable



7. Various kinds are selectable with different car models.



8. Improve power and increase torque



9. Improve fuel economy and reduce fuel consumption



10. Reduce waste emissions and reduce environmental pollution.



FAQ:



Full Cylinder Liner Kit 4D56T Machine Parts Liner Repair Sets MD103308 MD050011 3





1. Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.

2. Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.

3. How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.

4. Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.

5. How to buy with you?
You can use "Chat now!" or email to us.

6. What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.

7. If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.

8. What information should I let you know if I want to get a quotation?

To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.





LINER KIT PICTURE AS BELOW:



Full Cylinder Liner Kit 4D56T Machine Parts Liner Repair Sets MD103308 MD050011 4
