Piston Set 4D32 Engine Rebuild Cylinder Liner Kit ME012174 ME012900

6D31 Engine Cylinder Piston Liner Kit for Mitsubishi ME012858 ME012626 ME011604

SPECIFIION:

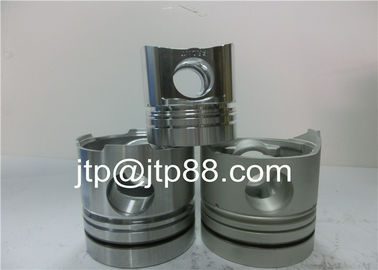

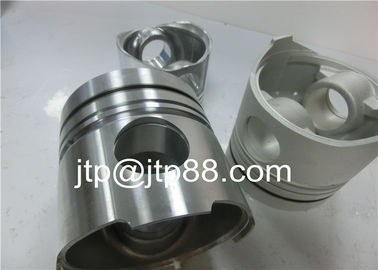

ABOUT THE PISTON:

We manufacture a wide range of qualitative pistons, piston rings, piston sets, piston pins and ringsets. These are rigid lubried sliding shaft, which fits tightly inside the opening of a cylinder. Some of the appliions of our products are:

1. To change the volume enclosed by the cylinder
2. To exert a force on a fluid inside the cylinder
3. To cover and uncover ports

Karan Exports custom pistons are manufactured from high quality aluminum alloy as per International Standards. Accuracy is maintained in all fronts:- Weight, dimensions, raw material to provide best working and reduced friction and non expansion of custom pistons.

Exports, custom pistons are manufactured from high quality aluminum alloy as per International Standards. Accuracy is maintained in all fronts:- Weight, dimensions, raw material to provide best working and reduced friction and non expansion of custom pistons.

Pistons are mostly made from Eutectic Aluminum Silicon alloy with excellent properties as low thermal expansion coefficient duty heat treated after casting for proper microstructure and hardness 70-80 hrb to achieve good mechanical properties to work in hot conditions. Pistons are machined with close tolerances as per requirements.

Our cylinder pistons are designed to carry tremendous power, can withstand high temperature and pressure and give stroke and thrust.

SURFACE TREATMENT:



CHROMED,PHOSPATED,POLISHED,ALUMINUM,INCLUSIVE



Principal Surface Treatment Processes
DCP	Phosphating and chromium plating on jacket only
DC	Water jacket only is chromium plated
DPF	Water jacket only is phosphated
BCP	Phosphating and inner diameter is chromium
FF	Inner diameter is Full-Finished for dry type liner
SF	Inner diameter is Semi-Finished for dry type liner
IN WHITE	Without any special surface treatment
DCU	Outer diameter is cooper plated for dry type liner
PF	Phosphated all over
	Air compression liner
	Chromed liner
	Liner



PRODUCT DETIALS:



Packaging Details	All the products adopt independent packaging cartons with detailed goods packing list on carton
Delivery Detail	3-5 days if in stock piston or 45 days for production
Shipping Detail	a.by express: Fedex, UPS, DHL,TNT b. By sea: LCL or FCL cooperating with your appointed shipping agent or our own ones





DESTRIPTION:



MITSUBISHI	6DS7	ME024402	6	98	105.3
MITSUBISHI	6D31	ME012858	6	100	110.7
MITSUBISHI	4D31T	ME012155	4	100	110.7
MITSUBISHI	6D14	ME032742	6	110	116.15
MITSUBISHI	6D14T	ME072047	6	110	116.15
MITSUBISHI	6DB1	30017-93101	6	110	152.5
MITSUBISHI	6DB1P	30017-70100	6	110	139.5
MITSUBISHI	6D15	ME032593	6	113	115.8
MITSUBISHI	6D15	ME032870	6	113	116.1
MITSUBISHI	6D15T	ME072055	6	113	116.1
MITSUBISHI	6D16	ME072064	6	118	116.1
MITSUBISHI	6D16T	ME072062	6	118	116
MITSUBISHI	6D16T	ME072065	6	118	116
MITSUBISHI	6D22	ME052809	6	130	158.2
MITSUBISHI	6D22T	ME052902	6	130	158.2
MITSUBISHI	6D22T	ME052664	6	130	158.2
MITSUBISHI	6D22T-4MM	ME052792	6	130	158.2
MITSUBISHI	8DC81	ME062422	8	135	143
MITSUBISHI	8DC90	ME062408	8	135	153
MITSUBISHI	8DC91	ME062336	8	135	153
MITSUBISHI	8DC91T	ME090167	8	135	153
MITSUBISHI	8DC92	ME065579	8	135	153.1
MITSUBISHI	8DC92	ME091048	8	135	153.1
MITSUBISHI	8DC10-4MM	ME091049	8	138	153.1
MITSUBISHI	8DC10-6MM	ME090146	8	138	153.1
MITSUBISHI	8DC11(5)	ME092922	8	142	153
MITSUBISHI	8DC11(4)	ME091050	8	142	153
MITSUBISHI	6D20	ME052050	6	125	155.5
MITSUBISHI	8DC2W	31217-77101	8	130	145
MITSUBISHI	8DC2A	31217-50105	8	130	145.2
MITSUBISHI	8DC4	ME062273	8	130	145.2
MITSUBISHI	S6K		6	102	97.7
MITSUBISHI	6D34	ME014160	6	104	112
MITSUBISHI	6D34T	ME220454	6	104	112







OUR COMPANY:



Guangzhou Teikuko Auto Parts Co., Ltd. was founded in 1997, specializes in producing cylinder liners, piston products, covering more than 30 brands, more than 300 kinds of engine type, widely used in various heavy diesel engine (such as Mitsubishi, Isuzu, Nissan, Hino, BMW, Mercedes, Cummins, etc.), Our company has an independent development department, quality control department and laboratory, has a number of highly qualified management personnel and research and development, innovation and strong, All of our products has passed ISO9001: 2000 quality system certifiion. We have now formed the production capacity of annual output value of 500 000 Cylinder / piston, more than 95 percent of products exported to Southeast Asia, Middle East, South America, Africa and other regions, is your reliable partner.





ADVANTAGE:



1. High quality and competitive price.



2. Long life span, good sales-after service.



3. 100% new, strict inspection & test.



4. Standard export packing.



5. One year quality warranty.



6. Have strong stock, small order is acceptable



7. Various kinds are selectable with different car models.



8. Improve power and increase torque



9. Improve fuel economy and reduce fuel consumption



10. Reduce waste emissions and reduce environmental pollution.





FAQ:



1. Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.

2. Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.

3. How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.

4. Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.

5. How to buy with you?
You can use "Chat now!" or email to us.

6. What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.

7. If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.

8. What information should I let you know if I want to get a quotation?

To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

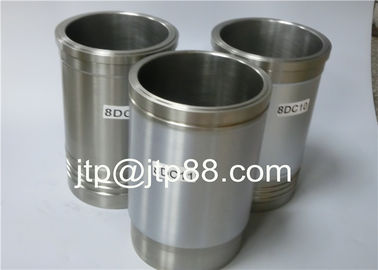

CYLINDER LINER PICTURE AS BELOW:
