Home ProductsDiesel Engine Bearings

Small And Big End Bearing 2KA1 2KB1 2KC1 Engine Parts Main Rod Bearing

Hi, Jessica, i received goods one week ago, it's all good packing without any broken. BTW, the samples also in good quality, will place order soon.

—— Zmerai - From Iran

Jessica, you can learn Russian language, i will engaged big business, and i want open a office in China and cooperate with you directly.

—— RUSTEN -- FROM RUSSIA

I am satisfied with the design of my packing, the PD6 new desigin piston with have good sales in my market, thank you and desire more cooperation.

—— Yard - FROM IRAQ

hi, jessica, i check your goods already, really very good quality, also JTP i am very very thank you for goods, thank you also for cooperate with me

—— S. STAR

Everytime we received goods with good packing, thank you, we will have long term business relations in future, and i am so glad to do business with you.

—— Row - From the Philippines

I'm Online Chat Now

Small And Big End Bearing 2KA1 2KB1 2KC1 Engine Parts Main Rod Bearing

Small And Big End Bearing 2KA1 2KB1 2KC1 Engine Parts Main Rod Bearing
Small And Big End Bearing 2KA1 2KB1 2KC1 Engine Parts Main Rod Bearing Small And Big End Bearing 2KA1 2KB1 2KC1 Engine Parts Main Rod Bearing Small And Big End Bearing 2KA1 2KB1 2KC1 Engine Parts Main Rod Bearing Small And Big End Bearing 2KA1 2KB1 2KC1 Engine Parts Main Rod Bearing

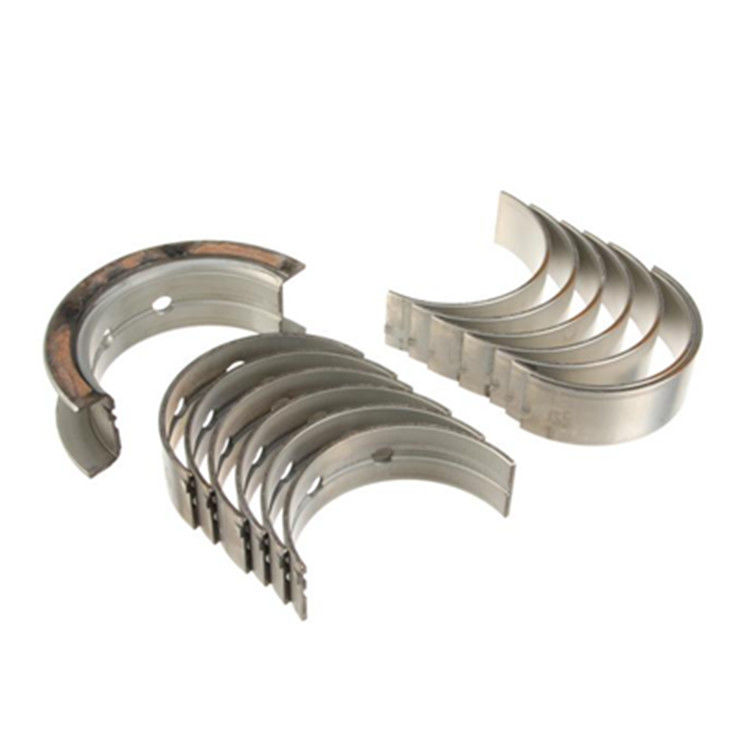

Large Image :  Small And Big End Bearing 2KA1 2KB1 2KC1 Engine Parts Main Rod Bearing

Product Details:
Place of Origin: China
Brand Name: YJL/JTP
Model Number: 2KA1 2KB1 2KC1
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Our brand packing or as customer requirement
Delivery Time: Usually within one week after receive payment
Payment Terms: T/T or western Union
Supply Ability: 5000pcs per month
Detailed Product Description
Main Diameter: 56.0mm Con Rod Diameter: 46.0mm
Size: STD/0.25/0.50/1.0 Material: Steel +Gu Alloy
PCS: 6/4 Condition: 100% New
Type: Engine Bearing Packing: Neutral Packing
Quality: High Performance OEM Number: M510A R510A
Appliion: ISUZU
High Light:

Engine Connecting Rod Bearing

,

Crankshaft Main Bearing

Small End Bearing & Big End bearing 2KA1 2KB1 2KC1 Engine Parts Main Rod Bearing






SPECIFIIONS:




Place of Origin CHINA
MOQ 1 SET

Means of Transport By sea, air cargo or DHL,FEDEX,EMS,UPS etc.

Packing Carton
Packing Size Export cargo standard
Delivery Time 1-3 workdays after received payment





CONNECRING ROD BEARING STRUCTURE:


There are oil holes drilled on the inner surface of the shaft sleeve, and some also open oil grooves to allow the lubriing oil to enter the lubriion. In order to prevent dry friction during the start of a diesel engine, an oil storage tank is also formed on the inner surface of some bearings. A small number of small high-speed diesel connecting rod small-end bearings use needle bearings. On the cross-head connecting rod, the small-end bearing is a split sliding bearing, which is often manufactured separately from the shaft. The wear-resistant alloy is directly cast on the inner surface of the bearing. For lubriion. Because small-end bearings work under high pressure and sway conditions, their lubriion is difficult. In order to improve the reliability of lubriion, some models use a dedied oil pump for each cylinder to enhance lubriion. In order to improve working reliability, self-adjusting or platform connecting rod small-end bearings are often used.




Small And Big End Bearing 2KA1 2KB1 2KC1 Engine Parts Main Rod Bearing 0





OUR CONCEPT IN PRODUTCTION PROCESS:





1. Stric control of the production process to ensure that all products qualified



2. Strengthening the field process management



3. Training high quality quality



4. Improve the quality of the concept



5. Strict process control



6. Control every procedure, make each product



Small And Big End Bearing 2KA1 2KB1 2KC1 Engine Parts Main Rod Bearing 1







ABOUT THE ENGINE BEARING:


The small bearing is the bearing with the diameter of the connecting rod. Because the connecting rod has a relatively small diameter, the bearing is also smaller. We call it small for short. In fact, the crankshaft of the engine uses a sliding friction structure, and the friction between the crankshaft and the bearing shell is directly sliding and rotating.

The key part of the large and small bearing is the contact surface. It is coated by a wear-resistant material. The coating on the large and small bearing is not a high hardness material but a material that is slightly scratched with a fingernail. The accuracy is almost 100% in contact with the crankshaft, and an engine remains so smooth and does not tremble without any trembling.





DESTRIPTION:



ISUZU
M153H1 C190 1951CC 1971- 86.000 M4532K 64 10
R160H C190 C240 C221 C223 R4536A 56 8
M160H2 C221 C240 M4525K 74 10
M167H2 E120 E120-T M4035K 106 14
R167H1 E120 E120-T 6QA1 85~ R4035K 94 12
R 6RB1 R4048K 96 12
M168H 4BA1 4BB1 4BC1 C330 M4634K 81.02 10
R168H1 4BA1 4BB1 4BC1 C330 R4634K 68.02 8
M169H 6BB1 M4036K 81.02 14
R169H1 6BB1 6BD1 6BF1 6BG1 R4036K 68.02 12
M171H G130 G150 G160 G161 G200Z M5014K 59 10
R171H G130 G150 G160 G161 G180 G161W G161Z G200Z R5013K 52 8
R G180 G200 R514K 52 8
M172A 4ZA1 4ZB1 4ZC1 4ZD1 M5022A 60 10
R172A1 4ZA1 4ZB1 4ZC1 4ZD1 4ZE1 R522A 52 8
M173H1 6BB1 6BD1 M4027K 85.02 14
M176A 4FA1 4FB1 4FC1 4FE1 4FD1 4FG1 M4521A 60 10
R176H 4FA1 4FB1 4FC1 4FD1 4FE1 4FG1 R4521A 52 8
M177H1 4BA1 4BB1 4BC1 4BC2 4BE1 4BE2 M4632K 81.02 10
M178H 4BD1 M4640K 85.02 10
MP179H1 8RA1 - 8PC1 10PA1 - 10PC1 MP4038K 103 2
RP179H1 8PA1 - 8PC1 10PA1 - 10PC1 RP4038K 84 4
R179H 8PA1 - 8PC1 10PA1 - 10PC1 12PA1 12PB1   84 8
M182H1 6BB1 6BD1 6BF1 6BG1 M4029K 85.02 14
M183H C190 C223 M536A 64 10
M184A 4JA1 4JC1 4JD1 M4650A 64 10
R184A 4JA1 4JB1 4JC1 4JD1 R4650A 56 8
M185A 4JB1 M4651A 74 10
M186H 6SA1 6SD1 M444K 96.02 14
R186H 6SA1 R444K 84 12
M187A 4BC1 4EC1-T M4540A 52 10
R187A 4BC1 4EC1-T NAVI 4EE1 R4540A 49 8
R189H 6SD1 R445K 85 12
M190H1 4BD1 4BD1-T 4BG1 M4641K 85.02 10
M194A 4EC1-T NAVI 4EE1 M4541A 56 10
M195H 6RA1 6RB1 M448K 106 14
MP198H 8PD1 10PD1 10PE1 12PD1 MP404K 110 2
RP198H     87 4
M801H 4HE1 4HF1 4HG1 4HK1 M4547K 87.02 10
R801H 4HF1 4HG1 R4547K 70 8
R808 4HE1-T   78 8
R 4HK1   78 8
M802H 6HE1 M4000K 87.02 14
R802H 6HE1 R4000K 70 12
M804A 4LE1   64 10
R804A     49 8
R809H 6HE1-T CB-1639GP R4005K 78 12
M810A 6VD1 M4660A 69 8
R810A   R4660A 56.85 12
M811H 6WA1 6WF1 6WG1   111 14
R811H     98 12





OUR PACKING :





Standard export hard cartons to assure the safety during the transformation.



Put foam bag inside to protect the products.



We can offer neutral clean box, original box or customer's special brand box.



Custom-made boxes are only avaliable for big order with large quantity.





OUR SHIPPING:



Ship by air or express for the products with small volumn or little amount. Ship by vessel for large volumn products.



Please inform your shipping methods when place an order, or we can choose the cheapest method for you from our own forwarders.



For our stock products, we can ship to you within 3 days, for the products out of stock, we will inform you advance.



Please note that the shipping charge for brand products would be much expensive than neutral products.



Small And Big End Bearing 2KA1 2KB1 2KC1 Engine Parts Main Rod Bearing 2







FAQ:



Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.


ENGINE BEARING PICTURE AS BELOW:



Small And Big End Bearing 2KA1 2KB1 2KC1 Engine Parts Main Rod Bearing 3Small And Big End Bearing 2KA1 2KB1 2KC1 Engine Parts Main Rod Bearing 4
