| Place of Origin: | China |
| Brand Name: | JTP |
| Model Number: | EF750 |
| Certifiion: | ISO9001:2008;ISO/TS16949:2009 |
| Minimum Order Quantity: | 6cps |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | 5~10days |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| Type: | Oil-control Ring | Appliion: | Turck, Ship, Generator, Industry |
|---|---|---|---|
| Material: | Ductile Iron, Steel, Alloy Casting Iron | Sample Order: | Acceptbale |
| Bore: | 137mm | Size: | Standard Or Customized |
| OEM: | 13011-1112 | ||
| High Light: | cast iron piston rings,piston rings set |
||
| Product name | Piston ring |
| Engine model | EF750 |
| OEM No. | 13011-1112 |
| Material | Steel,Ductile cast iron,Alloy cast iron,F14 high alloy iron etc. |
| Bore | 137mm |
| Ring groove | 3.306+3.5+3.5+6mm |
| Surface Treatment |
Chromium plated,Phosphated,Nitrided, Sprayed molybdenum,Sand basting, Tinning etc. |
| MOQ | 1 sets for stocks,100-300 sets for production line |
| Packing | As per your request |
| Payment terms | T/T,Western Union,Paypal etc. |
| Delivery time | with 7days for stocks,30-45 days for prodcution line |
| Brand | Dowill |
| Hot models for same car make |
F17E,F17C,F17D,EF750,EB300,EK100,EK200,K13C,EF550,EF500 M10U,EM100,J07C,J08C,H07D,H07E,H07CT,H07C,EH700,H06C |
| Product range |
Piston / Piston Pin /Clips or Locks Piston Ring / Piston Ring Set / Piston Ring Kit / Ring Piston Cylinder Liner / Cylinder Sleeves Main Bearing / Con rod Bearing / Engine Bearing Set Cylinder Gasket / Head Gasket / Overhaul gasket kit / Gasket kit Cam Bush / Con rod Bush / Pin Bush / Thrust washer Valve / Valve seat / Valve guide / Valve seal Nozzle / Injectors / Injection nozzles / Plungers Cylinder liner kit / Piston liner kit / Liner set Liner seal / Seal kits / O-rings |
| Engine Type |
NPR Number |
Position | Ring Diameter(mm) |
Ring Height(mm) |
Reference |
| EF750 | SDH20-025ZZ | 1 | 137 | 3.306 | 13011-1111 13011-1112 13011-1121 13011-1121B 13011-1122 13011-2170B 13011-2180 13019-1610A(CYL) |
| 2 | 137 | 3.5 | |||
| 3 | 137 | 3.5 | |||
| O | 137 | 6 | |||
| SDH20-025ZX | 1 | 137 | 3.306 | ||
| 2 | 137 | 3.5 | |||
| 3 | 137 | 3.5 | |||
| O | 137 | 6 |
| Yanmar: | 3TNE84, 3TNE88, 4TNE88, 4TNA94, 4TNA98, 4TNV98 |
| Kubota: | D1462-DI, F2302-DI, F2803-B, V3300-B, V3300-B. V3300-DIE, V3300-TIE |
| Shibaura: | N844, N844L, N844T |
| Isuzu: | 3AE1, 3KB1, 3KC1, 3KC2, 3KR1, 3KR2, 3/4LB1, 3/4LC1, 3LD1, 4FB1, 4FC1, 4FD1, 4FE1, 4FG1, 4FG1T, 4JB1, 4JG2, 4LE1, 4LE2, D201 |
| Komatsu: |
4D94, 4D94E, 4D95A, 4D95K, 4D95LE-3, 4D95LE, 4D95S, 4D95T, 4D98E, S4/6D95T, 4D105-3, 4D120, 4D130, 6D105-1, 6D105, 6D155, S6D95, S6D102, S6D105-3, S4/6D105-5, S6D108, S6D108, S6D110-2, S6D110-3, S6D110, S6D125, S6D140, S6D170, NH220, NH250 |
| Mazda: | WL B2500, S2 E2200, XA E2500, XB E2700, HA E3000, XA T2500, HA T3000, VS T3000, T3500, SL T3500, TF T4000, ZB T4100, TM T4500 |
| Mitsubishi: |
4DQ5, K3B, K3F, K3H, K3M, K4C, K4D, K4E, K4E-DI, K4F, K4H, K4M, K4N, K4Q, 4DQ7, L3C, S3E, S3L2, S4E, S4E2, S4F, S4L, S4L2, S4L2-T, S4Q2, S4Q2-1, S4S, S6E2, S6KT, S6SD |
| Nissan: | BD30, H20, K21, K25, SD22, SD23, SD25, TD23, TD25, TD25T, TD27, TD27T |
| Toyota: | 1DZ-2, 1DZ, 1Z, 2H, 2J, 2Z, 2Z-N, 12Z, 13Z, 14Z |
Package&Shipping
| Packaging Details | All the products adopt independent packaging cartons with detailed goods packing list on carton |
| Delivery Detail | 3-5 days if in stock piston or 45 days for production |
| Shipping Detail | a.by express: Fedex, UPS, DHL,TNT b. By sea: LCL or FCL cooperating with your appointed shipping agent or our own ones |

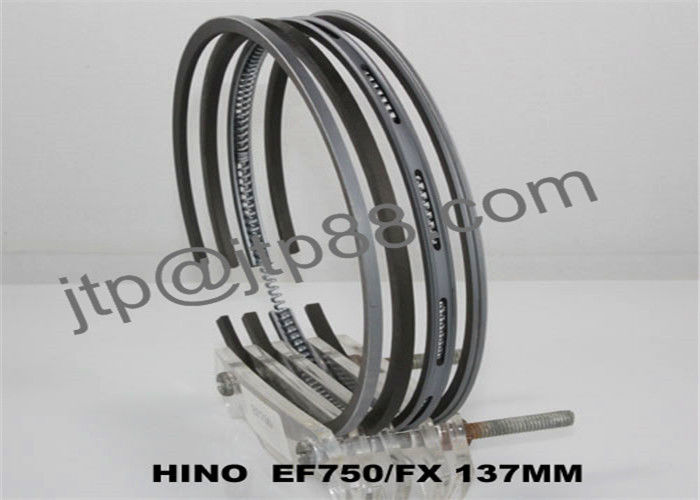

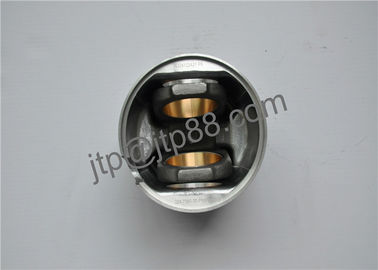

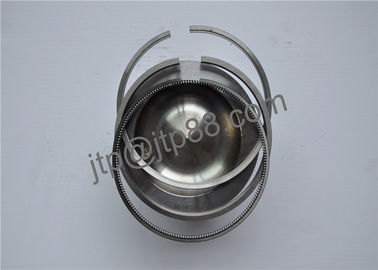

EF750 PISTON RING PICTURE AS BELOW:
