| Brand Name: | JTP |
| Model Number: | 4D65 4D65T |
| Certifiion: | ISO9001:2008;ISO/TS16949:2009 |
| Minimum Order Quantity: | 6cps |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | One month or one week if we have stock |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| Place Of Origin: | Guangzhou, China | OEM: | ME190317 ME202148 ME993211 ME993212 ME202940 |
|---|---|---|---|
| Material: | Steel/ Ductile Cast Iron/ Alloy Cast Iron | 1st Ring: | 2.0mm |
| 2nd Ring: | 2.0mm | 3rd Ring: | 4.0mm |
| Diameter: | 80.6mm | Cylinder Number: | 4 |
| RIK Set No.: | 20531 20245 21245 | Engine Type: | Diesel |
| Warranty: | 100,000KM | Quality: | 100% Professional Test |
| Car Make: | Mitsubishi | Type: | Piston Ring |
| High Light: | cast iron piston rings,piston rings set |
||
Engine oil ring /Piston ring 4D65 4D65T Genuine parts Piston ring ME190317 ME202148
SPECIFIIONS:
| Engine Type | CC |
Vehicle Model Chassis Type |
CYL.NO. | Piston Ring | RIK NO. | OE NO. | Warranty | Brand | |
| Position |
Size (mm) d1 X h1 X a1 |
||||||||
| 4D65,4D65T | 1795 | Mirage, Galant Colt C14A |
4 |
1 2 o |
80.6 × 2 × 3.1 80.6 × 2 × 3.6 80.6 × 4 × 2.4 |
20245 (21245) |
|
2 Years | RIK |
NOTE:
We are a wholesaler with our own factory.
We can produce any your design.
We have strict quality control system, good reputation in the market.
We have big discount fro forwarder (long-tern contract).
Perfessional work team and quick service.
PRODUCTION PROCESS:
The force acting on the piston ring is the gas pressure,the ring's own elastic force,the inertial force of the ring reciproing motion,the friction between the ring and the cylinder and the ring groove,as shown in the figure.Due to these forces,the ring will produce basic motions such as axial motion,radial motion,and rotary motion.In addition,due to its motion characteristics,the piston ring is accompanied by irregular movement,and inevitably,floating and axial vibrations caused by axial irregular motion,radial irregular motion and vibration,twisting motion,and the like are inevitable.These irregular movements often prevent the piston ring from functioning.When designing the piston ring, it is necessary to give full play to the favorable movement and control the unfavorable side.
THERMAL CONDUCTIVITY:
The high heat generated by the combustion is transmitted to the cylinder wall through the piston ring,so that it can function as a cooling piston.The heat radiated from the piston ring to the cylinder wall can generally reach 30-40% of the heat on the top of the piston.
AIR TIGHTNESS:
The first function of the piston ring is to maintain a seal between the piston and the cylinder wall to control leakage to a minimum.This effect is mainly borne by the gas ring,that is,the engine is controlled to minimize the leakage of compressed air and gas under any operating conditions to improve the thermal efficiency:to prevent the cylinder and the piston or the cylinder and the ring from being caused by the air leakage.Killing:preventing malfunction caused by deterioration of lubriing oil,and the like.
OIL CONTROL:
The second function of the piston ring is to properly scrape off the oil adhering to the cylinder wall and maintain normal fuel consumption.When the supplied lubriing oil is excessive,it will be sucked into the combustion chamber to increase the fuel consumption,and the carbon deposit generated by the combustion has a very bad influence on the engine performance.
OUR FACTORY:
Guangzhou Teikuko Auto Parts Co., Ltd. was founded in 1997, specializes in producing cylinder liners, piston products, covering more than 30 brands, more than 300 kinds of engine type, widely used in various heavy diesel engine (such as Mitsubishi, Isuzu, Nissan, Hino, BMW, Mercedes, Cummins, etc.), Our company has an independent development department, quality control department and laboratory, has a number of highly qualified management personnel and research and development, innovation and strong, All of our products has passed ISO9001: 2000 quality system certifiion. We have now formed the production capacity of annual output value of 500 000 Cylinder / piston, more than 95 percent of products exported to Southeast Asia, Middle East, South America, Africa and other regions, is your reliable partner.
TYPES OF PISTON RING:
Cast Iron Rings : These rings are made from graded Prelatic Cast Iron alloy. Machined to close tolerances as recommended by O.E. (Original Equipment)
Steel Ring Chrome Plated : These rings are made of high Tensile special steel machined to proper sizes with Chrome plating from 100 to 200 microns as required by the buyers. This is used in Heavy Duty Diesel Engines.
SG Iron Casted Rings : These rings are made of SG Iron castings and recommended for Heavy Duty Diesel Engines, specially 3 ring design Piston.
PAYMENT ATTENTION PLEASE:
One set for one engine repairing .
Your goods will be sent out in 1- 3 days after we received your payment ,
Your goods will be packed into the neutral paper carton , any requirement on packing ,please leave us message
Please fill in your detailed address and phone number for international express when you placing the order
More photos and detals , welcome to chat with us online
DESTRIPTION:
| Engine Type | Cyl | Dia(mm) | Position | Ring width (mm) | Padial Thickness | Part No |
| 4G32 | 4 | 76.90 | 1st | 2.000 | 3.50 | MD000725 |
| 2nd | 2.000 | 3.50 | FM11199 | |||
| Oil Ring | 4.000 | 3.10 | FV | |||
| 4G63 | 4 | 85.00 | 1st | 2.000 | 3.60 | MD040640 |
| 2nd | 2.000 | 3.70 | MD041580 | |||
| Oil Ring | 4.000 | 3.10 | MD108068 | |||
| 4G64 4G64-S4 | 4 | 86.50 | 1st | 1.200 | 3.10 | MD192815 |
| MD194597 | ||||||
| 2nd | 1.500 | 3.80 | MD195828 | |||
| Oil Ring | 2.800 | 2.50 | ||||
| 4D55 | 4 | 91.10 | 1st | 2.500 | 3.70 | MD050395 |
| 2nd | 2.000 | 3.80 | 20211 | |||
| Oil Ring | 4.000 | 2.70 | FX | |||
| 4D55T 4D56 | 4 | 91.10 | 1st | 2.500 | 3.70 | MD050390,MD103391 |
| 2nd | 2.000 | 3.80 | FX | |||
| Oil Ring | 4.000 | 2.70 | 20503 | |||
| 4DR5 6DR5 | 4/6 | 92.00 | 1st | 2.500 | 3.70 | 31717-12012 |
| 2nd | 2.000 | 3.90 | 31617-02012 | |||
| 3rd | 2.000 | 3.90 | FX | |||
| Oil Ring | 4.500 | 3.20 | ||||
| S4E S4S | 4 | 94.00 | 1st | 2.500 | 3.90 | FX |
| 2nd | 2.000 | 3.90 | 34417-11011 | |||
| Oil Ring | 4.500 | 3.20 | 20014 | |||
| 4M40 | 4 | 95.00 | 1st | 2.300 | 3.35 | SM |
| 2nd | 2.000 | 4.00 | MD997894 | |||
| Oil Ring | 4.000 | 2.50 | ME202380 | |||
| 4D30 | 4 | 100.00 | 1st | 3.000 | 4.00 | ME012070 |
| 2nd | 2.000 | 4.20 | ME012010 | |||
| Oil Ring | 5.000 | 3.50 | ||||
| 6D31T | 6 | 100.00 | 1st | 3.000 | 4.00 | ME997458 |
| 2nd | 2.000 | 4.00 | ||||
| Oil Ring | 4.000 | 2.50 |
FAQ:
1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.
2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.
3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.
4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.
5.How to buy with you?
You can use "Chat now!" or email to us.
6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.
7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.
8.What information should I let you know if I want to get a quotation?
To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

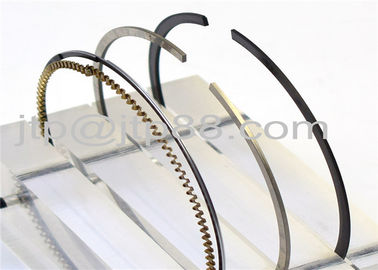

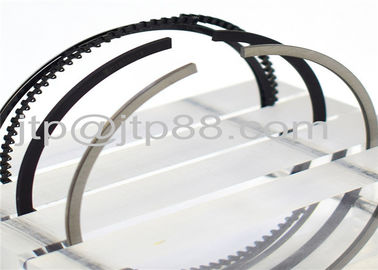

PISTON RING PICTURE AS BELOW:
