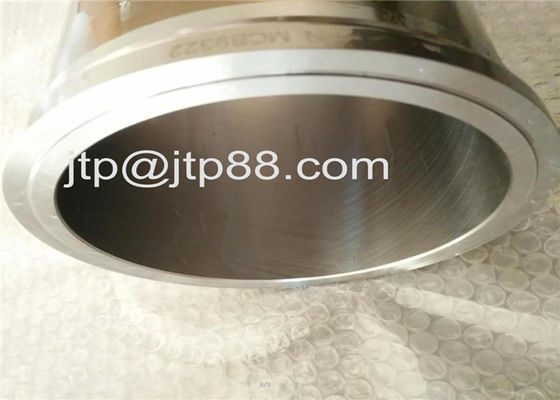

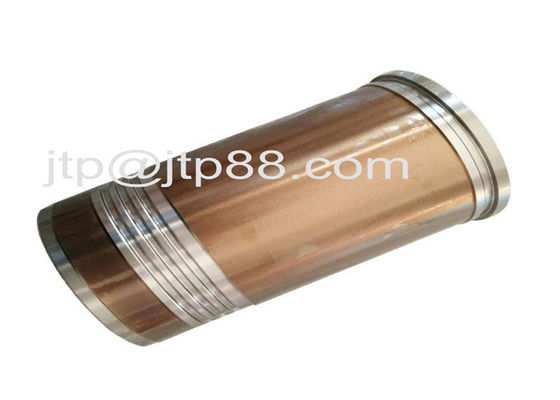

114.0mm Diameter Engine Cylinder Liner Kit 6CT Truck Auto Parts 3919937 38024030

114.0mm Diameter Engine Cylinder Liner Kit 6CT Truck Auto Parts 3919937 38024030

    • 114.0mm Diameter Engine Cylinder Liner Kit  6CT Truck Auto Parts  3919937 38024030
    • 114.0mm Diameter Engine Cylinder Liner Kit  6CT Truck Auto Parts  3919937 38024030
    • 114.0mm Diameter Engine Cylinder Liner Kit  6CT Truck Auto Parts  3919937 38024030
    • 114.0mm Diameter Engine Cylinder Liner Kit  6CT Truck Auto Parts  3919937 38024030
  • 114.0mm Diameter Engine Cylinder Liner Kit  6CT Truck Auto Parts  3919937 38024030

    Product Details:

    Place of Origin: China
    Brand Name: JTP
    Certification: ISO9001:2008;ISO/TS16949:2009
    Model Number: 6CT

    Payment & Shipping Terms:

    Minimum Order Quantity: 1SET
    Price: negotiation
    Packaging Details: Packed in carton firstly,and then reinforced with green sack for outer packing
    Delivery Time: Usually within one week after receive payment
    Payment Terms: T/T or western Union
    Supply Ability: 5000pcs per month
    Contact Now
    Detailed Product Description
    Type: Wet Cylinder Liner Color: White/ Black
    Diameter: 114.0mm Total Length: 303.5mm
    Number Of Cylinder: 6 OEM: 3919937 38024030
    Warranty: 100000 Miles Size: STD
    Car Make: Fit For Cummins Quality: High Quality
    Material: Aluminum Steel Cylinder Feature: Shiny,Phosophate,Chrome
    Cylinder Liner Size: 95X140mm Piston Ring Size: 2.0+2.0+4.0mm
    High Light:

    cylinder liner sleeve

    ,

    diesel engine cylinder liner

    Cylinder liner engine Liner kit 6CT Truck Auto Parts Cylinder liner 3919937 38024030







    SPECIFICATION:





    Part Number: 3904166

    Part Name: Cylinder liner
    Engine Type: 6B Diesel Engine
    Warranty: 6 Months
    Packing: Original/ Neutral/Customized
    MOQ: 1Piece
    Delivery way: DHL/FEDEX/UPS/TNT,By Air, By Sea





    SURFACE TREATMENT:





    Principal Surface Treatment Processes
    DCP Phosphating and chromium plating on jacket only
    DC Water jacket only is chromium plated
    DPF Water jacket only is phosphated
    BCP Phosphating and inner diameter is chromium
    FF Inner diameter is Full-Finished for dry type liner
    SF Inner diameter is Semi-Finished for dry type liner
    IN WHITE Without any special surface treatment
    DCU Outer diameter is cooper plated for dry type liner
    PF Phosphated all over
      Air compression liner
      Chromed liner
      Liner






    WET CYLINDER LINER:



    The location bores and particularly the running surfaces in the cylinder block must be cleaned carefully and they must



    be undamaged. Corroded surfaces must be reworked (used flange liners and outer diameter oversize liners). As this is



    done, make sure that the liners moves in easily and that they take up the correct position (the projecting length of the



    liner must be in accordance with the regulations of the engine manufacture). After the liner has been installed with the



    seat rings that belong to it.



    (use slip agent), the cylinder diameter is to be checked particularly in the region of seal rings so as to determine whether



    any deformation has been caused by pinched sealing rings. Using the wrong sealing rings (wrong diameter/ wrong



    materials) can a narrowing of the cylinder which can lead to engine damage.The cooling system should be pressure



    tested after the liners have been installed so as to determine whether there is any leakage before the engine is started.



    SEMI-FINISH CYLINDER LINER:



    The surface which supports the flange must be vertical to the location bore and it must be sufficiently and evenly beveled. If the



    liner flange is unevenly supported it can tear off. After the installation of the liner, which is only semi-finished in its inside



    diameter, this cylinder boring is finely bored and then finished by honing until it has the specified dimensions or, in the case of

    finely bored liner.It is only finished by honing (tolerance accordingly to DIN ISO H5). The surface of the liner must be flush to the



    sealing surface of the cylinder block, if necessary,the block surface and the liner must be finished by surface grinding.



    FINISH CYLINDER LINER:



    Before the liner is installed, the location bore in the cylinder block must be cleaned carefully and must be checked to



    ensure the accuracy of the dimensions and to determine whether any distortion has occurred. Out of center or damaged



    bores can be reworked for the installation of oversize liners. It is important for this that the locating bore is cylindrical, as



    this is what determines the geometrical shape of the inside of the pressed in, thin walled liner.





    AIR COOLING CYLINDER LINER:



    5)In accordance with the instructions from the engine manufacture, cast iron cylinders or light alloy cylinders are used.



    Light alloy cylinders are separated into several groups due to the small installation clearance in the standard cylinder dimensions.









    114.0mm Diameter Engine Cylinder Liner Kit  6CT Truck Auto Parts  3919937 38024030





    OUR EXHIBITION:



    114.0mm Diameter Engine Cylinder Liner Kit  6CT Truck Auto Parts  3919937 38024030





    DESTRIPTION:



    CUMMINS 6CT 3919937 38024030 6 114 9.382''
    CUMMINS 6CT 3907792 6 114 9.382''
    CUMMINS V6-155 V8-210 3022530 6/8 4.625'' 6.522''
    CUMMINS KS909   6 125 241
    CUMMINS NT855series VT,VTA VTR1710 3055099 6/12 139.7 288
    CUMMINS HN Series 184400 6   303.5
    CUMMINS K Series   6   12.07''







    CYLINDER LINER PACKING:



    1. Neutral packing


    2. JTP packing


    3. YJL packing



    4.Customized packing



    5. Your brand packing



    114.0mm Diameter Engine Cylinder Liner Kit  6CT Truck Auto Parts  3919937 38024030





    OUR CYLINDER LINER FACTORY:





    We are a professional R&D and production manufacturer in marine engine parts, manifold, piston and cylinder liners. Our products have various industrial applications in marine engine, automotive, engineering vehicle, agricultural vehicle and locomotive. We can make most cylinder kits according to customers’ special need.


    We have been certified to ISO9001:2008;ISO/TS16949:2009, continuously invests in process and quality improvement. We are always committed to improve all aspects of our business, from people, equipment to the entire production programs. Our willing is to always provide the best quality piston and cylinder liner for your high-performance engines.



    114.0mm Diameter Engine Cylinder Liner Kit  6CT Truck Auto Parts  3919937 38024030



    FAQ:





    1.Do you have other engine model?
    Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.

    2.Are you trading company or manufacturer?
    We are an engine parts trading company, a distributor of some manufacturers.

    3.How long is your delivery time?
    About 120 days. By DHL or TNT about 14 days after payment.

    4.Do you provide samples? Is it free or extra?
    Sorry we don't provide samples. Our minimum amount is ONE piece.

    5.How to buy with you?
    You can use "Chat now!" or email to us.

    6.What kind of parts you supply?
    We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.

    7.If out of stock, how much time do you need to transfer from factory?
    Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.

    8.What information should I let you know if I want to get a quotation?

    To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.




    CYLINDER LINER PICTURE AS BELOW:


    114.0mm Diameter Engine Cylinder Liner Kit  6CT Truck Auto Parts  3919937 38024030
