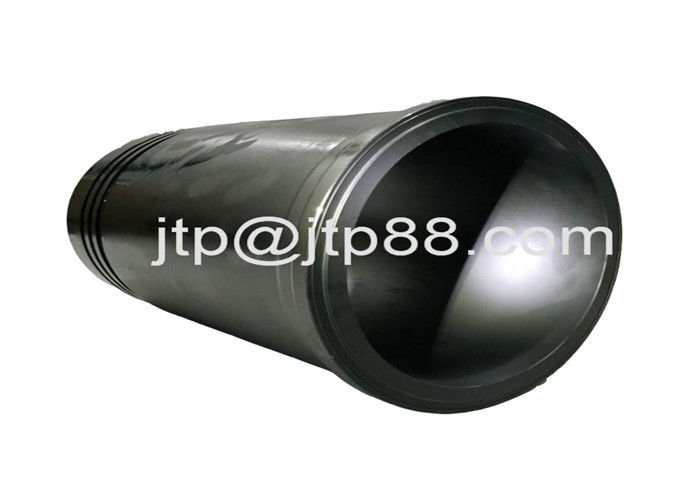

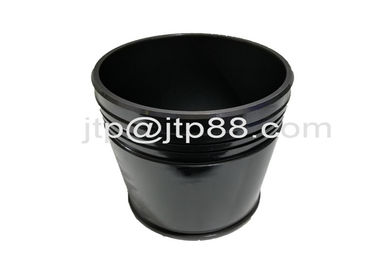

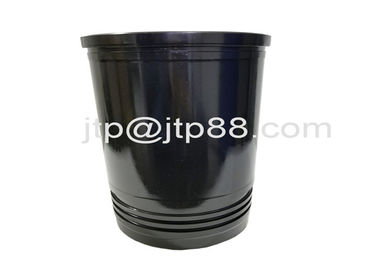

Tinned Alfin Cylinder Liner FE6 ED6 For Niisan 11012-Z5001 11012-Z5573

Tinned Alfin Cylinder Liner FE6 ED6 For Niisan 11012-Z5001 11012-Z5573

    • Tinned Alfin Cylinder Liner FE6 ED6 For Niisan 11012-Z5001 11012-Z5573
    • Tinned Alfin Cylinder Liner FE6 ED6 For Niisan 11012-Z5001 11012-Z5573
    • Tinned Alfin Cylinder Liner FE6 ED6 For Niisan 11012-Z5001 11012-Z5573
  • Tinned Alfin Cylinder Liner FE6 ED6 For Niisan 11012-Z5001 11012-Z5573

    Product Details:

    Place of Origin: China
    Brand Name: JTP
    Certification: ISO9001:2008;ISO/TS16949:2009
    Model Number: FE6 ED6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1SET
    Price: negotiation
    Packaging Details: Packed in carton firstly,and then reinforced with green sack for outer packing
    Delivery Time: Usually within one week after receive payment
    Payment Terms: T/T or western Union
    Supply Ability: 5000pcs per month
    Contact Now
    Detailed Product Description
    Type: Wet Cylinder Liner Color: White/ Black
    Diameter: 100.0mm Total Length: 212.0mm
    Number Of Cylinder: 6 OEM: 11012-Z5001 11012-Z5573
    Warranty: 100000 Miles Size: STD
    Car Make: Fit For Nissan Quality: High Quality
    Material: Boron-copper Chrome Cast Iron Alloy
    High Light:

    cylinder liner sleeve

    ,

    diesel engine cylinder liner

    Tinned alfin Cylinder liner FE6 ED6 For Niisan Cylinder liner 11012-Z5001 11012-Z5573







    SPECIFICATION:






    FE6
    Application: TRUCK
    No. CyI: 6
    Diameter: 108.0 MM
    Piston OEM No. Compress Height Total Length Pin Size Feature
    12011-Z5615 65.5 103.4 36x92 w/al-fin
    Piston Ring OEM No. Size1 Size2
    12040-Z5504 3.0+2.0+4.0
    Cylinder Liner OEM No. Size Flange
    11012-Z5518 108.0x111.0x220.0 116.0x8.0+1.0
    Engine Bearing OEM No. Main Bearing Con Rod Bearing Bush
      12213-Z5500 12117-Z5560 12030-95000
    Engine Valve (IN) OEM No. Head Diameter Stem Diameter Total Length
    13201-Z5501 48.5 9.0 129.5
    Engine Valve (EX) OEM No. Head Diameter Stem Diameter Total Length
    13202-Z5502 39.8 9.0 130.0
    Valve Seat OEM No.

    Valve Guide/Sub Parts OEM No.






    ABOUT THE CYLINDER LINER:






    Name of Material
    C S Si P Mn Cr B Cu Ni V+Ti Mo Mechanical Properties
    Boron Cast Iron 2.8~3.6 <=0.12 2.0~2.7 <=0.5 0.7~1.2 0.3~0.5 0.04~0.08         Brinell Hardness>210HB,
    σb>=200Mpa
    Boron Copper Gray Cast Iron 2.8~3.6 <0.2 2.0~2.7 <=0.5 0.7~1.2 0.2~0.5 0.04~0.08 Right amount       Brinell Hardness>210HB,
    σb>=240Mpa
    Vanadium, Titanium Gray Cast Iron 3.0~3.6 <0.2 2.0~2.7 <=0.5 0.6~1.2 0.2~0.5       >=0.3   Brinell Hardness>210HB,
    σb>200Mpa
    Molybdenum Nickel Copper Gray Cast Iron 2.8~3.6 <0.2 1.8~2.4 <=0.3 0.5~1.0 0.2~0.5   0.3~0.6 Right amount   Right amount Brinell Hardness>210HB,
    σb>235Mpa
    Bainite Gray Cast Iron 2.7~3.3 <0.10 1.7~2.5 <=0.3 0.3~0.7 0.~0.5   Right amount Right amount   Right amount Brinell Hardness270~330HB,
    σb>350Mpa
    Nickel Copper Gray Cast Iron 2.8~3.7 <0.12 1.8~2.7 <=0.3 0.5~1.2 0.15~0.5   Right amount Right amount     Brinell Hardness>200HB,
    σb>196Mpa





    WET CYLINDER LINER:



    The location bores and particularly the running surfaces in the cylinder block must be cleaned carefully and they must



    be undamaged. Corroded surfaces must be reworked (used flange liners and outer diameter oversize liners). As this is



    done, make sure that the liners moves in easily and that they take up the correct position (the projecting length of the



    liner must be in accordance with the regulations of the engine manufacture). After the liner has been installed with the



    seat rings that belong to it.



    (use slip agent), the cylinder diameter is to be checked particularly in the region of seal rings so as to determine whether



    any deformation has been caused by pinched sealing rings. Using the wrong sealing rings (wrong diameter/ wrong



    materials) can a narrowing of the cylinder which can lead to engine damage.The cooling system should be pressure



    tested after the liners have been installed so as to determine whether there is any leakage before the engine is started.



    SEMI-FINISH CYLINDER LINER:



    The surface which supports the flange must be vertical to the location bore and it must be sufficiently and evenly beveled. If the



    liner flange is unevenly supported it can tear off. After the installation of the liner, which is only semi-finished in its inside



    diameter, this cylinder boring is finely bored and then finished by honing until it has the specified dimensions or, in the case of

    finely bored liner.It is only finished by honing (tolerance accordingly to DIN ISO H5). The surface of the liner must be flush to the



    sealing surface of the cylinder block, if necessary,the block surface and the liner must be finished by surface grinding.



    FINISH CYLINDER LINER:



    Before the liner is installed, the location bore in the cylinder block must be cleaned carefully and must be checked to



    ensure the accuracy of the dimensions and to determine whether any distortion has occurred. Out of center or damaged



    bores can be reworked for the installation of oversize liners. It is important for this that the locating bore is cylindrical, as



    this is what determines the geometrical shape of the inside of the pressed in, thin walled liner.





    AIR COOLING CYLINDER LINER:



    5)In accordance with the instructions from the engine manufacture, cast iron cylinders or light alloy cylinders are used.



    Light alloy cylinders are separated into several groups due to the small installation clearance in the standard cylinder dimensions.









    Tinned Alfin Cylinder Liner FE6 ED6 For Niisan 11012-Z5001 11012-Z5573







    DESTRIPTION:



    NISSAN ED33 11012-T9000 4 100 191
    NISSAN FD6/ED6 11012-Z5001 11012-Z5573 6 100 212
    NISSAN FD46 11012-03T001 4 108 212
    NISSAN UD3/UD4 UD5/UD6 11012-90006 3/4/5/6 110 281.5
    NISSAN RD8/RD10 11012-97025 11012-97063 8/10 135 243
    NISSAN RE8/RE10 11012-97118 11012-97161 8/10 135 238
    NISSAN RF8 11012-97164 11012-97171 8 138 238.3
    NISSAN RG8   8 142 236







    CYLINDER LINER PACKING:



    1. Neutral packing


    2. JTP packing


    3. YJL packing



    4.Customized packing



    5. Your brand packing



    Tinned Alfin Cylinder Liner FE6 ED6 For Niisan 11012-Z5001 11012-Z5573





    OUR CYLINDER LINER FACTORY:





    We are a professional R&D and production manufacturer in marine engine parts, manifold, piston and cylinder liners. Our products have various industrial applications in marine engine, automotive, engineering vehicle, agricultural vehicle and locomotive. We can make most cylinder kits according to customers’ special need.


    We have been certified to ISO9001:2008;ISO/TS16949:2009, continuously invests in process and quality improvement. We are always committed to improve all aspects of our business, from people, equipment to the entire production programs. Our willing is to always provide the best quality piston and cylinder liner for your high-performance engines.



    Tinned Alfin Cylinder Liner FE6 ED6 For Niisan 11012-Z5001 11012-Z5573



    OUR ADVANTAGE:





    1. High quality and competitive price.



    2. Long life span, good sales-after service.



    3. 100% new, strict inspection & test.



    4. Standard export packing.



    5. One year quality warranty.



    6. Have strong stock, small order is acceptable



    7. Various kinds are selectable with different car models.



    8. Improve power and increase torque



    9. Improve fuel economy and reduce fuel consumption



    10. Reduce waste emissions and reduce environmental pollution



    FAQ:



    Tinned Alfin Cylinder Liner FE6 ED6 For Niisan 11012-Z5001 11012-Z5573



    1.Do you have other engine model?
    Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.

    2.Are you trading company or manufacturer?
    We are an engine parts trading company, a distributor of some manufacturers.

    3.How long is your delivery time?
    About 120 days. By DHL or TNT about 14 days after payment.

    4.Do you provide samples? Is it free or extra?
    Sorry we don't provide samples. Our minimum amount is ONE piece.

    5.How to buy with you?
    You can use "Chat now!" or email to us.

    6.What kind of parts you supply?
    We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.

    7.If out of stock, how much time do you need to transfer from factory?
    Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.

    8.What information should I let you know if I want to get a quotation?

    To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.




    CYLINDER LINER PICTURE AS BELOW:




    Tinned Alfin Cylinder Liner FE6 ED6 For Niisan 11012-Z5001 11012-Z5573
