Guangzhou Teikuko Auto Parts Co.,ltd
Cellphone(whatsApp): +86 13668943876
|Place of Origin:||China|
|Minimum Order Quantity:||1SET|
|Packaging Details:||Packed in carton firstly,and then reinforced with green sack for outer packing|
|Delivery Time:||Usually within one week after receive payment|
|Payment Terms:||T/T or western Union|
|Supply Ability:||5000pcs per month|
|Type:||Wet Cylinder Liner||Color:||White/ Black|
|Number Of Cylinder:||4||OEM:||11012-T9000|
|Car Make:||Fit For Nissan||Quality:||High Quality|
|Material:||Boron-copper Chrome Cast Iron Alloy|
cylinder liner sleeve,
diesel engine cylinder liner
Cylinder liner for Nissan ED33 Heavy Truck Diesel Engine Spare Parts 11012-T9000
|Engine||Parts Name||cylinder liner|
Main performance parameters
|size||OEM Standard Size|
|Packing||Neutral ,genuine ,customized packing
paper package,wodden packing
|shipping||DHL/FEDEX/UPS/TNT/ARAMEX, AIR & SEA|
|Delivery Time||Within 15 workdays according to your order.|
|T/T, Western Union|
ABOUT THE CYLINDER LINER:
Name of Material
|Boron Cast Iron||2.8~3.6||<=0.12||2.0~2.7||<=0.5||0.7~1.2||0.3~0.5||0.04~0.08||Brinell Hardness>210HB,
|Boron Copper Gray Cast Iron||2.8~3.6||<0.2||2.0~2.7||<=0.5||0.7~1.2||0.2~0.5||0.04~0.08||Right amount||Brinell Hardness>210HB,
|Vanadium, Titanium Gray Cast Iron||3.0~3.6||<0.2||2.0~2.7||<=0.5||0.6~1.2||0.2~0.5||>=0.3||Brinell Hardness>210HB,
|Molybdenum Nickel Copper Gray Cast Iron||2.8~3.6||<0.2||1.8~2.4||<=0.3||0.5~1.0||0.2~0.5||0.3~0.6||Right amount||Right amount||Brinell Hardness>210HB,
|Bainite Gray Cast Iron||2.7~3.3||<0.10||1.7~2.5||<=0.3||0.3~0.7||0.~0.5||Right amount||Right amount||Right amount||Brinell Hardness270~330HB,
|Nickel Copper Gray Cast Iron||2.8~3.7||<0.12||1.8~2.7||<=0.3||0.5~1.2||0.15~0.5||Right amount||Right amount||Brinell Hardness>200HB,
WET CYLINDER LINER:
The location bores and particularly the running surfaces in the cylinder block must be cleaned carefully and they must
be undamaged. Corroded surfaces must be reworked (used flange liners and outer diameter oversize liners). As this is
done, make sure that the liners moves in easily and that they take up the correct position (the projecting length of the
liner must be in accordance with the regulations of the engine manufacture). After the liner has been installed with the
seat rings that belong to it.
(use slip agent), the cylinder diameter is to be checked particularly in the region of seal rings so as to determine whether
any deformation has been caused by pinched sealing rings. Using the wrong sealing rings (wrong diameter/ wrong
materials) can a narrowing of the cylinder which can lead to engine damage.The cooling system should be pressure
tested after the liners have been installed so as to determine whether there is any leakage before the engine is started.
SEMI-FINISH CYLINDER LINER:
The surface which supports the flange must be vertical to the location bore and it must be sufficiently and evenly beveled. If the
liner flange is unevenly supported it can tear off. After the installation of the liner, which is only semi-finished in its inside
diameter, this cylinder boring is finely bored and then finished by honing until it has the specified dimensions or, in the case of
finely bored liner.It is only finished by honing (tolerance accordingly to DIN ISO H5). The surface of the liner must be flush to the
sealing surface of the cylinder block, if necessary,the block surface and the liner must be finished by surface grinding.
FINISH CYLINDER LINER:
Before the liner is installed, the location bore in the cylinder block must be cleaned carefully and must be checked to
ensure the accuracy of the dimensions and to determine whether any distortion has occurred. Out of center or damaged
bores can be reworked for the installation of oversize liners. It is important for this that the locating bore is cylindrical, as
this is what determines the geometrical shape of the inside of the pressed in, thin walled liner.
AIR COOLING CYLINDER LINER:
5)In accordance with the instructions from the engine manufacture, cast iron cylinders or light alloy cylinders are used.
Light alloy cylinders are separated into several groups due to the small installation clearance in the standard cylinder dimensions.
CYLINDER LINER PACKING:
1. Neutral packing
2. JTP packing
3. YJL packing
5. Your brand packing
OUR CYLINDER LINER FACTORY:
We are a professional R&D and production manufacturer in marine engine parts, manifold, piston and cylinder liners. Our products have various industrial applications in marine engine, automotive, engineering vehicle, agricultural vehicle and locomotive. We can make most cylinder kits according to customers’ special need.
We have been certified to ISO9001:2008;ISO/TS16949:2009, continuously invests in process and quality improvement. We are always committed to improve all aspects of our business, from people, equipment to the entire production programs. Our willing is to always provide the best quality piston and cylinder liner for your high-performance engines.
1. High quality and competitive price.
2. Long life span, good sales-after service.
3. 100% new, strict inspection & test.
4. Standard export packing.
5. One year quality warranty.
6. Have strong stock, small order is acceptable
7. Various kinds are selectable with different car models.
8. Improve power and increase torque
9. Improve fuel economy and reduce fuel consumption
10. Reduce waste emissions and reduce environmental pollution
1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.
2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.
3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.
4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.
5.How to buy with you?
You can use "Chat now!" or email to us.
6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.
7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.
8.What information should I let you know if I want to get a quotation?
To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

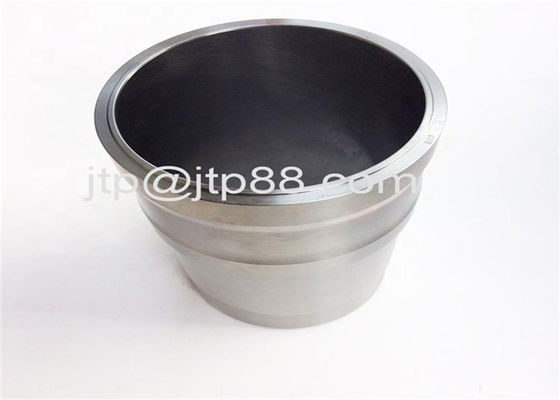

CYLINDER LINER PICTURE AS BELOW:
