Diesel Engine Cylinder Liner For HINO V26C Cylinder Liners And Sleeves 11467-3030

Diesel Engine Cylinder Liner For HINO V26C Cylinder Liners And Sleeves 11467-3030

  • Diesel Engine Cylinder Liner For HINO V26C Cylinder Liners And Sleeves 11467-3030
  • Diesel Engine Cylinder Liner For HINO V26C Cylinder Liners And Sleeves 11467-3030
  • Diesel Engine Cylinder Liner For HINO V26C Cylinder Liners And Sleeves 11467-3030
  • Diesel Engine Cylinder Liner For HINO V26C Cylinder Liners And Sleeves 11467-3030
Diesel Engine Cylinder Liner For HINO V26C Cylinder Liners And Sleeves 11467-3030
Product Details:
Place of Origin: China
Brand Name: JTP
Model Number: V26C
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with green sack for outer packing
Delivery Time: Usually within one week after receive payment
Payment Terms: T/T or western Union
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Type: Dry Cylinder Liner Color: White/ Black
Diameter: 150.0mm (FF) Total Length: 244.5mm
Number Of Cylinder: 10 OEM: 11467-3030
Warranty: 100000 Miles Size: STD
Car Make: Fit For HINO Quality: High Quality
Material: Aluminum Steel Shipping: By Sea, By Air, By Express
High Light:

cylinder liner sleeve

,

diesel engine cylinder liner

Fit the Diesel engine cylinder liner for HINO V26C Cylinder liners and Sleeves 11467-3030







SPECIFIION:



Engine Code Bore Size(m/ No of Cyl. Liner Kit Liner Piston Ring

V25C 146.0 10

04013-1301

11467-2290 13216-2671 L 13011-2792A
04013-1298 11467-2690 13226-1321 R R15336
V26C 150.0 10 04013-1365 11467-3040 13216-2661 L 13011-3450A
04013-1362 13226-1311 R SJH20-080ZZ





ABOUT THE CYLINDER LINER:





Chemical Ingredients Of Cylinder Liner(%)
No. Name of Material C S Si P Mn Cr B Cu Ni V+Ti Mo Mechanical Properties
1 Boron Cast Iron 2.8~3.6 <=0.12 2.0~2.7 <=0.5 0.7~1.2 0.3~0.5 0.04~0.08         Brinell Hardness>210HB,
σb>=200Mpa
2 Boron Copper Gray Cast Iron 2.8~3.6 <0.2 2.0~2.7 <=0.5 0.7~1.2 0.2~0.5 0.04~0.08 Right amount       Brinell Hardness>210HB,
σb>=240Mpa
3 Vanadium, Titanium Gray Cast Iron 3.0~3.6 <0.2 2.0~2.7 <=0.5 0.6~1.2 0.2~0.5       >=0.3   Brinell Hardness>210HB,
σb>200Mpa
4 Molybdenum Nickel Copper Gray Cast Iron 2.8~3.6 <0.2 1.8~2.4 <=0.3 0.5~1.0 0.2~0.5   0.3~0.6 Right amount   Right amount Brinell Hardness>210HB,
σb>235Mpa
5 Bainite Gray Cast Iron 2.7~3.3 <0.10 1.7~2.5 <=0.3 0.3~0.7 0.~0.5   Right amount Right amount   Right amount Brinell Hardness270~330HB,
σb>350Mpa
6 Nickel Copper Gray Cast Iron 2.8~3.7 <0.12 1.8~2.7 <=0.3 0.5~1.2 0.15~0.5   Right amount Right amount     Brinell Hardness>200HB,
σb>196Mpa





HIGH QUALITY CONFIMATION CYLINDER LINER:

1. Professional production line


2. More than 18 years experience in cylinder liner


3.Strict Quality Control


4.Certified: ISO9001:2008;ISO/TS16949:2009


5. Packing: Neutral or as your request


6. OEM welcomed




JTP/YJL MECHANICAL PARTS ADVANTAGES:



1.Factory Price,Factory Supply,Factory Genuine Quality


2.All earthmoving equipment,excavator engine parts supply


3.All quality level choosen,All price level choosen ,All brand packing choosen


4.Low MOQ,Sample delivery.


5.24 hours online feedback,email replay within 5hours.solve any problem might occurs.



OUR SERVICE:


1. We have more than 18 years in auto parts in Oversea market;


2. High quality with competitive price;


3. Sample order accepted;


4. Quick and safe delivery;


5. Honesty and trustworthiness in business;


6. Positive feedback from abroad and domestic market;


7. Standard packing or according to your specifiion requests;


8. Looking forward to deep cooperation with sincere partner and your satisfaction is our pleasure to maintain momentum going forward;



DESTRIPTION:




CUMMINS 6BT 3904166 6 101.0(FF) 200
        102.0(FF)
MAZAD R2(NEW) R2B6-10-311 4 85.0(SF) 163 PF
    R2B6-10-313   86.0(FF)
MAZAD RF/R2 R201-23-051 4 85.0(SF) 165
        86.0(FF)
MAZAD S2/B2200 1456-23-051 4 87.9(SF) 167
        88.9(FF)
MAZAD T2500 0636-10-311 4 87.9(SF) 189
    S501-23-051   88.9(FF)
MAZAD K2400   4 91.0(SF) 92.0(FF) 167.5
MAZAD E2700 0527-23-051 4 91.0(SF) 191
    V101-23-051   92.0(FF)
MAZAD HA/T3000 SE01-23-051 4 94.0(SF) 95.0(FF) 189
MAZAD SL/T3500 SL01-23-311 4 99.0(SF) 193.5 PF
    SL01-23-313   100.0(FF_
KIA KIA.M   4 80.0(FF) 127.3
KIA JS OK65A-10-311 4 94.5(FF) 168
KIA JT OK75A-10-311 4 101.5(FF) 165.5






Diesel Engine Cylinder Liner For HINO V26C Cylinder Liners And Sleeves 11467-3030 0



ENTERPRISE VISION:



To become the most respected and professional parts supplier in China and overseas.

To become an excellent auto-parts export enterprise with standardized operation, efficient service, and an active atmosphere.



ENTERPRISE TARGET:



To help customers attain success. Our customers’ satisfaction is our most accurate guide for action.

To help our staff attain success. Lianzhong supports its employees so that they enjoy their work and life.

To help our enterprise attain success. We find innovative ways for rapid and stable growth.



COMPANY VALUE VIEW:



Professionalism:

We focus on superior service, prompt action, and professional work.



Responsibility:

We bear all consequences with courage. Errors are opportunities to learn and gain experience. Our initiative to seek continual improvement fuels our success.



Passion:

We have passion and confidence in our ability to overcome any obstacle. We have a dream and focus all our efforts towards achieving it. We have endurance to conquer hardships and bear the results.



Service:

All our employees at Guangzhou Teikuko specialize in providing prompt, efficient, and friendly service to our customers. Every department is oriented for our customers’ needs, and our employees’ driving force is to continuously meet customer expectations.We hold our client relationships in highest regard.



Honesty:

Guangzhou Teikuko promises to perform our duties as a trusted enterprise and conduct our business with fairness and honestly. We strive to become a respected name in the global market.



FAQ:



1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.

2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.

3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.

4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.

5.How to buy with you?
You can use "Chat now!" or email to us.

6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.

7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.

8.What information should I let you know if I want to get a quotation?

To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

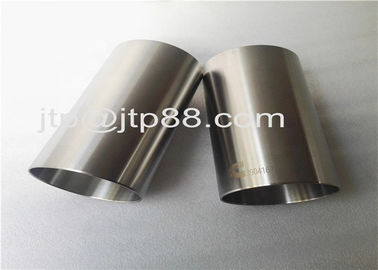

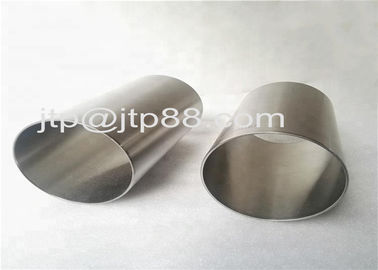

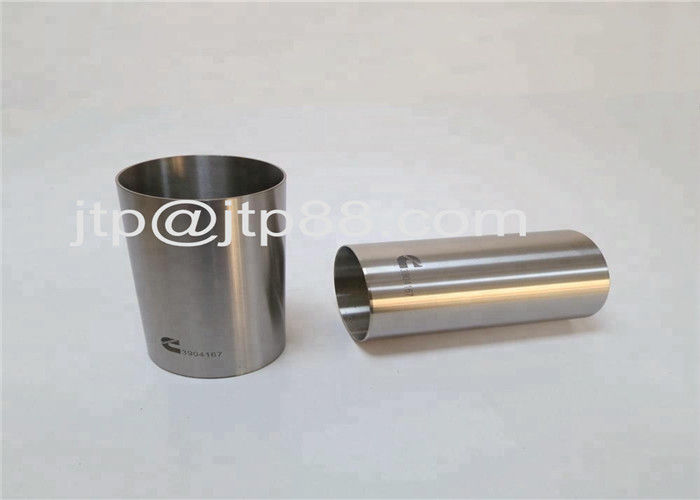

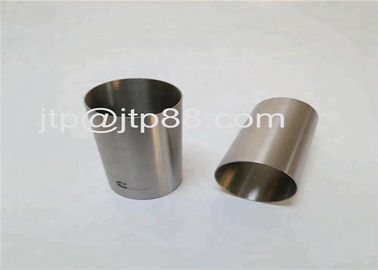

CYLINDER LINER PICTURE AS BELOW:


Diesel Engine Cylinder Liner For HINO V26C Cylinder Liners And Sleeves 11467-3030 1
