| Place of Origin: | China |
| Brand Name: | JTP |
| Model Number: | EB300 EB400 |
| Certifiion: | ISO9001:2008;ISO/TS16949:2009 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | Usually within one week after receive payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| Type: | Wet Cylinder Liner | Color: | White/ Black |
|---|---|---|---|
| Diameter: | 120.0mm | Total Length: | 288.0mm |
| Number Of Cylinder: | 6 | OEM: | 11467-1180 |
| Warranty: | 100000 Miles | Size: | STD |
| Car Make: | Fit For Hino | Quality: | High Quality |
| Material: | Aluminum Steel | Shipping: | By Sea, By Air, By Express |
| Cylinder Feature: | Shiny,Phosophate,Chrome | ||
| High Light: | cylinder liner sleeve,diesel engine cylinder liner |
||
White/ Black Cylinder liner for Hino EB300 EB400 Wet Cylinder liner 11467-1180
SPECIFIION:
| Product name | Cylinder liner |
| Engine model | EB300 |
| OEM No. | STD |
| Material | Boron alloy cast iron |
| Bore | STD |
| Surface Treatment | Chromium plated,Phosphated,Nitrided, Tinning etc. |
| MOQ | 1 sets for stocks,100-300 sets for production line |
| Packing | As per your request |
| Payment terms | T/T,Western Union |
| Delivery time | with 7days for stocks,30-45 days for prodcution line |
| Brand | JTP/YJL |
| Hot models for same car make | RD8,D6,RE8,RF8,NE6,TD27,PD6,PD6T,TD25,TD42,FE6T,FE6T-TA,ND6,E6,RH8,RG8,RF10,RE10,PF6 |
| Product range |
Piston / Piston Pin /Clips or Locks Piston Ring / Piston Ring Set / Piston Ring Kit / Ring Piston Cylinder Liner / Cylinder Sleeves Main Bearing / Con rod Bearing / Engine Bearing Set Cylinder Gasket / Head Gasket / Overhaul gasket kit / Gasket kit Cam Bush / Con rod Bush / Pin Bush / Thrust washer Valve / Valve seat / Valve guide / Valve seal Nozzle / Injectors / Injection nozzles / Plungers Cylinder liner kit / Piston liner kit / Liner set Liner seal / Seal kits / O-rings |
CYLINDER LINER PACKING:
JTP/YJL MECHANICAL PARTS ADVANTAGES:
1.Factory Price,Factory Supply,Factory Genuine Quality
2.All earthmoving equipment,excavator engine parts supply
3.All quality level choosen,All price level choosen ,All brand packing choosen
4.Low MOQ,Sample delivery.
5.24 hours online feedback,email replay within 5hours.solve any problem might occurs.
SURFACE TREATMENT:
CHROMED,PHOSPATED,POLISHED,ALUMINUM INCLUSIVE
| Principal Surface Treatment Processes | |
| DCP | Phosphating and chromium plating on jacket only |
| DC | Water jacket only is chromium plated |
| DPF | Water jacket only is phosphated |
| BCP | Phosphating and inner diameter is chromium |
| FF | Inner diameter is Full-Finished for dry type liner |
| SF | Inner diameter is Semi-Finished for dry type liner |
| IN WHITE | Without any special surface treatment |
| DCU | Outer diameter is cooper plated for dry type liner |
| PF | Phosphated all over |
| Air compression liner | |
| Chromed liner | |
| Liner |
|
| Chemical Ingredients Of Cylinder Liner(%) | |||||||||||||
| No. | Name of Material | C | S | Si | P | Mn | Cr | B | Cu | Ni | V+Ti | Mo | Mechanical Properties |
| 1 | Boron Cast Iron | 2.8~3.6 | <=0.12 | 2.0~2.7 | <=0.5 | 0.7~1.2 | 0.3~0.5 | 0.04~0.08 | Brinell Hardness>210HB, σb>=200Mpa |
||||
| 2 | Boron Copper Gray Cast Iron | 2.8~3.6 | <0.2 | 2.0~2.7 | <=0.5 | 0.7~1.2 | 0.2~0.5 | 0.04~0.08 | Right amount | Brinell Hardness>210HB, σb>=240Mpa |
|||
| 3 | Vanadium, Titanium Gray Cast Iron | 3.0~3.6 | <0.2 | 2.0~2.7 | <=0.5 | 0.6~1.2 | 0.2~0.5 | >=0.3 | Brinell Hardness>210HB, σb>200Mpa |
||||
| 4 | Molybdenum Nickel Copper Gray Cast Iron | 2.8~3.6 | <0.2 | 1.8~2.4 | <=0.3 | 0.5~1.0 | 0.2~0.5 | 0.3~0.6 | Right amount | Right amount | Brinell Hardness>210HB, σb>235Mpa |
||
| 5 | Bainite Gray Cast Iron | 2.7~3.3 | <0.10 | 1.7~2.5 | <=0.3 | 0.3~0.7 | 0.~0.5 | Right amount | Right amount | Right amount | Brinell Hardness270~330HB, σb>350Mpa |
||
| 6 | Nickel Copper Gray Cast Iron | 2.8~3.7 | <0.12 | 1.8~2.7 | <=0.3 | 0.5~1.2 | 0.15~0.5 | Right amount | Right amount | Brinell Hardness>200HB, σb>196Mpa |
|||
DESTRIPTION:
| TYPE | ENGINE MODEL | OEM REF | NO.CYL | CYL DIA METER | TOTAL LENGTH |
| HINO | DM100 | 11467-1440 | 6 | 90 | 199 |
| HINO | DQ100 | 11467-1480 | 6 | 92 | 199 |
| HINO | EC100 | 11467-1130 | 6 | 97 | 206 |
| HINO | DS70/DS90 | 11467-1280 | 6 | 105 | 261 |
| HINO | DS50 DS60/DS80 | 11467-1550 | 6 | 110 | 266 |
| HINO | EL100 | 11467-1240 | 6 | 116 | 222.5 |
| HINO | DK10(NEW) | 11467-1380 | 6 | 120 | 292 |
| HINO | EB300 EB400 | 11467-1180 | 6 | 120 | 288 |
| HINO | ED100 ER200 | 11467-1370 | 6 | 128 | 291 |
| HINO | EF300/EF350 | 11467-1071 | 8 | 132 | 248 |
| HINO | EF500 | 11467-1101 | 8 | 135 | 248 |
| HINO | EF550 | 11467-1690 | 8 | 135 | 248 |
| HINO | K13C | 11467-2090 | 6 | 135 | 267 |
| HINO | EK100 EK200/K13D | 11467-1910 11467-1960 | 6 | 137 | 267 |
| HINO | EF700 EF750/F17D | 11467-1091 11467-1900 | 8 | 137 | 248 |
| HINO | F17C/F17E | 11467-1702 | 8 | 139 | 248 |
| HINO | V22C | 11467-2130 | 10 | 139 | 248 |
OUR CYLINDER LINER FACTORY:
OUR SERVICE:
PROFESSIONALISM:
We focus on superior service, prompt action, and professional work.
RESPONSIBILITY:
We bear all consequences with courage. Errors are opportunities to learn and gain experience. Our initiative to seek continual improvement fuels our success.
PASSION:
We have passion and confidence in our ability to overcome any obstacle. We have a dream and focus all our efforts towards achieving it. We have endurance to conquer hardships and bear the results.
SERVICE:
All our employees at Guangzhou Teikuko specialize in providing prompt, efficient, and friendly service to our customers. Every department is oriented for our customers’ needs, and our employees’ driving force is to continuously meet customer expectations.We hold our client relationships in highest regard.
HONESTY:
Guangzhou Teikuko promises to perform our duties as a trusted enterprise and conduct our business with fairness and honestly. We strive to become a respected name in the global market.
FAQ:
1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.
2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.
3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.
4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.
5.How to buy with you?
You can use "Chat now!" or email to us.
6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.
7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.
8.What information should I let you know if I want to get a quotation?
To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

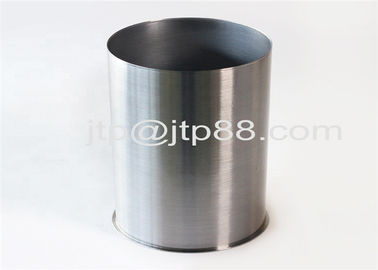

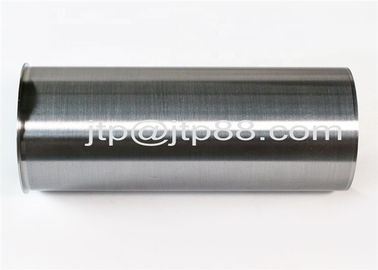

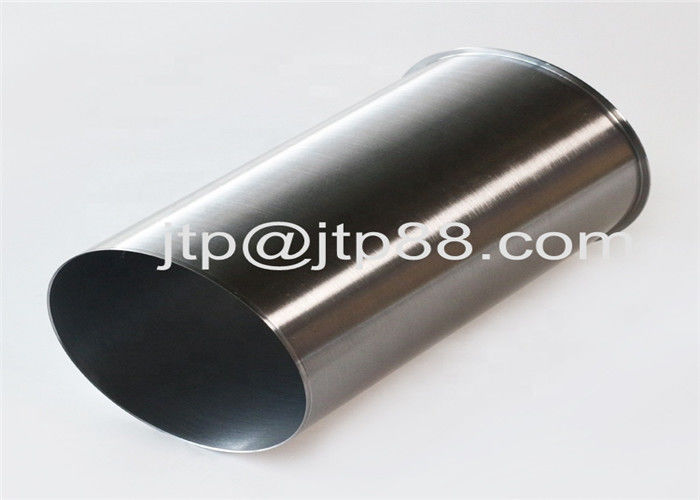

CYLINDER LINER PICTURE AS BELOW:
