Truck Auto Parts NT855 Tinned Alfin Cylinder Liner Aluminum Steel 6710-21-2210

Truck Auto Parts NT855 Tinned Alfin Cylinder Liner Aluminum Steel 6710-21-2210

  • Truck Auto Parts  NT855 Tinned Alfin Cylinder Liner Aluminum Steel 6710-21-2210
  • Truck Auto Parts  NT855 Tinned Alfin Cylinder Liner Aluminum Steel 6710-21-2210
  • Truck Auto Parts  NT855 Tinned Alfin Cylinder Liner Aluminum Steel 6710-21-2210
  • Truck Auto Parts  NT855 Tinned Alfin Cylinder Liner Aluminum Steel 6710-21-2210
Truck Auto Parts  NT855 Tinned Alfin Cylinder Liner Aluminum Steel 6710-21-2210
Product Details:
Place of Origin: China
Brand Name: JTP
Model Number: NT855
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with green sack for outer packing
Delivery Time: Usually within one week after receive payment
Payment Terms: T/T or western Union
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Type: Wet Cylinder Liner Color: White/ Black
Diameter: 139.7mm Total Length: 288.0mm
Number Of Cylinder: 6 OEM: 6710-21-2210
Warranty: 100000 Miles Size: STD
Car Make: Fit For Komatsu Quality: High Quality
Material: Aluminum Steel Cylinder Feature: Shiny,Phosophate,Chrome
Cylinder Liner Size: 95X140mm Piston Ring Size: 2.0+2.0+4.0mm
High Light:

cylinder liner sleeve

,

diesel engine cylinder liner

Truck Auto Parts Cylinder liner NT855 Tinned alfin Cylinder liner 6710-21-2210







SPECIFIION:



Item Name Cylinder Liner
Factory JTP
Engine Model NT855
Engine Type Diesel engine
Part number 3055099
Packing Wooden/Carton
MOQ 1
Availability 3-7 days





SURFACE TREATMENT:





Principal Surface Treatment Processes
DCP Phosphating and chromium plating on jacket only
DC Water jacket only is chromium plated
DPF Water jacket only is phosphated
BCP Phosphating and inner diameter is chromium
FF Inner diameter is Full-Finished for dry type liner
SF Inner diameter is Semi-Finished for dry type liner
IN WHITE Without any special surface treatment
DCU Outer diameter is cooper plated for dry type liner
PF Phosphated all over
  Air compression liner
  Chromed liner
  Liner






WET CYLINDER LINER:



The loion bores and particularly the running surfaces in the cylinder block must be cleaned carefully and they must



be undamaged. Corroded surfaces must be reworked (used flange liners and outer diameter oversize liners). As this is



done, make sure that the liners moves in easily and that they take up the correct position (the projecting length of the



liner must be in accordance with the regulations of the engine manufacture). After the liner has been installed with the



seat rings that belong to it.



(use slip agent), the cylinder diameter is to be checked particularly in the region of seal rings so as to determine whether



any deformation has been caused by pinched sealing rings. Using the wrong sealing rings (wrong diameter/ wrong



materials) can a narrowing of the cylinder which can lead to engine damage.The cooling system should be pressure



tested after the liners have been installed so as to determine whether there is any leakage before the engine is started.



SEMI-FINISH CYLINDER LINER:



The surface which supports the flange must be vertical to the loion bore and it must be sufficiently and evenly beveled. If the



liner flange is unevenly supported it can tear off. After the installation of the liner, which is only semi-finished in its inside



diameter, this cylinder boring is finely bored and then finished by honing until it has the specified dimensions or, in the box of

finely bored liner.It is only finished by honing (tolerance accordingly to DIN ISO H5). The surface of the liner must be flush to the



sealing surface of the cylinder block, if necessary,the block surface and the liner must be finished by surface grinding.



FINISH CYLINDER LINER:



Before the liner is installed, the loion bore in the cylinder block must be cleaned carefully and must be checked to



ensure the accuracy of the dimensions and to determine whether any distortion has occurred. Out of center or damaged



bores can be reworked for the installation of oversize liners. It is important for this that the loing bore is cylindrical, as



this is what determines the geometrical shape of the inside of the pressed in, thin walled liner.





AIR COOLING CYLINDER LINER:



5)In accordance with the instructions from the engine manufacture, cast iron cylinders or light alloy cylinders are used.



Light alloy cylinders are separated into several groups due to the small installation clearance in the standard cylinder dimensions.





OTHER CYLINDER LINER:





Truck Auto Parts  NT855 Tinned Alfin Cylinder Liner Aluminum Steel 6710-21-2210 0Truck Auto Parts  NT855 Tinned Alfin Cylinder Liner Aluminum Steel 6710-21-2210 1





DESTRIPTION:



KOMATS 4D94 6144-21-2211 4 94 181
KOMATS 4D105/S4D105 6130-22-2310 4 105 233
KOMATS 6D105/S6D105 6137-21-2210 6136-21-2210 4/6 105 223
KOMATS 4D120/S4D120 6110-21-2212 4 120 293
KOMATS 6D265 6150-21-2221 6 125 256.5
KOMATS 4D130/S4D130 6115-21-2211 4 130 293
KOMATS NT855 6710-21-2210 6 5.5000'' 288
KOMATS 6D155 6128-21-2215 6128-21-2214 6 155 327
KOMATS NH220 6610-21-2213 6610-21-2212 6 5.125'' 303.5
CUMMINS 6CT 3919937 38024030 6 114 9.382''
CUMMINS 6CT 3907792 6 114 9.382''
CUMMINS V6-155 V8-210 3022530 6/8 4.625'' 6.522''
CUMMINS KS909   6 125 241
CUMMINS NT855series VT,VTA VTR1710 3055099 6/12 139.7 288
CUMMINS HN Series 184400 6   303.5
CUMMINS K Series   6   12.07''
NISSAN ED33 11012-T9000 4 100 191
NISSAN FD6/ED6 11012-Z5001 11012-Z5573 6 100 212
NISSAN FD46 11012-03T001 4 108 212
NISSAN UD3/UD4 UD5/UD6 11012-90006 3/4/5/6 110 281.5
NISSAN RD8/RD10 11012-97025 11012-97063 8/10 135 243
NISSAN RE8/RE10 11012-97118 11012-97161 8/10 135 238
NISSAN RF8 11012-97164 11012-97171 8 138 238.3
NISSAN RG8   8 142 236





CYLINDER LINER PACKING:



1. Neutral packing


2. JTP packing


3. YJL packing



4.Customized packing



5. Your brand packing



Truck Auto Parts  NT855 Tinned Alfin Cylinder Liner Aluminum Steel 6710-21-2210 2



OUR CYLINDER LINER FACTORY:





We are a professional R&D and production manufacturer in marine engine parts, manifold, piston and cylinder liners. Our products have various industrial appliions in marine engine, automotive, engineering vehicle, agricultural vehicle and locomotive. We can make most cylinder kits according to customers’ special need.


We have been certified to ISO9001:2008;ISO/TS16949:2009, continuously invests in process and quality improvement. We are always committed to improve all aspects of our business, from people, equipment to the entire production programs. Our willing is to always provide the best quality piston and cylinder liner for your high-performance engines.





Truck Auto Parts  NT855 Tinned Alfin Cylinder Liner Aluminum Steel 6710-21-2210 3





FAQ:





1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.

2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.

3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.

4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.

5.How to buy with you?
You can use "Chat now!" or email to us.

6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.

7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.

8.What information should I let you know if I want to get a quotation?

To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

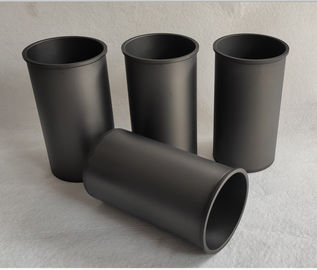

CYLINDER LINER PICTURE AS BELOW:


Truck Auto Parts  NT855 Tinned Alfin Cylinder Liner Aluminum Steel 6710-21-2210 4
